• Carriage Assembly for the HP Designjet T770, T1200, T790, T1300, T2300 Printers (CR647-67025, CH538-67044, CH538-40074) - Refurbished
1 1

Wide Image Solutions

Carriage Assembly for the HP Designjet T770, T1200, T790, T1300, T2300 Printers (CR647-67025, CH538-67044, CH538-40074) - Refurbished

$278.95
$278.95
Shipping calculated at checkout.
    Carriage Assembly for the HP Designjet T770, T1200, T790, T1300, T2300 Printers (CR647-67025, CH538-67044, CH538-40074) - Refurbished

    Tech Specs

    Description

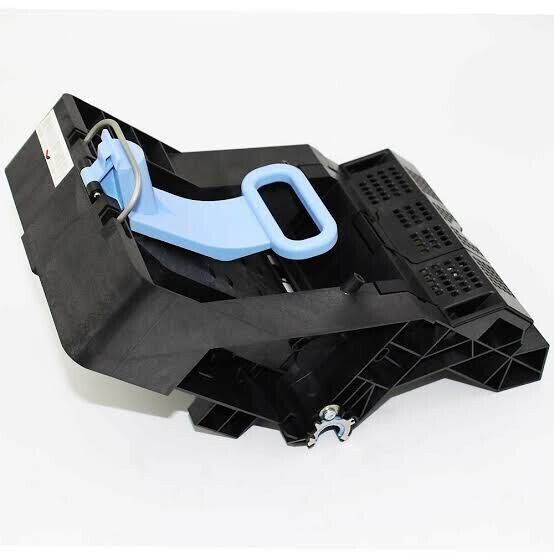

    The carriage holds the print heads and the delivery end of the ink tube assembly.  Assembly includes:

    • Carriage PCA,
    • Carriage Flex Cables
    • Line Sensor
    • Encoder Sensor
    • Cutter

    System error codes related to the carriage assembly:

    • Error 02.1:YZ
    • Error 55:YZ
    • Error 87:YZ (also caused by faulty encoder strip)

    Compatibility:

    • HP DesignJet t1200 44-in printer
    • HP DesignJet t770 44-in printer
    • HP DesignJet t1200 44-in postscript version printer
    • HP DesignJet t770 44-in printer with hard disk
    • HP DesignJet T2300 eMultifunction Printer
    • HP DesignJet t2300 postscript eMFP printer
    • HP DesignJet t2300 PS eMFP with encrypted hd Printer
    • HP DesignJet T770 24-in Printer
    • HP DesignJet t770 24-in printer with hard disk
    • HP DesignJet t1200 hd multifunction printer
    • HP DesignJet T790 24-in ePrinter
    • HP DesignJet t790 24-in postscript eprinter
    • HP DesignJet T790 44-in ePrinter
    • HP DesignJet t790 44-in postscript eprinter
    • HP DesignJet t1300 44-in eprinter
    • and more...
