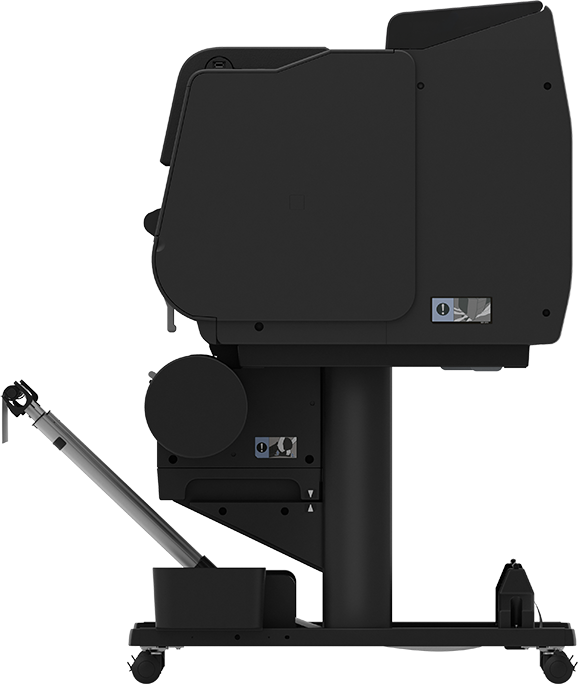

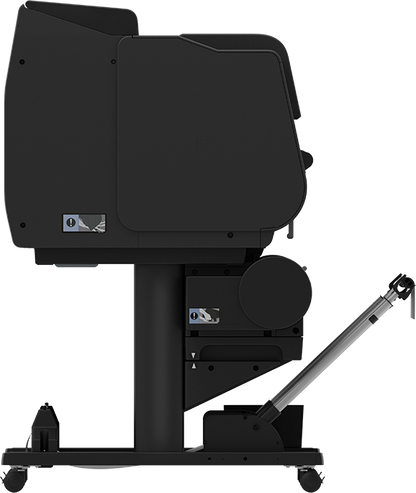

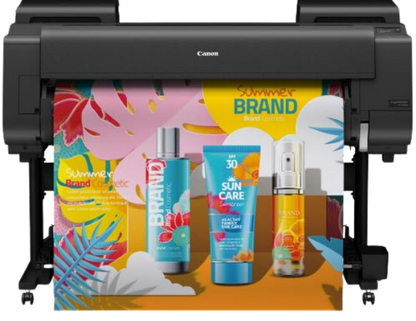

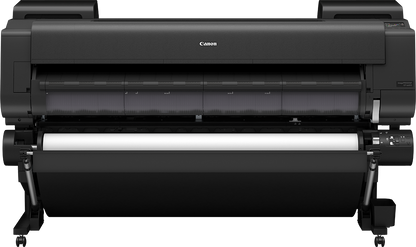

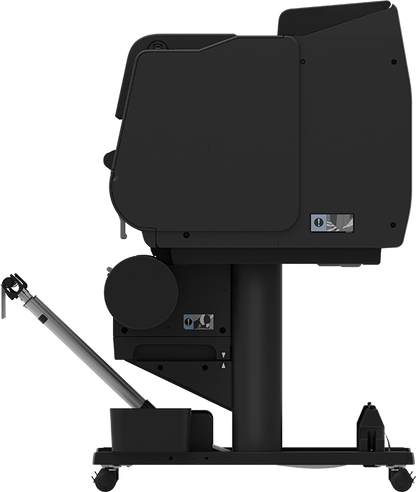

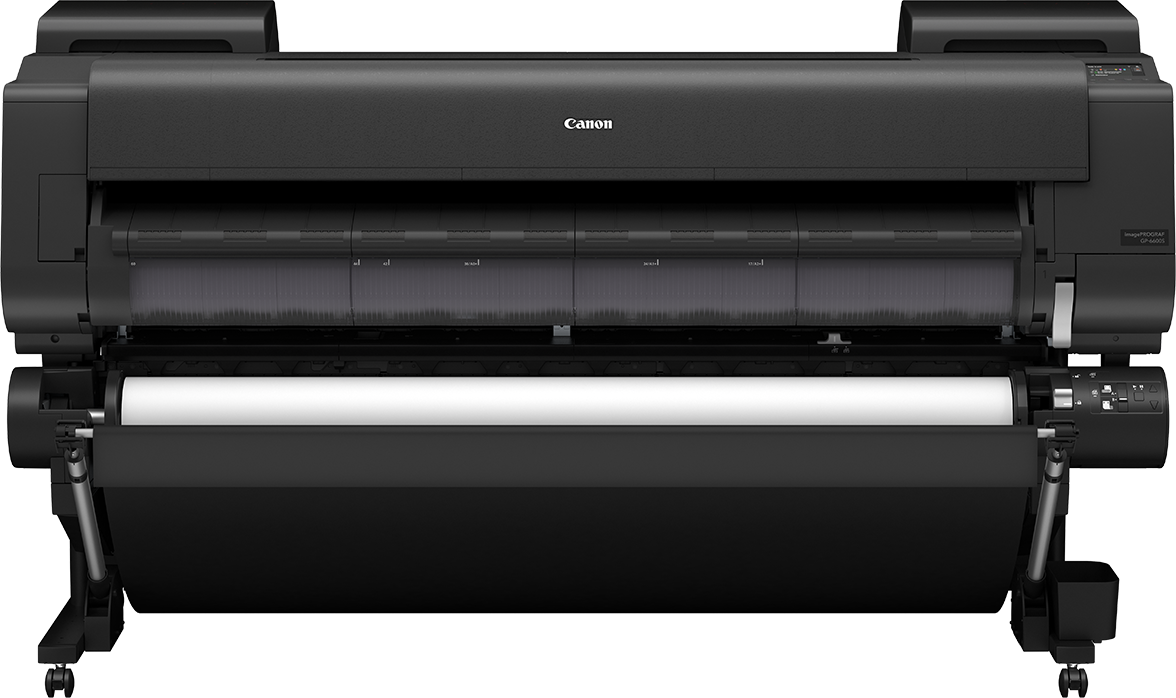

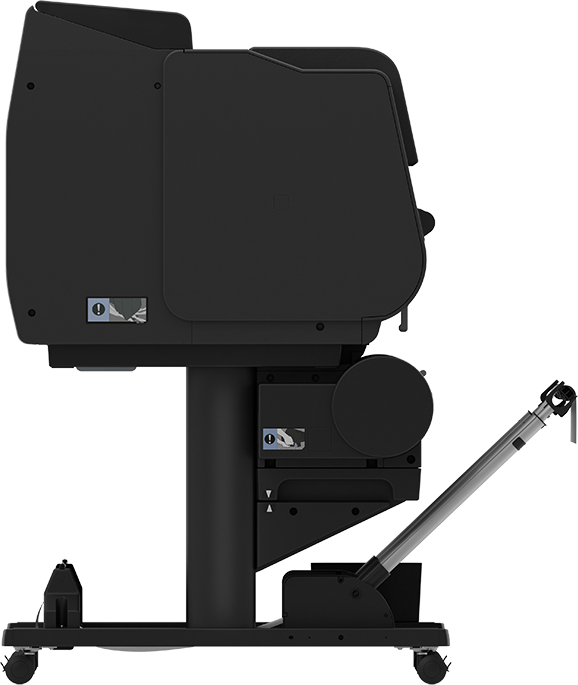

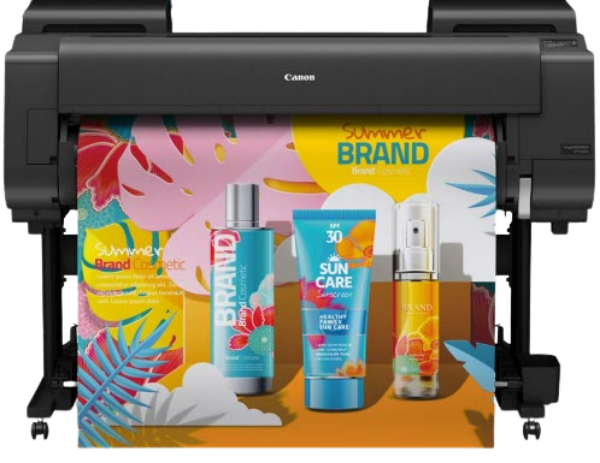

Canon imagePROGRAF GP-6600S 60" Large Format Printer - 6415C006AB / New

Regular price: $11,795.00
Regular price
Sale price: $11,795.00

Shipping calculated at checkout.

Description

The Canon imagePROGRAF 60" GP-6600S large-format printer, with the newly developed** 7-Color LUCIA PRO II Ink System, is built for bringing production signage, advertisements, and businesses to the next level. The GP S Series with orange ink is designed to achieve bold and robust outputs with high light resistance for longer-term preservation of prints, improved black density with a wider dark-color gamut range, and high scratch resistance on prints. The seven-color ink system used in these printers includes orange ink and can reach 96% of PANTONE™ FORMULA GUIDE Solid Coated.* These powerful production printing systems include a multi-function roll unit, intelligent media handling, color calibration, sub-ink tank system, internal light preview system, translucent media & ink tank covers, and more. Registered as EPEAT Gold and as ENERGY STAR certified, this series is replacing EPS packaging materials with cardboard packaging. Available for this printer is a host of creative and workflow software solutions to help with your everyday business needs such as Professional Print & Layout, PosterArtist (Online and Lite versions), Free Layout Plus, Direct Print Plus, Accounting Manager, and more!

Specifications

Printer Head

PF-10

Number of Nozzles

(MBK/C/M/Y/O: 1,536 nozzles x2 BK/GY: 1,536 nozzls x1): 18,432 nozzles

Droplet Size

Minimum 4 Picoliters per color

Ink Type

MBK, BK, C, M, Y, GY, O

Ink Tank

Shipped with printer: 330 ML of each color
Replacement: 160 ml PFI-3100 (BK, C, M, Y, GY), 160 ml PFI-2100 (MBK, O), 330 ml PFI-3300 (BK, C, M, Y, GY), 330 ml PFI-2300 (MBK, O), 700 ml PFI-3700 (BK, C, M, Y, GY), 700 ml PFI-2700 (MBK, O)

Printer RAM

Standard Memory: 3 GB
Hard Disk: 500 GB

Media Feed

Front-Loading Roll Feed: Two* Rolls, Front Output

Media Width

Roll Feed: 6” - 60” (152.4 mm - 1,524 mm)
Cut Sheet: 6” - 60” (152.4 mm - 1,524 mm)

Media Cutter

Automatic horizontal cutting (Rotary cutter): standard

Media Thickness

0.002” - 0.03” (0.07 mm - 0.8 mm)

Media Core Sizes

2” Core Standard. 2”/3” Core Roll Holder Set (RH2-66)

Maximum Roll Outer Diameter

6.7” or less (170 mm or less)

Media Output

Catch Basket

Printing Software Utilities

Accounting Manager, Device Management Console, Direct Print Plus, Free Layout Plus, imagePROGRAF Printer Driver for Windows®/Mac®, Media Configuration Tool, PosterArtist, Canon Print Service, Professional Print & Layout, Quick Utility Toolbox

Operating System

Windows 7 (32/64-bit), Windows 8.1 (32/64-bit), Windows 10 (32/64-bit), Windows 11 (64-bit), Windows Server 2008R2, 2012, 2012R2, 2016, 2019, 2022 (64-bit), MacOS v10.15.7- MacOS 13

Print Language

Printer: SGRaster (Swift Graphic Raster), PDF, JPEG

Interface

Standard (Built-in): USB 2.0 Hi-Speed, 10/100/1000Base-T/TX, Wireless LAN (IEEE 802.11 b/g/n) ■

Power Supply

AC 100 – 240V (50 – 60 Hz)

Power Consumption

Max: Approx 94W
Standby: Approx. 1.7W
Power Off: Approx 0.1W

Certifications

Environmental Certifications
ENERGY STAR® (Worldwide), EPEAT Gold

Operational Environment

Temperature: 59 – 86 °F (15 – 30 °C)
Relative Humidity: 10 – 80% (Non Condensation)

Printer Dimensions (W x D x H) and Weight

(with stand and basket open) 78.7” x 38.7” x 46”, 372.6 lbs

Package Dimensions (W x D x H) and Weight

(main unit with pallet) 87.7” x 36.0” x 40.4”, 480.6 lbs
Multifunction Roll Unit (physically strapped to printer) 84.0” x 22.1” x 18.1”, 92.6 lbs

Options

• 2”/3” Roll Holder Set (RH2-66)
User Replaceable Items
• Ink Tank: PFI-3100 (160 ml)/PFI-3300 (330 ml)/PFI-3700 (700 ml) BK, C, M, Y, GY,
160 ml PFI-2100/330 ml PFI-2300/700 ml PFI-2700: MBK, O
• Print Head (PF-10)
• Maintenance Cartridge (MC-30)
• Cutter Blade (CT-07)
