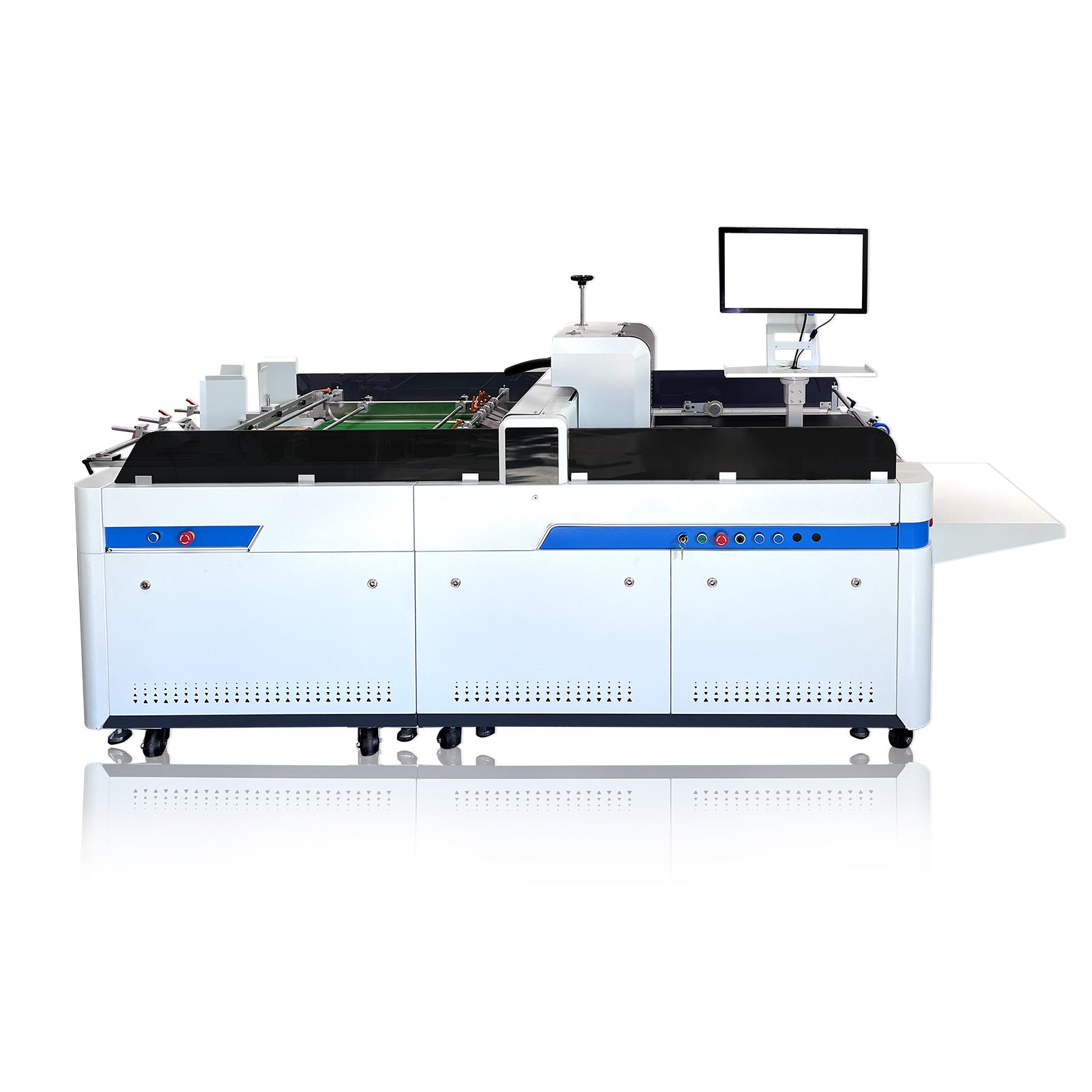

CALCA Water-Based Digital Packaging & Label Printer – For Kraft Paper, Corrugated Board, Rice Paper

Warehouse
$47,578.70
$47,578.70
Shipping calculated at checkout.

    Features

    Solving Traditional Printing Pain Points

    • No plate making, no MOQ – Supports small orders, single pieces, and personalized customization.
    • Single-color, multi-color & gradient printing – Delivers a wide range of vibrant colors with excellent color rendering.
    • Easy to use – Simple and flexible operation, no complicated procedures required.

    Key Technologies Behind CALCA Printer

    01. Wide Color Gamut

    Uses red, yellow, blue, and black as base colors to support both single-color and multi-color gradient printing. With extensive color gamut coverage, it achieves a high degree of color reproduction, ensuring fine, accurate, and vivid print results. The visual and print quality reaches an excellent level, meeting the needs of users who pursue the ultimate color expression.

    02. Intelligent Feeding System

    The friction feeding system reduces the tedious process of manual feeding, improving work efficiency and making the printing process faster and smoother. The feeding angle can be adjusted according to different printing materials, ensuring more consistent and reliable media feeding.

    03. Automatic Deskew System

    Effectively prevents offset and misalignment during the printing process, ensuring accurate registration and consistent print quality.

    Technical Highlights: 1200 dpi high precision ensures sharp text for small labels. Circulating ink supply prevents nozzle clogging. Adjustable speed (0–40 m/min) balances quality and throughput.

    PRODUCT FEATURES

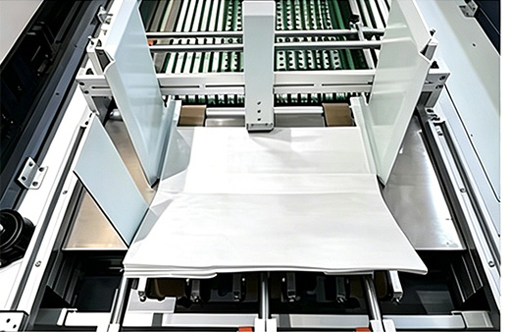

    Elevating & Unloading Table
    Adjustable lifting table for automatic collection and easy unloading of finished paper.

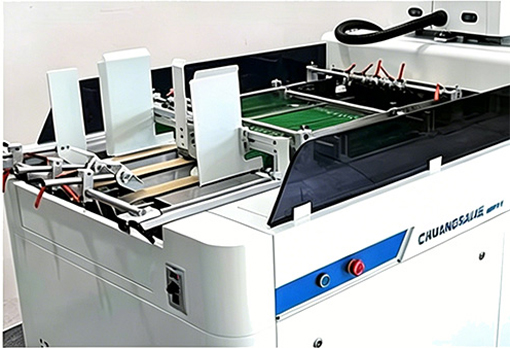

    Intelligent Auto Feeder
    Precision separation feeding prevents double feeding and paper jams, ensuring stable continuous production.

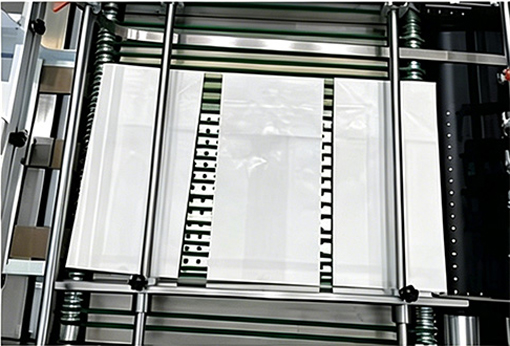

    Auto-Correction Conveyor Belt
    Zero-pressure substrate fixation with automatic media deviation correction to prevent printing offset.
    Intelligent Counting & Stacking System
    Auto-counting and automatic neat stacking of finished prints – eliminates manual sorting.

    Applications

    For Kraft Paper, Corrugated Board, Rice Paper

    Specifications

    Parameter Value
    Model Name CALCA-BZP-SX001
    Print Head HP FI-1000 Printbar(HP PN 9U502A) x 1pc
    Print Width 210 mm / 297 mm / 420 mm (8.3 in / 11.7 in / 16.5 in)
    Feed Width 80–500 mm (3.1–19.7 in)
    Feed Thickness 80–600 g (paper weight range)
    Feed Length 50–300 mm (2.0–11.8 in), customizable
    Printing Accuracy 1200 dpi
    Print Speed 0–40 m/min (0–131 ft/min)
    Ink Type Eco-friendly water-based ink
    Color Configuration CMYK
    Ink Supply Circulating ink supply
    Printer Dimensions (L x W x H) 3000 x 1000 x 1560 mm (118.1 x 39.4 x 61.4 in)
    Net Weight 575 kg (1268 lbs)
    Power Supply 220V, 50/60 Hz
    Operating Environment Temperature: 15–35°C (59–95°F), Relative Humidity: 20%–80%
    Total Power Consumption 4.0 kW
    Operating System Windows 7 / Windows 10
    Data Interface Ethernet / Wi-Fi
    Data Transmission USB 3.0 (compatible with USB 2.0)
    Supported File Formats BMP, PDF, TIFF, JPG, and more
    Compatible Media Kraft paper, corrugated paper, rice paper, cotton paper, and other absorbent media
