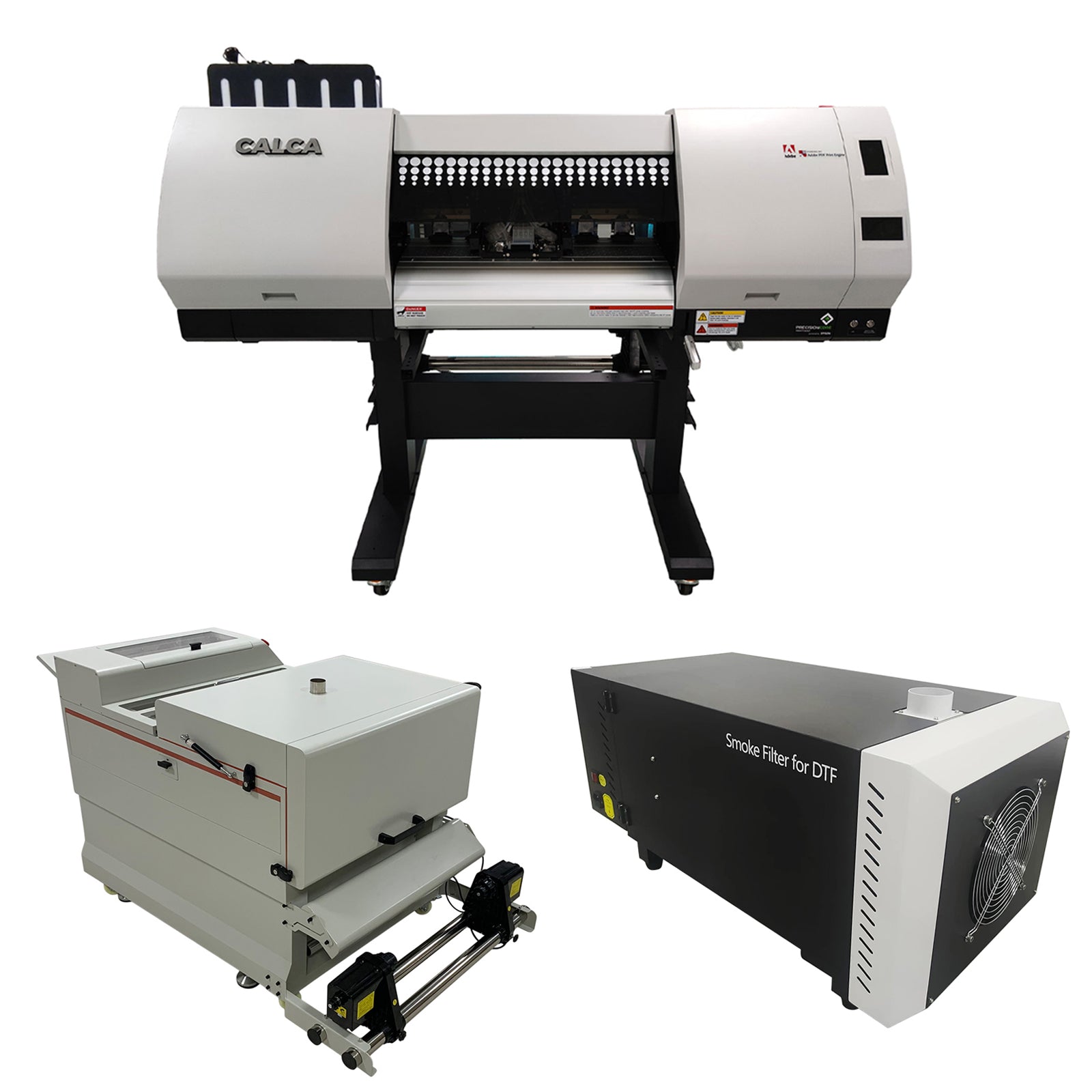

CALCA Ultra PRO II 24-inch DTF Printer & Shaker Bundle with Fume Extractor Filter

Original price $18,999.00 - Original price $18,999.00
Original price
$18,999.00
$18,999.00 - $18,999.00
Current price $18,999.00

CALCA Ultra PRO II 24inch (600mm) DTF Printer (Direct to Film Printer) with Dual Epson I3200-A1 Printheads

CALCA Ultra series DTF printer is built for production workshops & factories.
This DTF printer leads the development of technology and durable products in the DTF markets, drive performance and efficiency in DTF products.

Features
√ CALCA control system, the leading brand from independent R&D team.
√ Self-developed control system and RIP Software.
√ Touch screen control panel makes everything easier.
√ Ultra-high stability, from unified development, not patchwork.
√ Processional, Obtain the Adobe PDF Print Engine certificate, maximum efficiency performance, control, automate and optimize full-gamut rendering.
√ Perfect combination of RIP and printing management in same software.
√ Durable housing, high efficiency output.
√ Dual-head technology, designed for high volume production.
A dual print-head system prints colors in perfect sequence to achieve maximum life and vibrancy. The first Print Head lays down a mix of CMYK colors, while the second print head prints a perfect white underbase on top of the colors, ensuring you don’t see any white ink.

Technical Specs:

24in (620mm) maximum print width
Dual Epson I3200-A1 Printheads (CMYK - WWWW)
1.8 Liter per color ink bottle capacity
4 Pass 6 Pass and 8 Pass Print Resolution
Printing Speed: 4 pass: 12m²/ h; 6 pass: 8m²/ h; 8 pass: 6m²/ h
Printing Resolution: 720 x 1200dpi; 7200 x 1800dpi; 720 x 2400dpi (4Pass, 6Pass, 8Pass)
Printing Software: DTF Fairy RIP Software
Control System: CALCA Control System
print head cleaning: Automatic
Rewinding Function: Automatic
Printer Size: 69.5in x 27.6in x 53.3in (1765mm x 700mm x 1355mm)
Printer Weight: 396lbs (180kg)
Packing Size: 73.6in x 39.4in x 28.7in (1870mm x 1000mm x 730mm)
Gross Weight: 440.9lbs (200kg)

Requirements:
• Working Power Supply: AC110V, 50HZ / 60HZ, 1 phase.
• Current: 11A, 1200W
• Operating System: XP / Win7 / Win10
• Interface: Gigabit Ethernet
• Temperature control set to 20-35°C (68°F-95°F) and 45% - 65% humidity

CALCA PLUS 24in automatic DTF powder shaker and dryer for 2 head high speed DTF printers.
CALCA DTF powder shaker and dryer unit can handle up to 24in wide DTF film.
This all in one dtf powder shaker unit takes over by evenly spreading, then melting the needed amount of adhesive material directly onto your printed image, saving time, effort, and cost.
Applicable Medium: Nylon, Chemical Fiber, Cotton, Leather, Swimsuit, Diving Suit, PVC, EVA, etc.

Specifications:
CALCA Brand: USA registered
Maximum Shake Powder Width: 600mm (23.6inches)
Functions: Shake powder control, dusting control, PID setting of curing temperature
Heating Element: Quartz infrared heat drying tube
Rewinding Function: Automatic induction rewinding
Heating and Drying Mode: Front guide plate heating, upper drying curing
Cooling Mode: 4 fan air cooling (Single row)
Machine Size: 63.8in x 35.8in x 39in (1620mm x 910mm x 992mm)
Powder Shaker and Dryer Weight: 396.8lbs (180kg)
Packaging Size: 55.9in x 45.3in x 44.5in (1420mm x 1150mm x 1130mm)
Gross Weight: 507lbs (230kg)
Powder spreading structure: The motor drives the brush to rotate to brush the hot melt powder out of the powder box.
Powder shaking device: the motor drives the powder shaking lever to beat the film to clean up excess hot melt powder.

Requirements:
Working Power Supply: AC220V, 50hz / 60hz, 1 phase.
Current: 21A, 4500W
With CALCA DTF film, power and Inks, you can easily and quickly create custom t-shirts and apparel.

Remarks:
CALCA DTF powder shakers do not have automatic powder recycling function, in order to avoid hot melt powder moisture.

Features:
√ Longer folding dryer, more energy efficient.
√ Compact size / small footprint.
√ Touch screen control panel makes everything easier.
√ Infrared drying and heating improves and protects color reproduction.
√ Absorption conveying platform secures the printing material to avoid bulging, run-offs, adhesion and media waste.
With the advancement in DTF technology, there is no denying that DTF is taking the printing industry by storm. It is quickly becoming one of the most popular technologies for textile printing compared to traditional printing methods.

CALCA Brand New Electrolytic Universal Fume Extractor Filter 330m³/h for DTF Powder Shakers and Sublimation Heater
CALCA Electrolytic smoke lampblack filter is designed for the machine need smoke discharge like dtf shaker or sublimation color system. It can be matched with various powder shakers and sublimation color fixing machines to complete the extraction and filtration of oil fume.
Effectively eliminate and filter the oil fume in the drying process, improve the quality of processed products, and provide a clean and smoke-free working environment.

Specifications:
Rated Voltage: AC220V ± 5%
Rated Current: 1A
Rated Power: 215W
Max air amount: 330m³/h
Negative Pressure: 350pa
Internal Air Inlet and Outlet Diameter: Φ59mm
Filter Effect: Up to 0.5μm 99.9%
Noise: ≤ 64db
Machine Size: 32.7in x 17.5in x 16.5in (830mm x 445mm x 420mm)
Machine Weight: 70.5lbs (32kg)
Package Size: 35in x 18.5in x 17.3in (890mm x 470mm x 440mm)
Gross Weight: 72.8lbs (33kg)

Features:
• Electrolytic filtration technology: No consumables, no cost, worry-free after sales.
• Brushless motor
• No change in suction power for several years of continuous use
