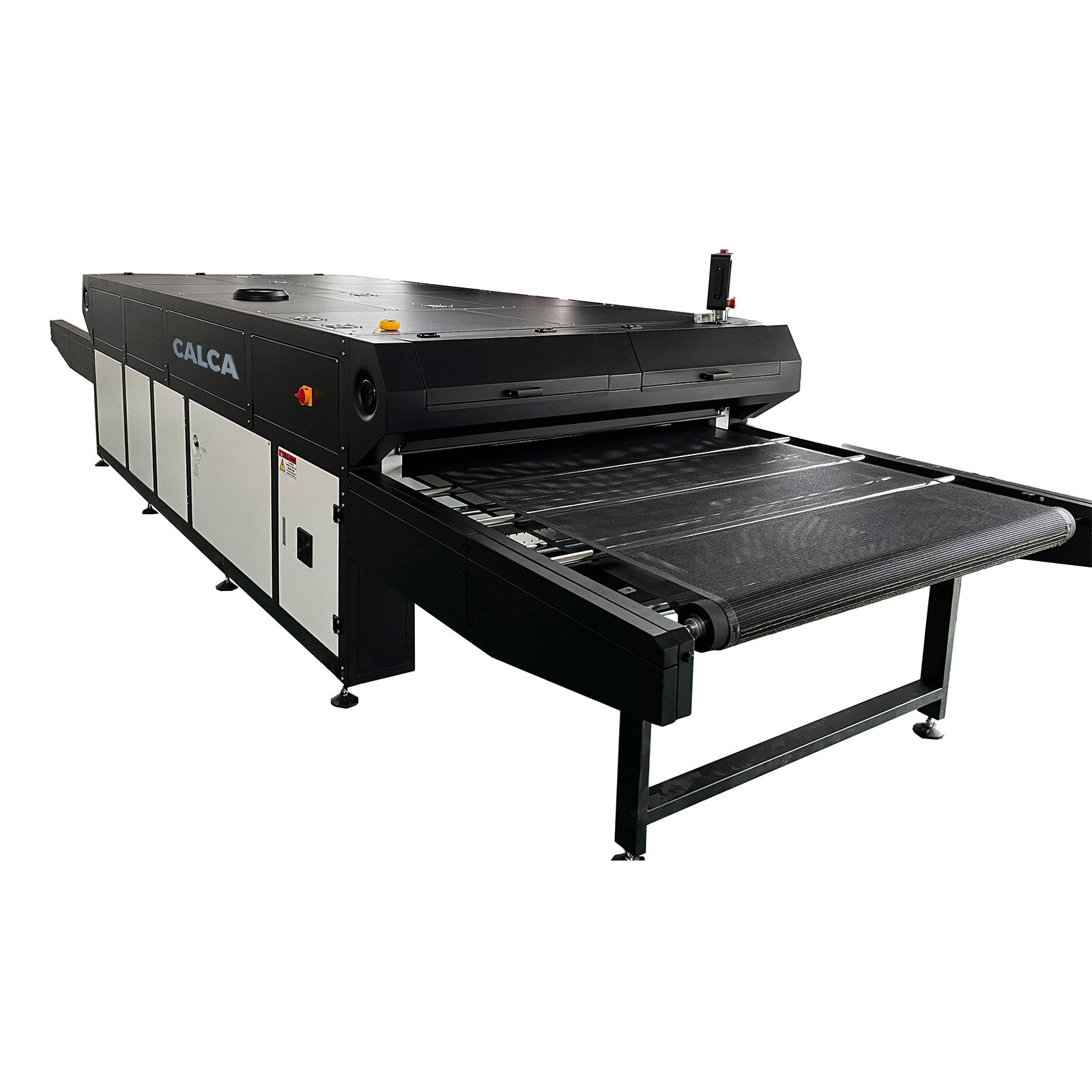

CALCA Textile Conveyor Dryer for Digital & Screen Printed Garments

$57,978.70
$57,978.70
Shipping calculated at checkout.

    Description

    The CALCA Tunnel Dryer is a high-efficiency, cost-effective solution for drying all types of screen-printing and digital inks (water-based, solvent-based, etc.). Equipped with inlet/outlet extraction hoods, it ensures a cleaner workspace while delivering consistent performance.

    Features

    1. User-Friendly Touchscreen: Sleek, high-end interface for intelligent and flexible operation.
    2. Energy-Saving System: Reduces operational costs to maximize your profitability.
    3. Smoke Absorption at Inlet/Outlet: Ensures zero air pollution in the workspace.
    4. Adjustable Fume Emission: Facilitates rapid heating; bidirectional air circulation technology for optimal heat distribution.
    5. Premium Thermal Insulation: High-quality materials minimize heat loss.

    Specifications

    Electrical Supply  380V, 50/60hz
    Belt Speed  60 secs > 12 mins
    Belt Width  1800mm (71”)
    Time from ambient temp to 160°C (320°F)  Approx 15 mins
    Exhaust Diameter  200mm (8”)
    Infeed/Outfeed  1500mm (59”)
    Oven Length  5000mm (197”)
    Product Dimension  8000mm x 2266mm x 1335mm (315” x 89.2” x 52.6”)
    Net Weight  1650Kgs(3637.6lb)
    Package Dimension  5800mm x 2300mm x 1900mm (228.4” x 91” x 75”)
    Gross Weight  1800Kgs(3968lb)
