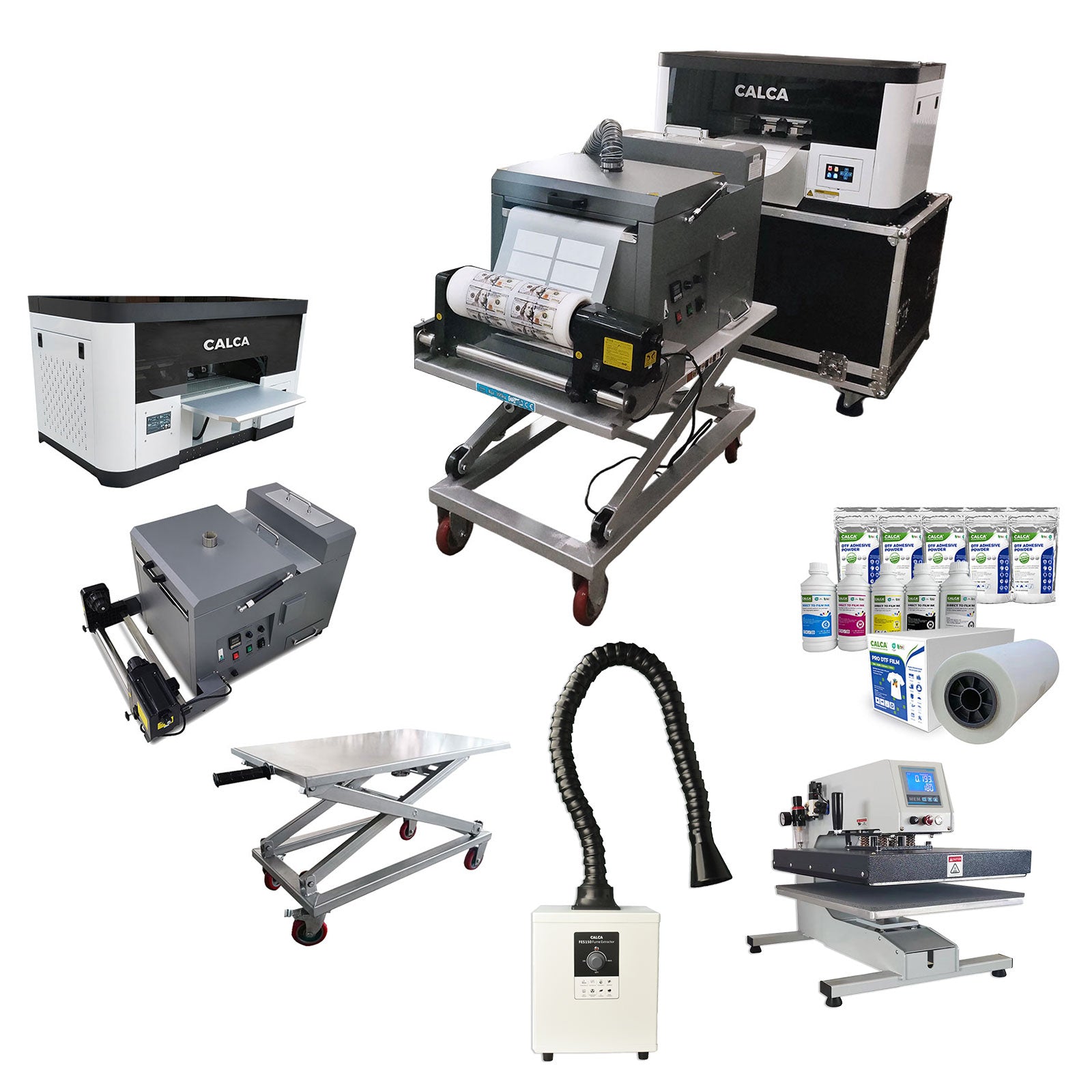

CALCA Star 13in DTF Printing System Bundle With All The Necessary Supplies
CALCA Star 13in DTF Printing Solution Starter Sets, get everything you need for a DTF printing workflow in one purchase.

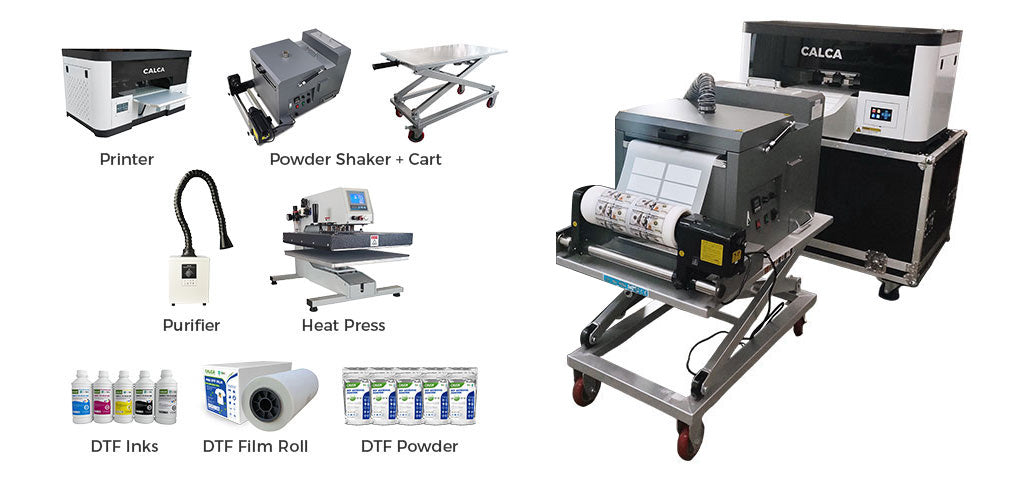

What's Includes:
1 x CALCA Star 13in (330mm) Easy DTF Printer With Dual Epson F1080-A1 (XP-600) Printheads, flight case package (Can be used to place printers)
1 x CALCA 13.4in (340mm) Automatic TPU Powder Shaker and Dryer
1 x CALCA 23.6in x 37.4in Height Adjustable (17in - 40in) Platform Cart, for DTF powder shaker
1 x CALCA 150W Fume Extractor Filter and Air Purifier with 3-Stage Filtration System
1 x MEM 16" x 20" High Quality Pneumatic Swing Away Heat Press
CALCA DTF Inks CMYK color, 1L/color
1L x CALCA White Ink
11lbs x CALCA Medium Adhesive Powder, White
2 Roll x CALCA 11.8in x 328FT DTF transfer film Hot Peel
CALCA Advanced DTF System & Supplies --- Perfect production line combination of store for the US market.
* Advanced DTF System: Self-developed CALCA® control system & DTF Fairy RIP Software, united stability and efficiency. Applied for CALCA DTF printer, powder shaker and dryer, oven, film cutter and air filter.
* Advanced DTF Supplies: We researched and tested all DTF consumables to ensure the products we offer are reliable and productive. CALCA offerings for DTF printing will be inks, film and powder.
* Having an automated workflow — Even if in part—is essential to stay competitive.
|
Specifications
|
|
|
DTF-STXP-13H2-US
|
Ink Sort: CMYK+WW Ink System, Textile Pigment Ink, 500ml per color ink bottle capacity
Thickness: 0.06in to 0.24in (1.5mm to 6mm) Adjustable Dual Epson F1080-A1 (XP-600) printheads Maximum Printing Width: 13in (330mm) Maximum Roll Weight: 396lbs (20kg) Media Heater: Pre / Rear Heater (Can be controlled separately) Printing Speed: 6 pass: 5m²/h; 8 pass: 3m²/h Printing Resolution: 720X1080dpi, 720X1440dpi Printing Software: CALCA DTF Fairy RIP Software (CADLINK is optional) Print Head Cleaning: Automatic Package: Custom-made tough and rugged flight case, which offers the best protection for your DTF printer. Reusable: Display your equipment. Machine Size: 980mm x 640mm x 520mm (38.6in x 25in x 20.5in) Machine Weight: 90kg (198lbs) Packing Size: 1100mm x 850mm x 670mm (43.3in x 33.4in x 26.4in) Gross Weight: 120kg (265lbs) Requirements: • Working Power Supply: AC110V, 50HZ / 60HZ, 1 phase. • Current: 11A, 1200W • Operating System: Win7 / Win10 • Temperature control set to 20-35°C (68°F-95°F) and 35 - 65% humidity • Relative Humidity: 40-60% |
|
DTF-PSM-A400-US
|
Maximum Shake Powder Width: 340mm (13.4inches)
Functions: Shake powder control, dusting control, PID setting of curing temperature Heating and Drying Function: 4pcs Quartz infrared heat drying tube Rewinding Function: Automatic induction rewinding Heating Mode: Upper drying heating Machine Size: 35.7in x 21.3in x 22.6in (907mm x 542mm x 574mm) Powder Shaker and Dryer Weight: 79.2lbs (36kg) Packaging Size: 29.5in x 23.4in x 23.2in (750mm x 595mm x 590mm) Gross Weight: 110lbs (50kg) Requirements: Working Power Supply: AC110V, 50hz / 60hz, 1 phase. Current: 15A, 1650W |
|
CS-FEF-CC150-US
|
Rated Voltage: AC110V ± 5%
Rated Current: 1.6A Rated Power: 180W Filtration efficiency: 0.3um, 95% Max air amount: 278m³/h Port: Φ75mm Flange Noise: ≤ 55dB Machine Size: 11in x 9.4in x 12.4in (280mm x 240mm x 315mm) Machine Weight: 26.5lbs (12kg) Package Size: 21.7in x 13.4in x 14.2in (550mm x 340mm x 360mm) Gross Weight: 28.2lbs (12.8kg) |
|
HTM-SG300-6095-US
|
Platform Size:23.6in x 37.4in
Load Capacity: 660lbs / 300kg Min. Height: 17in / 44cm Max. Height: 40in / 100cm Packing Size: 39.4in x 24.4in x 17.7in / 100cm x 62cm x 45cm Net Weight: 132 lbs / 60kg Gross Weight: 154lbs / 70kg |
|
HTM-MEM-TQ1-4050-US
|
Voltage and power :220V/2700W/13A or 110V /1800W/17A
Check voltage at back side of the head Time Range: 0-999sec. Max. Temp. 500°F /260°C Cylinder distance:2in/5cm Heat plate size: 16"x 20"(40cm x 50cm) Dimensions(LxWxH): 30"x17"x21"( 77cm x 42cm x 54cm ) Shipping Dimensions(LxWxH): 33"x22"x22" (84cm x 55cm x 56cm) Shipping Weight:165lbs(75kg) Max. press thickness: 2in(5cm) |
|
DTF-KIT-01-US
|
CALCA DTF Inks CMYK color, 1L each color; 1L x CALCA White Ink
11lbs x CALCA Medium Adhesive Powder, White 2 Roll x CALCA 11.8in x 328FT DTF Transfer Film Hot Peel |
