Experts on Printing Quality

test image

CALCA ProUltra24 IV 24inch (600mm) DTF Printer (Direct to Film Printer) with 4 Epson I3200-A1 Printheads

Original price $19,999.00 - Original price $19,999.00
Original price
$19,999.00
$19,999.00 - $19,999.00
Current price $19,999.00

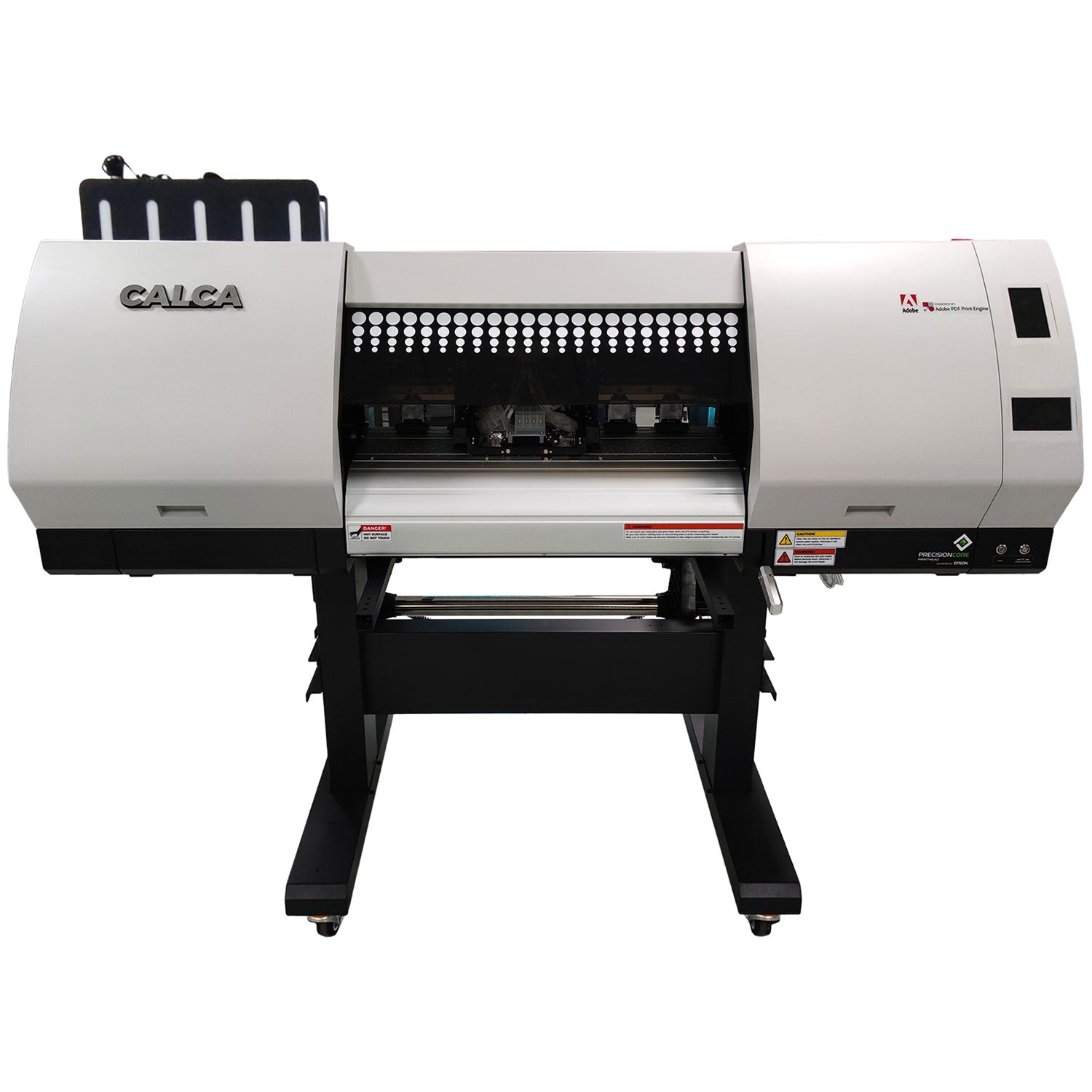

CALCA ProUltra24 IV 24inch (600mm) DTF Printer (Direct to Film Printer) with 4 Epson I3200-A1 Printheads

CALCA Ultra series DTF printer is built for production workshops & factories.
This DTF printer leads the development of technology and durable products in the DTF markets, drive performance and efficiency in DTF products.

Features
√ CALCA control system, the leading brand from independent R&D team.
√ Self-developed control system and RIP Software.
√ Touch screen control panel makes everything easier.
√ Ultra-high stability, from unified development, not patchwork.
√ Processional, Obtain the Adobe PDF Print Engine certificate, maximum efficiency performance, control, automate and optimize full-gamut rendering.
√ Perfect combination of RIP and printing management in same software.
√ Durable housing, high efficiency output.
√ Four-head technology, designed for high volume production.
A dual print-head system prints colors in perfect sequence to achieve maximum life and vibrancy. The first Print Head lays down a mix of CMYK colors, while the second print head prints a perfect white underbase on top of the colors, ensuring you don’t see any white ink.

Technical Specs:
24in (620mm) maximum print width
4 Epson I3200-A1 Printheads (CMYK - WWWW)
Ink Sort: Textile Pigment Ink
1.8 Liter per color ink bottle capacity
Media: PET Film
Thickness: 0.06in to 0.24in (1.5mm to 6mm) Adjustable
Maximum Roll Weight: 396lbs (20kg)
Media Heater: Pre / Rear Heater (Can be controlled separately)
4 Pass 6 Pass and 8 Pass Print Resolution
Printing Speed: 4 pass: 22m²/ h; 6 pass: 18m²/ h; 8 pass: 12m²/ h
Printing Resolution: 720 x 1200dpi; 720 x 1800dpi; 720 x 2400dpi (4Pass, 6Pass, 8Pass)
Interface: Gigabit Ethernet Port
Printing Software: DTF Fairy RIP Software
Control System: CALCA Control System
print head cleaning: Automatic
Rewinding Function: Automatic
Printer Size: 69.5in x 27.6in x 53.3in (1765mm x 700mm x 1355mm)
Printer Weight: 396lbs (180kg)
Packing Size: 73.6in x 39.4in x 28.7in (1870mm x 1000mm x 730mm)
Gross Weight: 440.9lbs (200kg)

Requirements:
• Working Power Supply: AC110V/220V, 50HZ / 60HZ, 1 phase.
• Current: 11A/5.5A, 1200W
• Operating System: XP / Win7 / Win10
• Interface: Gigabit Ethernet
• Temperature control set to 20-35°C (68°F-95°F) and 45% - 65% humidity
