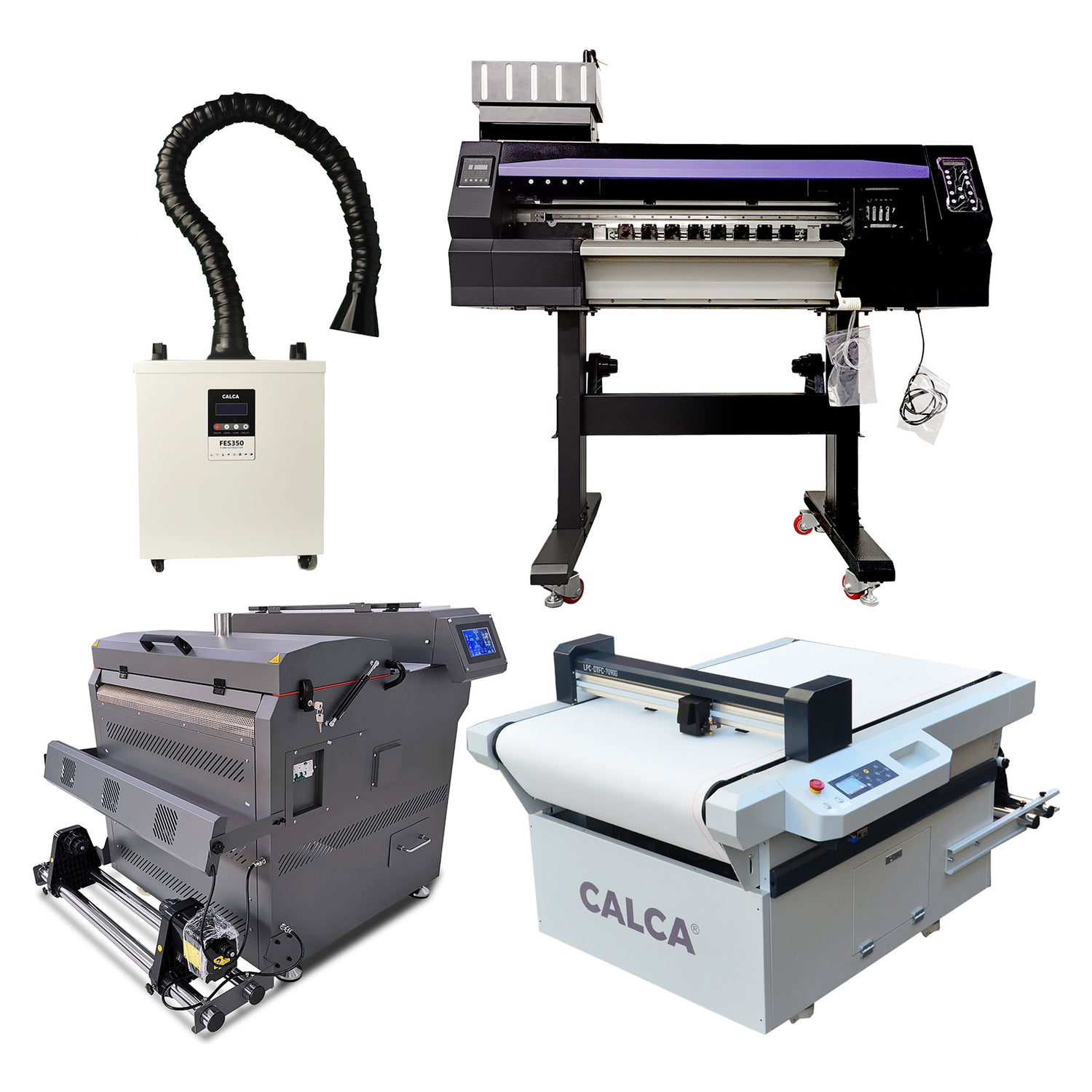

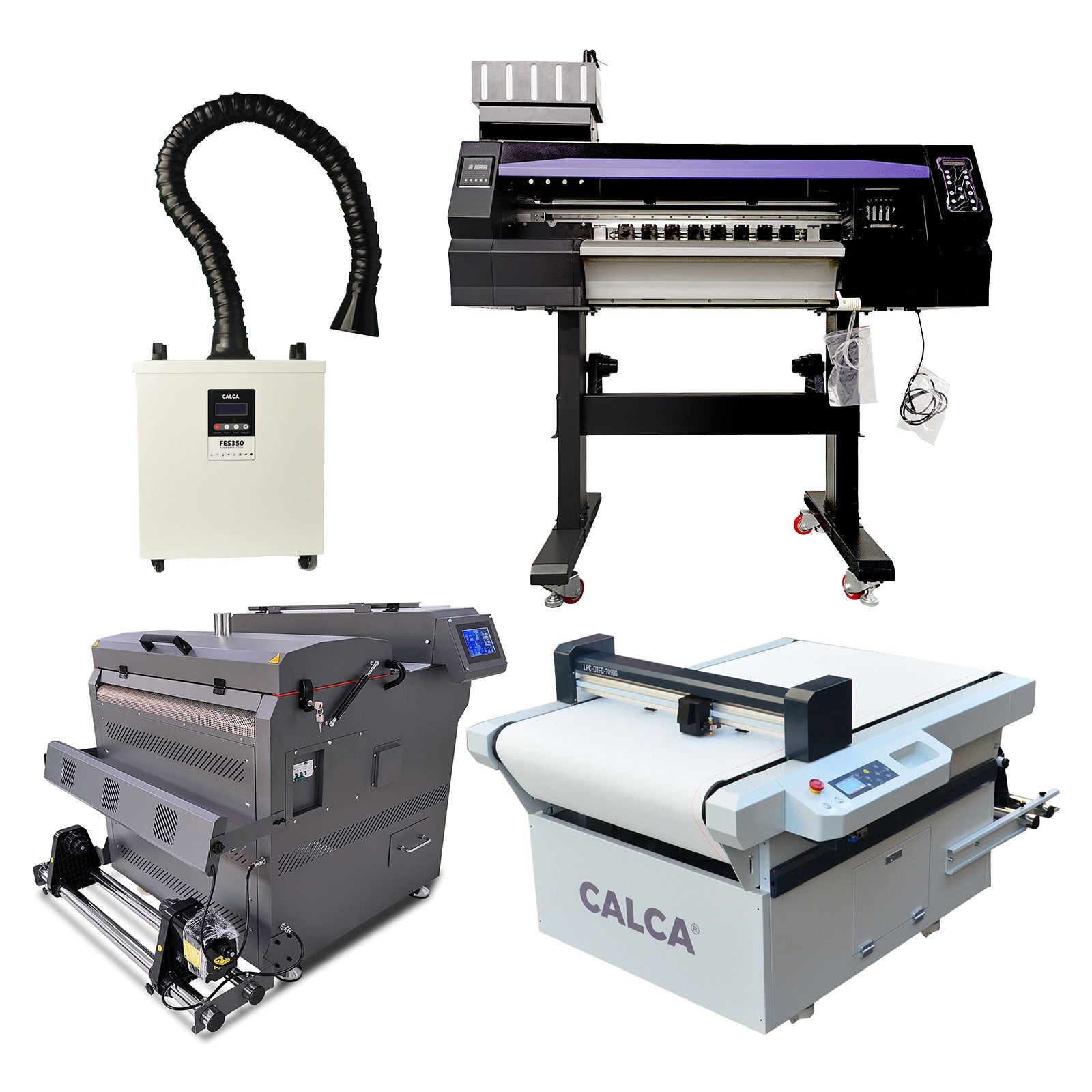

CALCA Prime 24inch DTF Printing System (Dual Epson I3200-A1 Heads, Compact Powder Shaker and Dryer)

$32,410.30
$32,410.30
Shipping calculated at checkout.

    CALCA 24in (600mm) Entry Level Automatic TPU Adhesive Powder Shaker and Dryer Machine

    Description

    With a touch screen display controller, simple to use.
    Infrared drying and heating improves and protects color reproduction.
    With a mesh belt platform (non-transportable, without suction function) secures the printing material to avoid bulging, run-offs, adhesion and media waste.
    CALCA DTF powder shaker and dryer unit can handle up to 24in wide DTF film.
    With the advancement in DTF technology, there is no denying that DTF is taking the printing industry by storm. It is quickly becoming one of the most popular technologies for textile printing compared to traditional printing methods.
    This all in one DTF powder shaker unit takes over by evenly spreading, then melting the needed amount of adhesive material directly onto your printed image, saving time, effort, and cost.
    Applicable Medium: Nylon, Chemical Fiber, Cotton, Leather, Swimsuit, Diving Suit, PVC, EVA, etc.

    Specifications:
    CALCA Brand: USA registered
    Maximum Shake Powder Width: 600mm (23.6inches)
    Functions: Shake powder control, dusting control, PID setting of curing temperature
    Heating Element: Quartz infrared heat drying tube
    Rewinding Function: Automatic induction rewinding
    Heating and Drying Mode: Front guide plate heating, upper drying curing
    Cooling Mode: 3 fan air cooling (Single row)
    Machine Size: 35.4in x 33.1in x 42.6in (900mm x 840mm x 1082mm)
    Machine Weight: 280lbs (140kg)
    Packaging Size: 47.2in x 40.9in x 44.9in (1200mm x 1040mm x 1140mm)
    Gross Weight: 396lbs (180kg)

    Requirements:
    Working Power Supply: AC110V, 50hz / 60hz, 1 phase.
    Current: 28A, 3000W
    With CALCA DTF film, powder and Inks, you can easily and quickly create custom t-shirts and apparel.
    Powder spreading structure: The motor drives the brush to rotate to brush the hot melt powder out of the powder box.
    Powder shaking device: the motor drives the powder shaking lever to beat the film to clean up excess hot melt powder.
    Remarks:
    CALCA DTF powder shakers do not have automatic powder recycling function, in order to avoid hot melt powder moisture.

    Remarks:
    CALCA DTF powder shakers do not have automatic powder recycling function, in order to avoid hot melt powder moisture.

    Features:
    · With a warming inlet platform, automatic powder dispenser, paddle to remove excess powder, 4 bulb tunnel dryer and roll up at the end.
    · This all in one unit takes over by evenly spreading, then melting the needed amount of adhesive material directly onto your printed image, saving time, effort, and cost.
    · Infrared drying and heating improves and protects color reproduction.
    · Customized powder recycling drawer, increases effectiveness.
    · Shake powder control, dusting control, PID setting of curing temperature.
    · Automatic powder feeding, evenly spreading powder.

    Prime 24inch (600mm) DTF Printer (Direct to Film Printer) with Dual Epson I3200-A1 Printheads

    Specifications:

    Item Model Prime 24inch (600mm) DTF Printer
    Available Print Head & Quantity Dual Epson I3200-A1 Printheads
    Max Printing Width 600mm
    Ink System Ink Type Pigment Ink
    Ink Color CMYK+W
    Ink Volume 1500ml
    Printing Mode
    (CMYK)    		 Mode Printing Speed (meter)
    High Speed Mode 7.65㎡/h
    Production Mode 4.8㎡/h
    Fabric Type cotton. linen.etc
    Working Condition Humidity 40%－85% （without condensate）
    Temperature 15 ℃－30 ℃
    Computer requirements Operating System Windows 7,Windows10 or Later Versions
    Hardware CPU:Intel core i5H↑Memory:8G↑/ Graphics Discrete
    Interface 1000MB Network Interface
    RIP Software DTF Master RIP Software
    Language Chinese/English
    Image format PNG / JPG / TIFF
    Rated Voltage AC110V, 50HZ / 60HZ, 1 phase.
    Power 9A, 1000W
    Rated Current 5A(220V)/9A(110V)
    Product size/Weight 1560L*700W*1360H(mm) /129KG
    Packing size/Weight 1890L*840W*760H(mm) /179KG

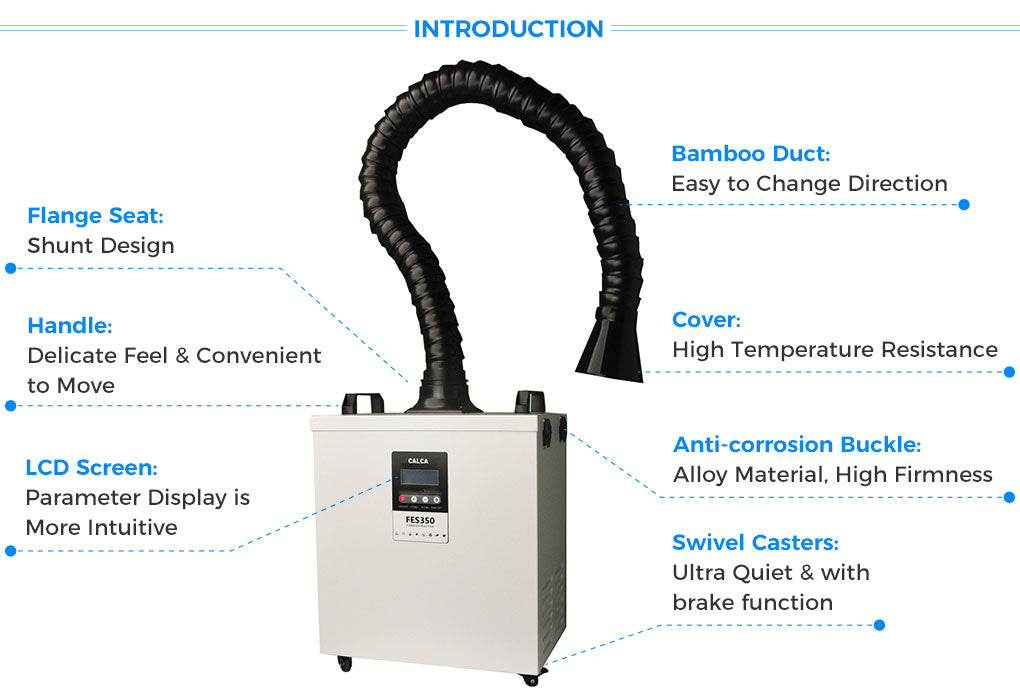

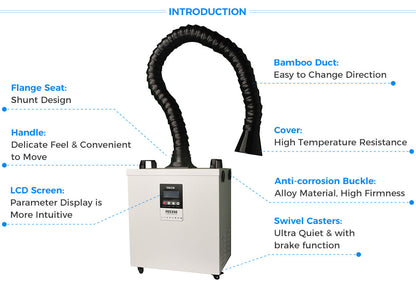

    CALCA 350W Fume Extractor Filter and Air Purifier with 4-Stage Filtration System for DTF Powder Shakers, Laser and Soldering

    Applications: be used for kinds of DTF powder shakers.

    Specifications:
    Rated Voltage: AC110V ± 5%
    Rated Current: 3.2A
    Rated Power: 350W
    Filtration efficiency: 0.3um, 99.97%
    Max air amount: 430m³/h
    Port: Φ75mm Flange
    Noise: ≤ 55dB
    Machine Size: 16.1in x 10.2in x 17.7in (410mm x 260mm x 450mm)
    Machine Weight: 37.5lbs (17kg)
    Package Size: 20.9in x 13.8in x 29.5in (530mm x 350mm x 750mm)
    Gross Weight: 49.6lbs (22.5kg)
    Warranty: 1-year warranty on this Fume Extractor.

    Package Includes:
    • 1 x Fume Extractor
    • 1 x Bamboo Duct
    • 4 x 1st Layer Pre-filter Cotton
    • 1 x Nozzle (Square)
    • 1 x Nozzle (Circle)
    • 1 x Power cord
    • 1 x User manual

    CALCA 30" x 36" Auto Fed Flatbed Digital Cutter Roll Cutter for DTF Printing Film (6090G)

    Flatbed cutter with conveyor feeding, a special purpose auto fed flatbed digital cutter for DTF industry with features optimized according to characters of material applied in the DTF field.
    Super easy installation, one-key operation and high efficiency make CALCA 6090F a right-hand man for DTF, Heat transfer apparel industries.

    Compatible with Cadlink, AutoCAD, CorelDRAW, and CALCA DTF Fairy RIP Software (Print-to-cut).
    Batch cutting, guarantee of high efficiency.

    Gang sheets are widely used in the production of custom dtf heat transfers – both screen printed and digitally manufactured. CALCA roll CNC Cutter can maximize your efficiency and minimize the cost.

    Spare Part Package includes:
    1set x User manual
    2pcs x Blade holder
    6pcs x Blade
    1set x Allen wrench
    1pcs x Power Cable
    1pcs x USB Cable
    1pcs x U Disk
    1pcs x SignWorkPro
    1pcs x Fan with silencer

    Application:
    Used for fraffic signs industry, vehicle decoration, automotive aftermarket, sign makers, packaging, apparel signing, shoes designing, bags designing, composite industry, offset printing, samples making , POP displays, and more.
    It is an efficient solution of perforation cutting, half cutting, creasing, marking, etc.
