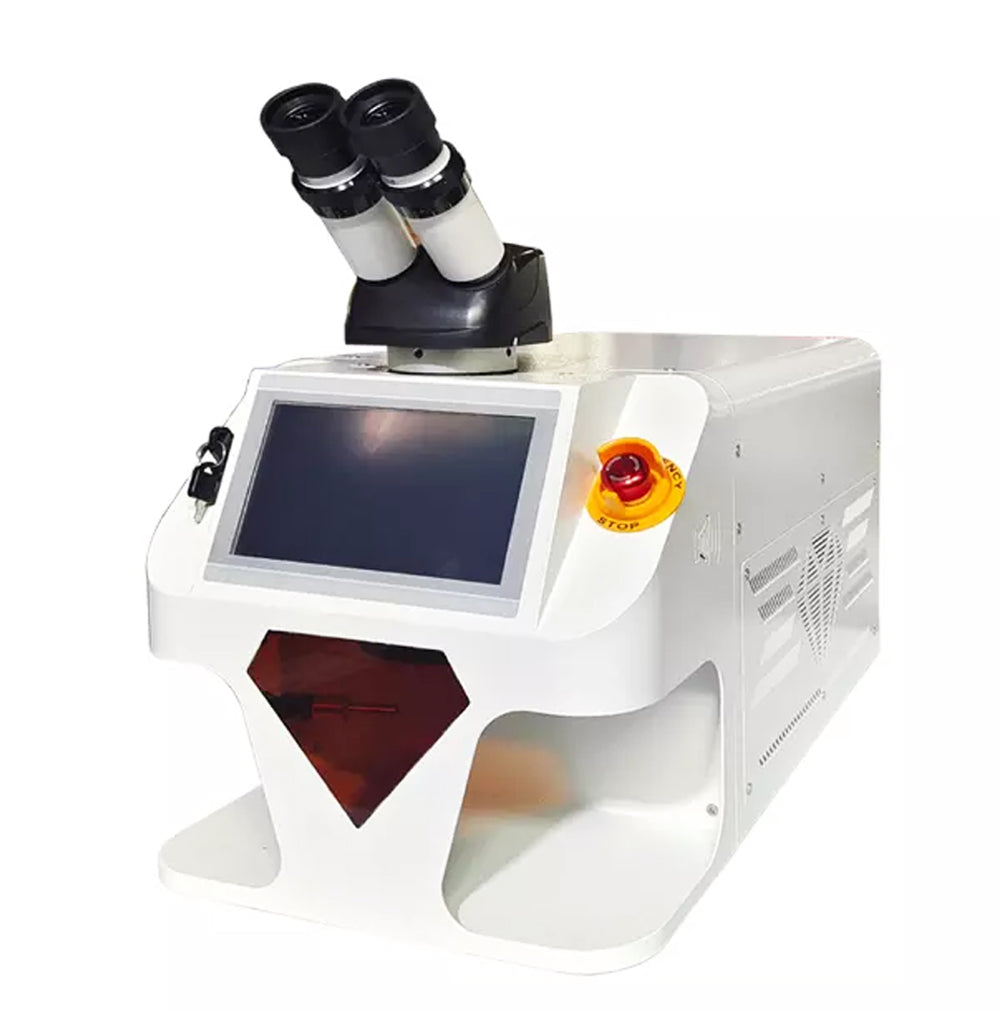

CALCA Portable 100W desktop jewelry laser welding machine

Original price $4,599.00 - Original price $4,599.00
Original price
$4,599.00 - $4,599.00
Current price $4,599.00

1.Energy, pulse width, frequency and focus can be adjusted within a wide range to achieve different welding effects
2.Ceramic reflector used in the laser pump chamber is imported, which is corrosion resistant, high temperature resistant, high electrical/optical conversion.
3.World-leading automatic light shielding system is employed to remove harmful lighting on eyes during operation
4.24-hour continuous operation, with stable operating performance
5.Free of maintenance within 10000 hours
6.Personalized design in compliance with ergonomics principles
7.The machine is small and delicate, portable and convenient.

This machine mainly used to weld gold, silver, platinum, stainless steel material, and other all kinds of jewelries. Also can be used to weld glasses, repair artifical tooth, etc.


Machine model LWM-CY-W100ZM
Laser wavelength 1064nm
Maximum laser power 100W
Maximum laser pulse energy 60J
Pump source Single lamp
Pulse Width 0.1-15ms
Pulse frequency 1-10Hz Adjustable
Aiming and positioning Microscope + camera system
Adapt to welding Welding and repairing all kinds of jewelry
Host power consumption ≤2KW
Electricity demand 110V±5% , 60HZ
Cooling method Air cooled

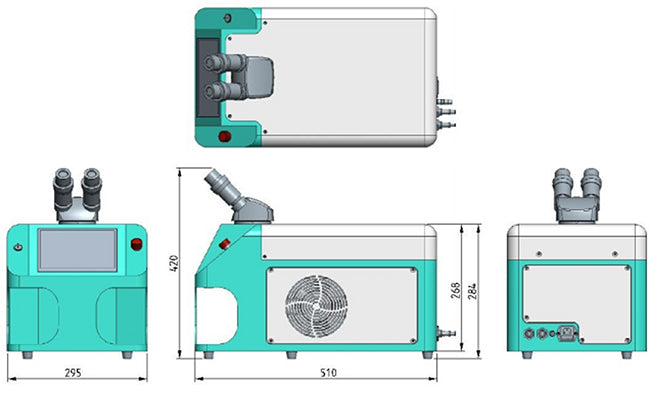

Mainframe Dimensions (length * width* height) 510×295×420mm
