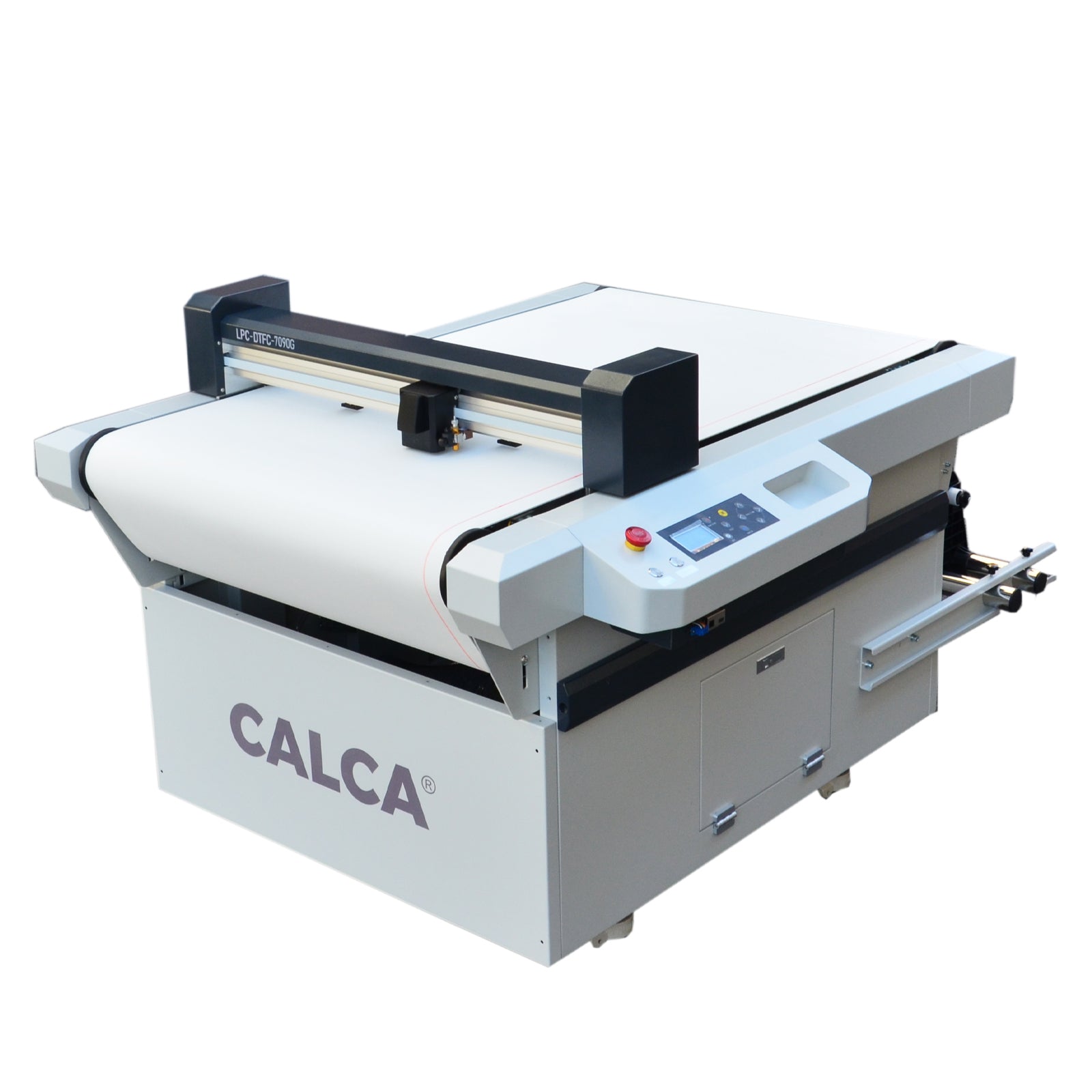

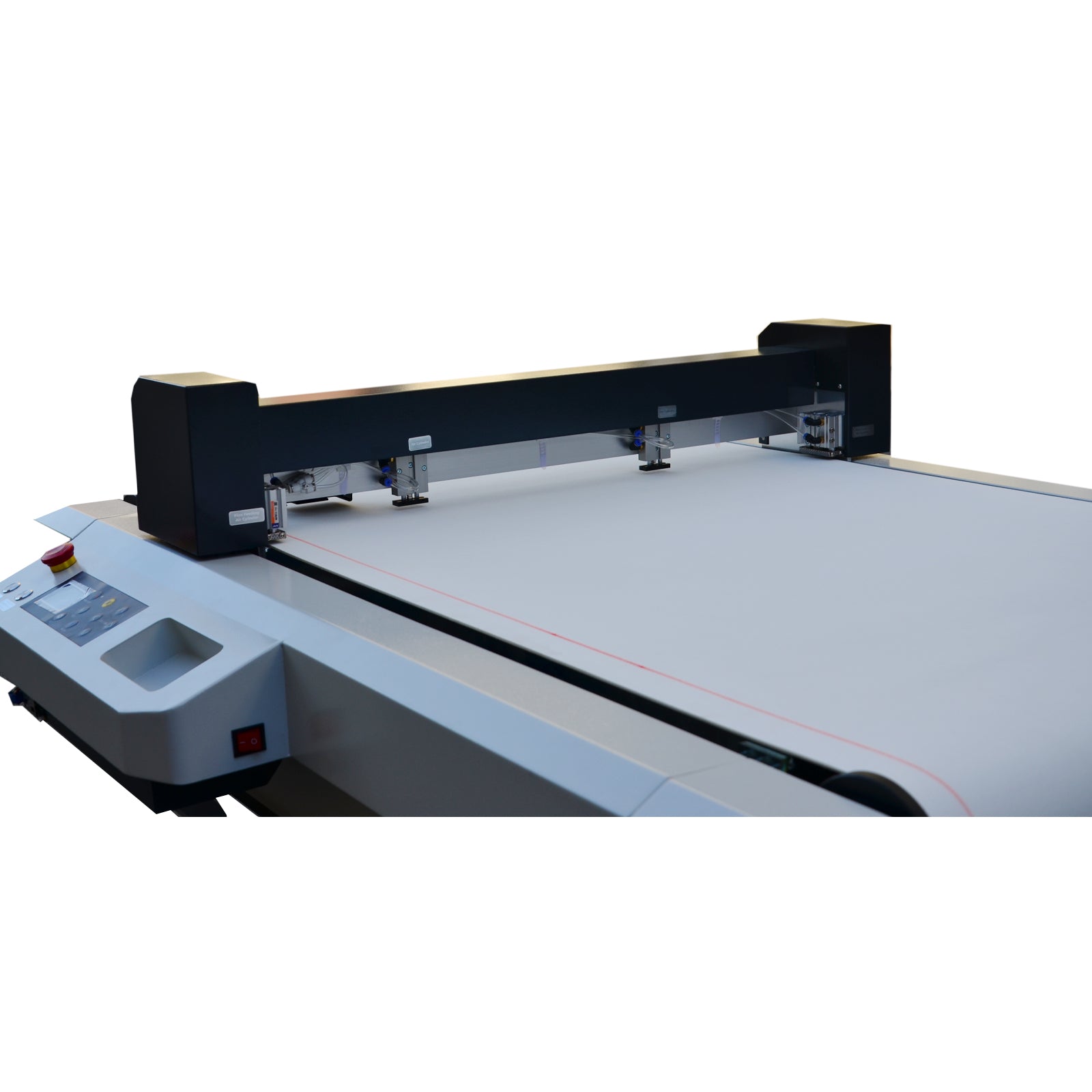

CALCA 32" x 36" Auto Fed Flatbed Digital Cutter Roll Cutter for DTF Printing Film (6090G)

Availability
$11,999.00
$11,999.00
Shipping calculated at checkout.
    CALCA 32" x 36" Auto Fed Flatbed Digital Cutter Roll Cutter for DTF Printing Film (6090G)
    CALCA 32" x 36" Auto Fed Flatbed Digital Cutter Roll Cutter for DTF Printing Film (6090G)

    Tech Specs

    CALCA 32" x 36" Auto Fed Flatbed Digital Cutter Roll Cutter for DTF Printing Film (6090G)
    Flatbed cutter with conveyor feeding, a special purpose auto fed flatbed digital cutter for DTF industry with features optimized according to characters of material applied in the DTF field.
    Super easy installation, one-key operation and high efficiency make CALCA 6090G a right-hand man for DTF, Heat transfer apparel industries.

    Compatible with Cadlink, AutoCAD, CorelDRAW, and CALCA DTF Fairy RIP Software (Print-to-cut).
    Batch cutting, guarantee of high efficiency.

    Gang sheets are widely used in the production of custom dtf heat transfers – both screen printed and digitally manufactured. CALCA roll CNC Cutter can maximize your efficiency and minimize the cost.

    Specification
    Model LPC-DTFC-6090G
    Power Input  AC 110V, 60Hz
    Power Consumption  2.2kw, 20A
    Max. Media Width 810mm(31.9")
    X axis working size 710mm(30")
    Y-axis working size 910mm(35.8")
    Material Thick  0.05-1.5mm (0.001" x 0.06")
    Max Cutting Speed  600mm/s (24"/s)
    Cutting pressure  600g(21oz)
    Software resolution  0.025mm (0.001")
    Mechanical resolution  0.0125mm (0.0005")
    Cutting pressure setting  Adjustable per 1 gram
    Minimum character size  English Arabic characters are about 1mm-2mm(0.04" x 0.08")
    Interfaces  USB2.0 U Disk
    Method to Fix Media  Vacuum Table
    Cutting Force Setup  Adjustable in Every 1G
    Cutter Blade Diameters  Φ2.0mm (0.08")
    Cutter Blade Angles  30°, 45°, 60°
    Dotted Lines Cutting  Yes
    Drive  AC Servo
    IOS  Win10 / 8 / 7 / XP
    Memory Buffer  2MB
    CAD/CAM Software  Windows Driver, SignWorkPro, CADtoPlotpro
    Compatible Software  Cadlink, AutoCAD, CorelDRAW, CALCA DTF Fairy RIP
    File Format  DXF
    Port in Standard  USB, RS-232
    Registration Marks Recognition  CCD Camera
    Cutter Holder  1
    Roll Media Bracket  Yes
