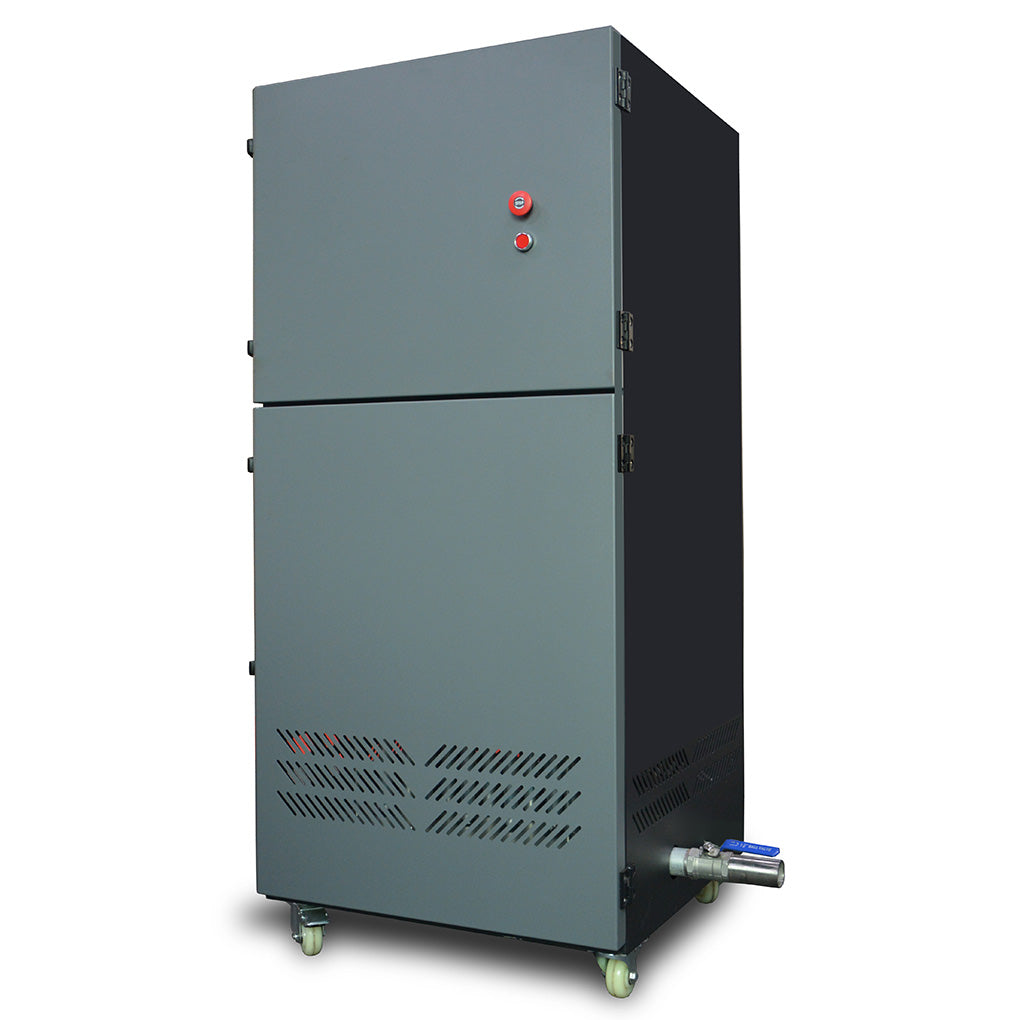

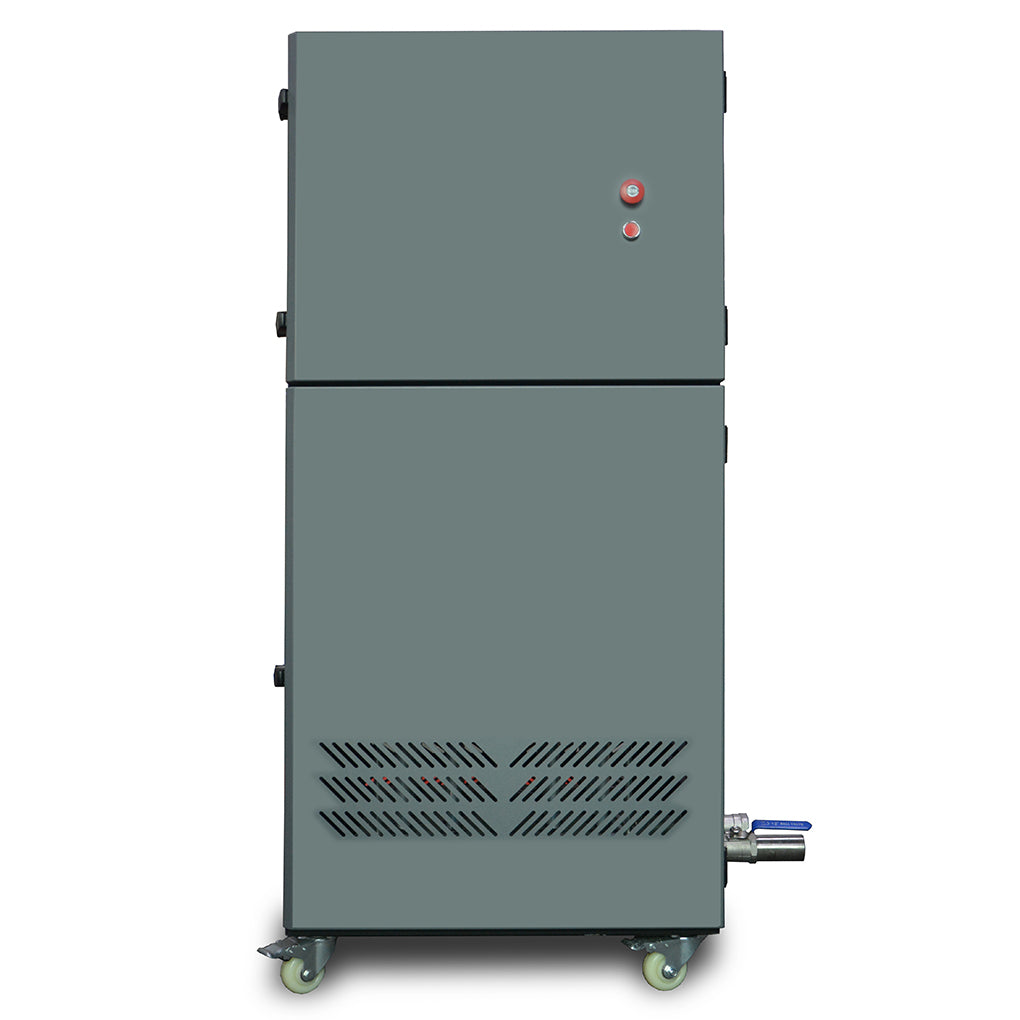

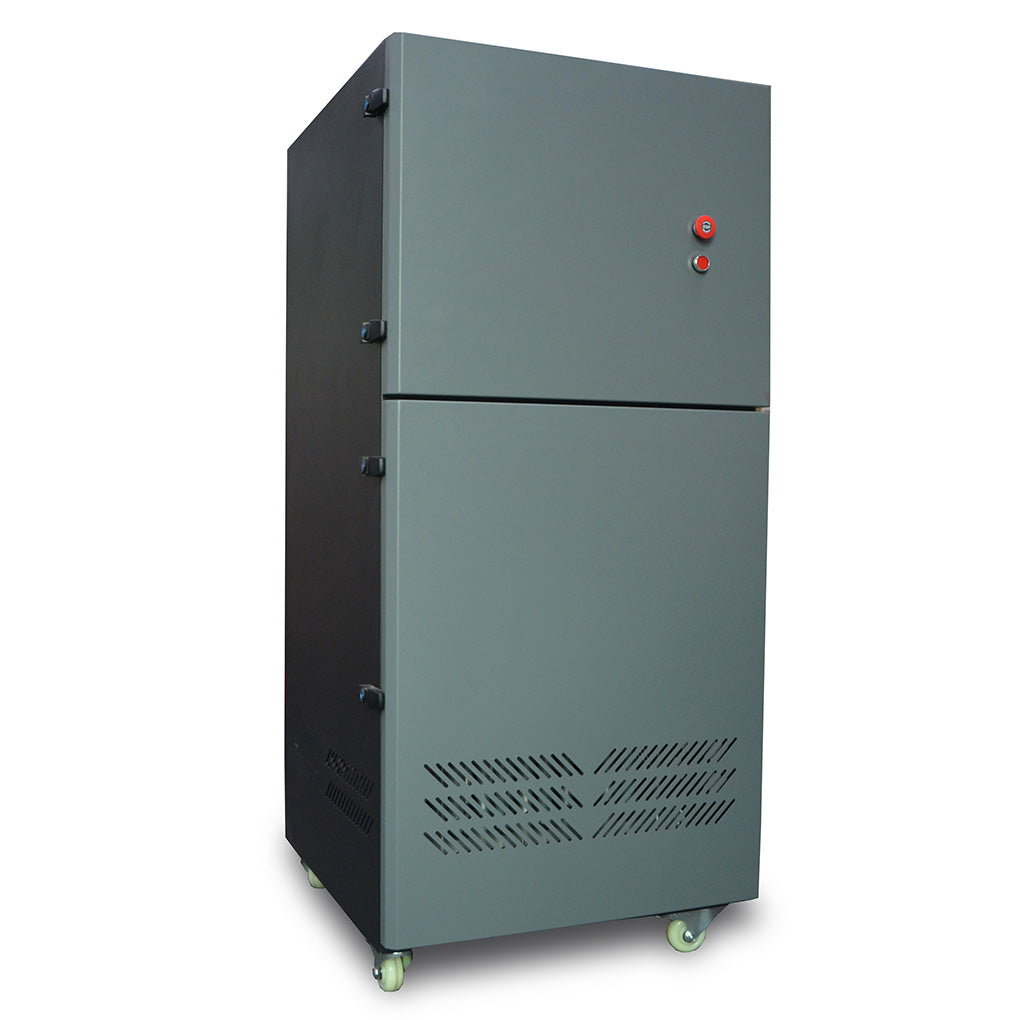

CALCA 900W Universal Fume Extractor Filter 1200m³/h for DTF Powder Shakers and Sublimation Heater

Original price $2,999.00 - Original price $2,999.00
Original price
$2,999.00 - $2,999.00
Current price $2,999.00

CALCA 900W Universal Fume Extractor Filter and Air Purifier 1200m³/h for DTF Powder Shakers
CALCA JS160 smoke lampblack filter is designed for the machine need smoke discharge like dtf shaker or sublimation color system. It can be matched with various powder shakers and sublimation color fixing machines to complete the extraction and filtration of oil fume.
Effectively eliminate and filter the oil fume in the drying process, improve the quality of processed products, and provide a clean and smoke-free working environment.

Rated Voltage: AC 110V /220V± 5%
Rated Current: 8.2A /4.1A
Rated Power: 900W
Energy consumption: 700~900W
Max air amount: 1200m³/h
Noise: ≤ 70db
Machine Size: 28.4in x 27.6in x 65.6in (722mm x 700mm x 1665.5mm)
Machine Weight: 396.8lbs (180kg)
Package Size: 34.6in x 32.3in x 74in (880mm x 820mm x 1880mm)
Gross Weight: 496lbs (225kg)

Remarks: In order to achieve better smoke removal effect, it is recommended that the activated carbon be replaced every 3months and the filter element be replaced every 6 months.Drain the oil at the drain port once every 3 days.

• High effectfilter: This smoke extractor continuously pulls in your DTF powder shaker's fumes and oil, running them progressively through its filterelement and inner activated carbon filters to absorb all harmful gases and unpleasant odors.
• Highly mobile: The 4 quality caster wheels move this small but dependable smoke purifier easily between your devices when needed and then lock smartly in place once you're ready to go.
• Independent design, open it you can use it.
• Adopts the full-scale design, inner oil gas, smoke room are large, have good filter effect.
• Can satisfy dtf powder shaker or sublimation color system's filter requirement.
