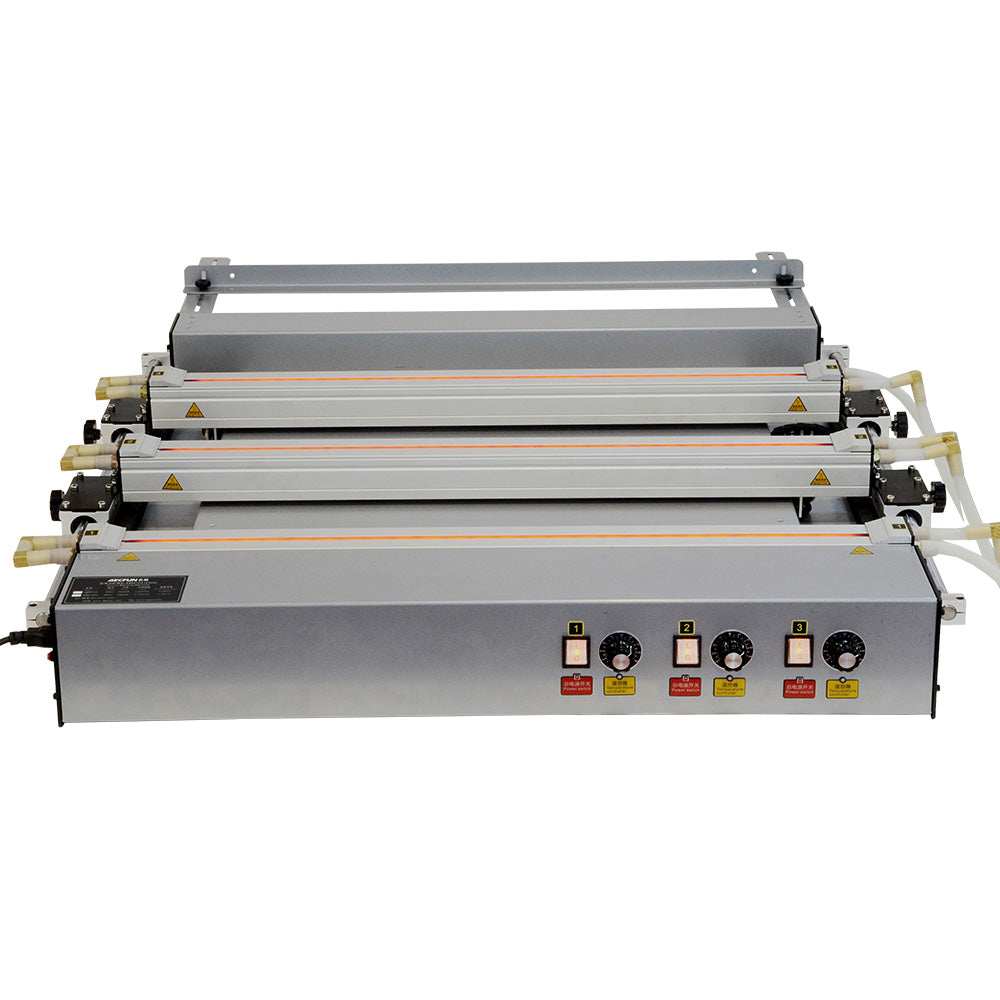

CALCA 52"(1300mm) Acrylic bending machine ABM (Three heating module), 220VAC
Description
The acrylic bending machine was liked by many users in past 7 years. And we have new model: ABM1303
The acrylic bending machine uses module design, with 3 heating module, everyone with independent switch to control.
The three heating modules can be worked together, which accelerate the product processing speed.
With chain design, the distance between every heating module can be adjusted easily, to satisfy the different requirement of the size, enhance the using experience.
Features
1.The distance between three heating module can be adjusted to satisfy the different requirement of the size
2.Circulating water cooling system by submerged pump(random color), keep the worktable stay in cool condition to protect hand and machine.
Application
This Acrylic Plastic PVC Bending Machine is increasingly used in school technological innovation course, decoration projects, packing of square columns or wall corners, fish tank, window edge, display counter, supermarket shelves, advertising light box, art products making, etc.
Decoration industry: Acrylic bending side, acrylic display rack, acrylic decoration bending, etc.
Industry: safety guard on machinery, protective cover for production line, production line exhibition stand, storage box, etc.
Specifications
| Model | ABM-1303-PRO |
| Available material | Acrylic Board, Plexiglass. |
| Available thickness | 0.039"-0.2"(1-5mm) |
| Available width | ≤49.2"(1250mm) |
| The heating gap width | 0.315"(8mm) (CAN NOT ADJUST). |
| Working voltage | 220VAC |
| Power | 3*1.5KW |
| Temperature | Up to 600℃ |
| Adjuster | With length adjuster(removable) |
| The minimum distance between two heating tubes | 1.57"(4cm) |
| The maximum distance between two heating tubes | 19.7"(50cm) |
| Product size | 55.11"x43.31"x4.72" (1400x1100x120mm) |
| Net weight | 139lb（63KG) |
| Package size | 67.71"x39.96"x12.2"(1720x1015x310mm) |
| Gross weight | 212lb(96KG) |
