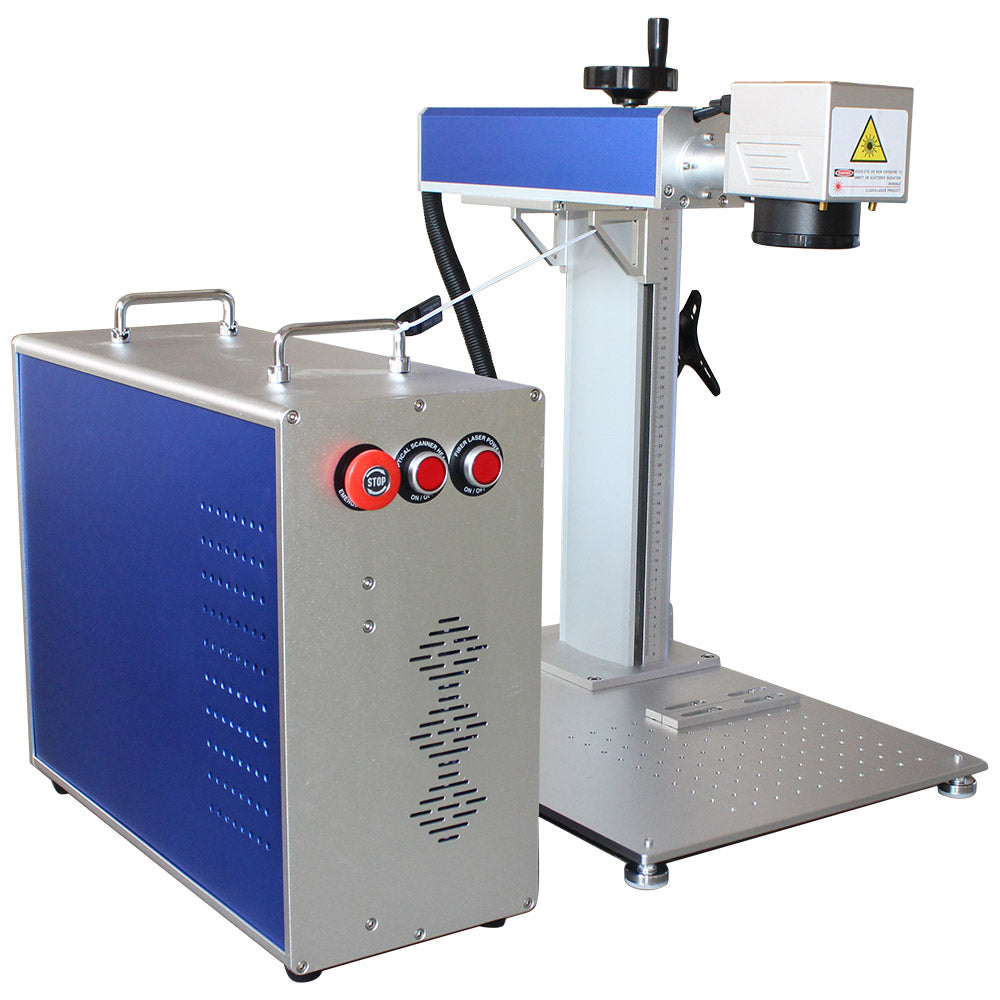

CALCA 50W Fiber Laser Marking Machine For Personalized Laser Engraved Logo Custom Gift, With Raycus Laser + Rotation Axis

Options
$4,699.00
$4,699.00
Shipping calculated at checkout.
    CALCA 50W Fiber Laser Marking Machine For Personalized Laser Engraved Logo Custom Gift, With Raycus Laser + Rotation Axis
    CALCA 50W Fiber Laser Marking Machine For Personalized Laser Engraved Logo Custom Gift, With Raycus Laser + Rotation Axis

    Tech Specs

    CALCA 50W Fiber Laser Marking Machine For Personalized Laser Engraved Logo Custom Gift, With Raycus Laser + Rotation Axis

    Name Origin (brand) Remarks
    Optical maser Raycus Long service life, high reliability, fine beam quality
    Galvo mirror Galvo-tech (digital) Fine marking, more quick and high reliability
    F-θ lens Wavelength High quality optical device
    Board bjjcz 2.12.0 version
    Marking software Ezcad software Powerful, simple and convenient operation, Auto-cad, CorelDraw, AI8.0, Photoshop software compatible form
    Control cabinet China Optical fiber special cabinet, all the mold production, high seal
    Specification Form

    Model

    LMM-DR-50W-S-US

    Fiber Laser Source

    RAYCUS

    Output Power

    50W

    Laser wavelength

    1064nm

    Modulation frequency range

    50-100kHz

    Speed

    0-8000mm/s

    Precision

    0.001mm

    Minimum line width

    0.01mm

    Minimum height of characters

    0.05mm

    Cooling way

    Air cooling

    Marking range

    200x200mm

    Laser power supply

    0.5KW, 110V/60HZ

    Software

    Auto-cad, CorelDraw, AI8.0, Photoshop software compatible

    Graphic Format Supported

    AI / BMP / DST / DWG / PLT

    Rotary device

    Yes
    Weight 35kg (77lbs)

    Computer System Requirements

    		 Win7, Win8, Win10

    Feature:
    1. Optical Fiber Laser, environment friendly, easy maintenance.
    2. Life of the laser can be up to 100000 hours.
    3. Small volume and weight, less than 35KGS.
    4. Easy operation software, compatible with PHOTOSHOP, CORELDRAW, AUTOCAD
    5. Runs without consumable spare parts, no need maintenance, great for continuous working.
    6. Computer System Requirements: Win7, Win8, Win10

    Details:
    1.The galvanometer scanning system is made of optical scanner and servo control of two parts, the whole system adopts new technology, new material, new design and manufacturing.
    2.The smallest volume, suitable for harsh environment, friendly interface, easy operation.
    3.Adopts the high quality, high energy, high stability fiber laser source, prime precision optical galvanometer assembly and the industry’s top software.
    4.Compact, lightweight, simple interface, flexible and adjustable processing direction.

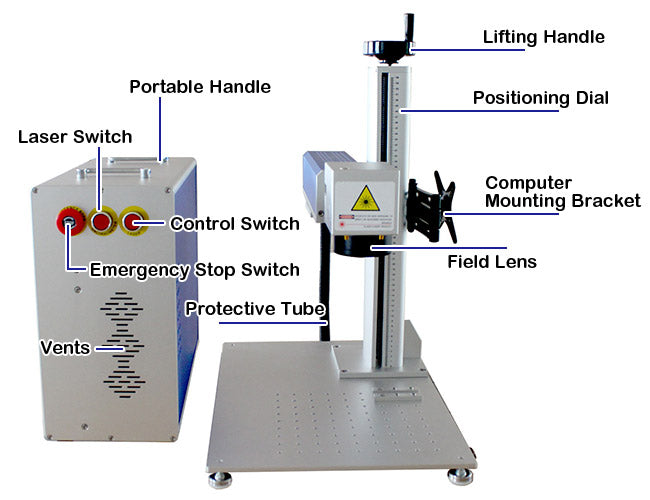

    5.The master switch, red light switch and galvanometer switch,
    6.High precision scale
    7.Rotary axis is included, you can mark on regular cylinder or inside / outside ring.
