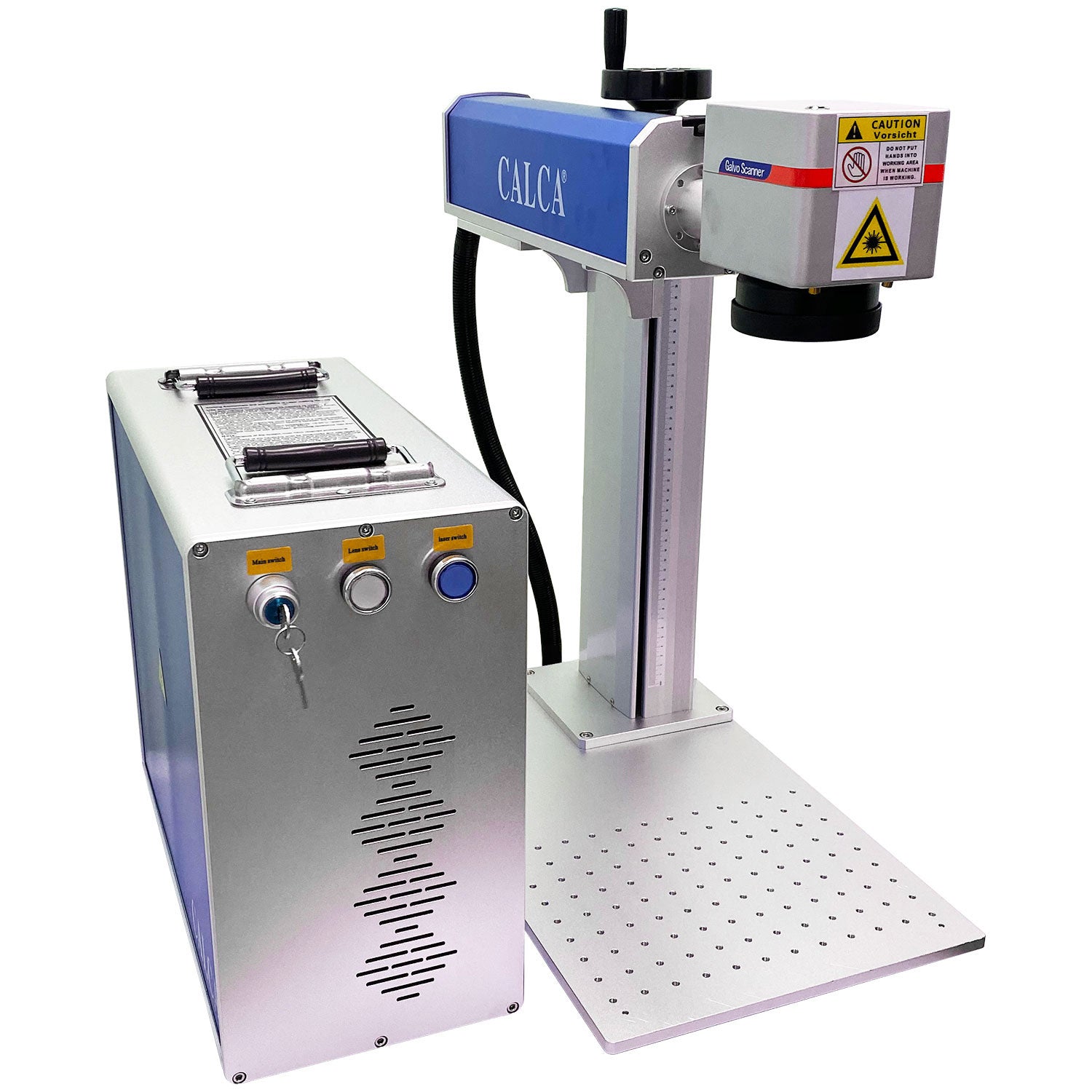

CALCA 30W Split Fiber Laser Marking Machine for Laser Engraving Tumbler, JPT Laser + Rotation Axis, FDA

$4,299.00
$4,299.00
Shipping calculated at checkout.
    CALCA 30W Split Fiber Laser Marking Machine for Laser Engraving Tumbler, JPT Laser + Rotation Axis, FDA

    Tech Specs

    Specification Form

    Model

    LMM-F-30W-JPT

    Fiber Laser Source

    JPT

    Output Power

    30W

    Laser wavelength

    1064nm

    Modulation frequency range

    1-600kHz

     Pulse Duration

    200ns

    Speed

    0-8000mm/s

    Precision

    0.001mm

    Minimum line width

    0.01mm

    Minimum height of characters

    0.05mm

    Cooling way

    Air cooling

    Marking range

    175mm x 175mm (6.9in x 6.9in)

    Laser power supply

    0.5KW, 110V / 60HZ

    Software

    Auto-cad, CorelDraw, AI8.0, Photoshop software compatible

    Graphic Format Supported

    AI / BMP / DST / DWG / PLT

    Rotary device

    Yes
    Weight 35kg (77lbs)

    Computer System Requirements

    		 Win7, Win8, Win10
