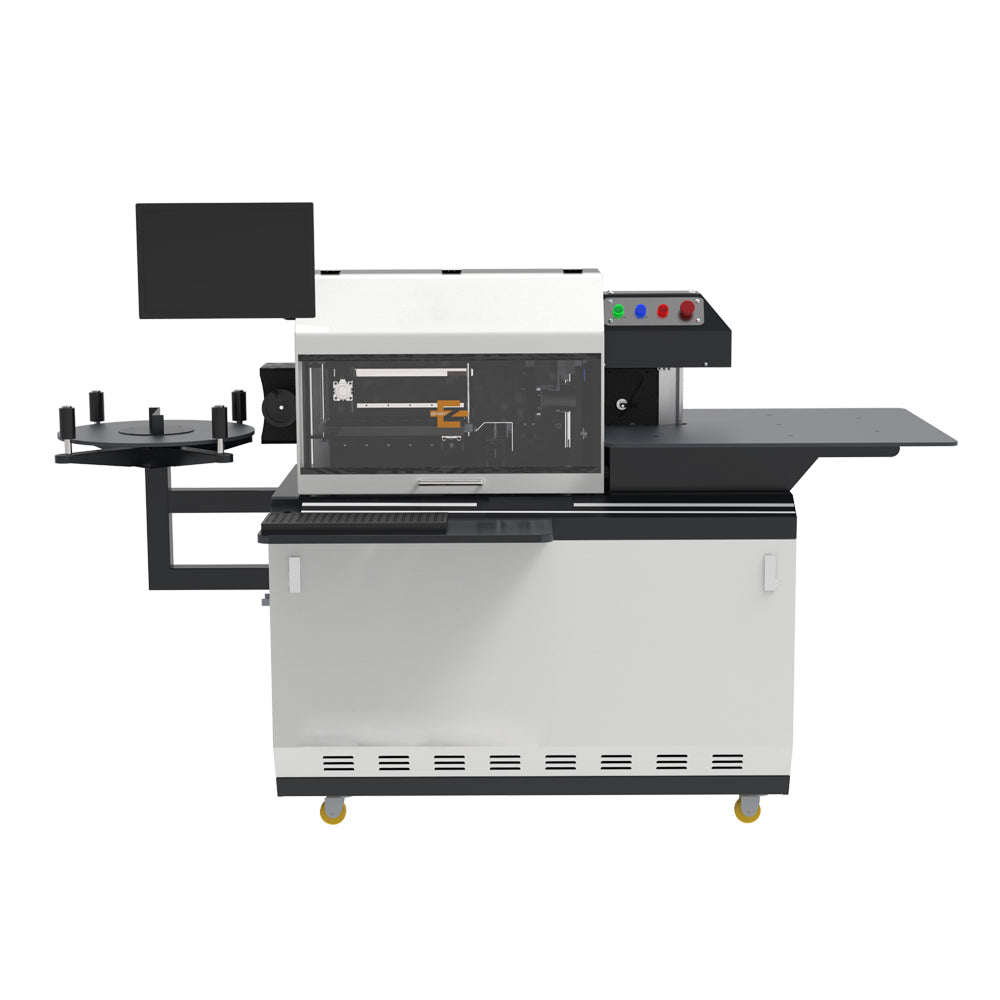

Automatic Y13 CNC Metal Channel Letter Bender Machine for Aluminum, SS, Iron
Description:
Y13 Multifunction Channel Letter bending machine,Using mechanical hand alternately feeding structure,the stability of the feeding process is effectively guaranteed. Double ball screw with nylon gear, the feeding speed of the machine is greatly improved. The material clamp is made of structural castings,avoid scratching to the material while improving the feeding holding power.
Features:
The monobloc casting of Bending Mechanism has high molding degree which ensure the bending speed and stability.
The casting on Clamping increases the grasping force, meanwhile does not scratch the material;
The double ball screw of feeding design ensures the feeding speed and precision as well as stability;
The matching accuracy with the source file is ±0.1mm.
Specifications
| Model | MBM-EJON-Y13 |
| Feeding System | Double ball-screw alternate feeding system |
| Slotting System | Plane cutter and alloy milling cutter double cutters slotted system |
| Bending System | Double blade alternate bending system |
| Suitable Material | Stainless steel, Galvanized steel, Aluminum plate |
| Material Height | 20~130mm |
| Material Thickness | Stainless steel, Galvanized steel≤0.9mm |
| Aluminum≤1.2mm | |
| Min. Bending Angle | Stainless steel, Galvanized steel, Aluminum R6 |
| Size Accuracy | ±0.1mm |
| Input File Format | Dxf.Plt.Ai |
| Power | AC220V, 50Hz, 3KW |
| Air Source | 0.6m³/Min |
| Control System | 4 axis control system (2 axis servo control) |
