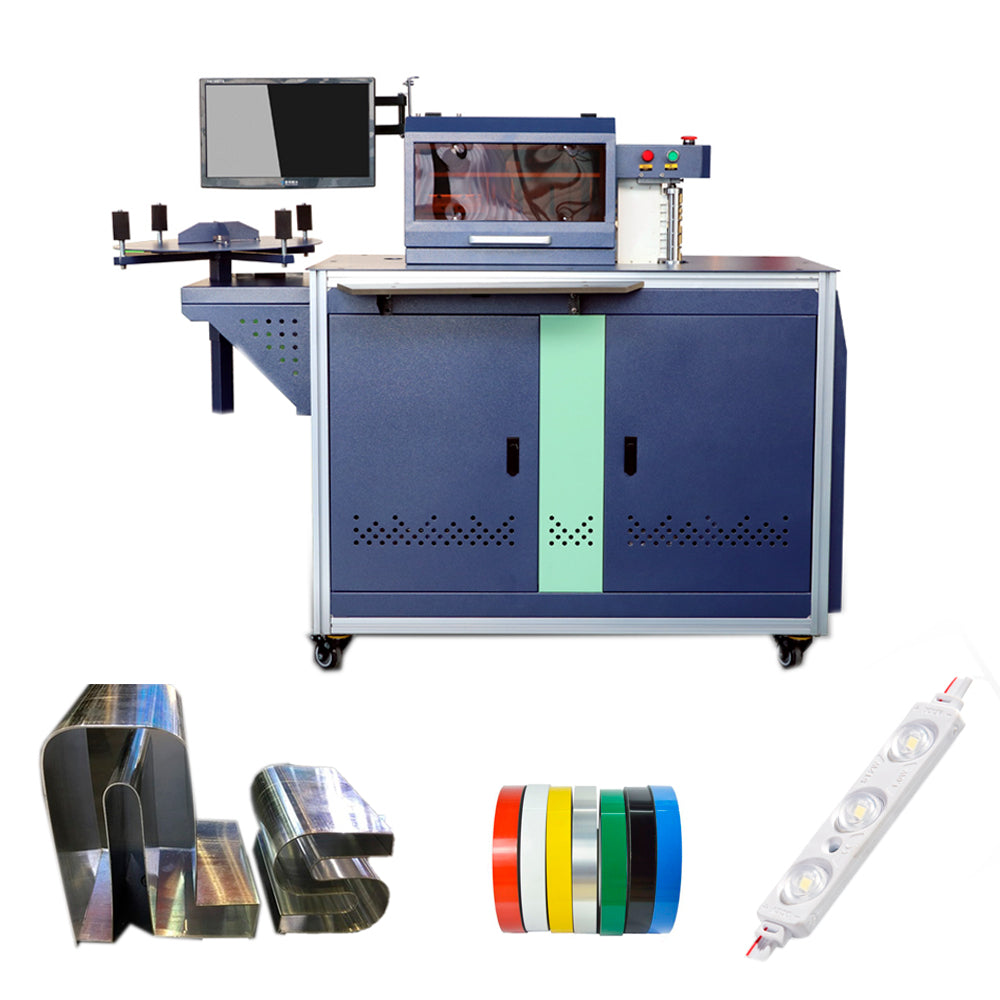

Automatic CNC Channel Letter Bender-for Aluminum + Thickened 110mm (4.3") x 100m (328ft) Roll Aluminum Tape (White/Black) + LED module (200pcs)

Original price $4,799.00 - Original price $4,799.00
Original price
$4,799.00
$4,799.00 - $4,799.00
Current price $4,799.00

Automatic Channel Letter Fabrication Bender Machine for Aluminum Channelume/ Let-r-Edge Coil *1set
Thickened 110mm (4.3") x 100m (328ft) Roll Aluminum Tape (Flat Coil without Folded Edge, 0.8mm (0.031") Thickness) *1roll
SMD 2835 Waterproof LED Module (3 LED Chips with Aluminum PCB Injection, White Light, 1W, L71.5 x W13.5 x H6.7mm), DC12V *200pcs


Machine Details:

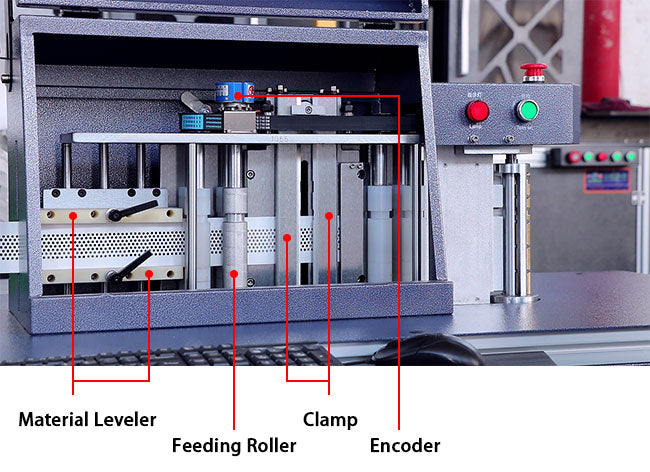

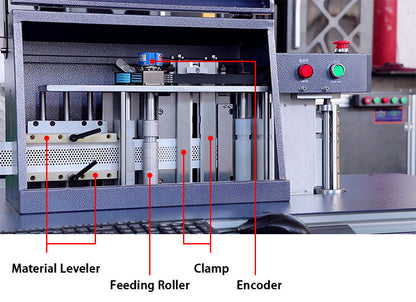

1. Feeding Part:

Total Feeding Part including material leveler, Feeding Rollers, Encoder, Material clamp
(1)Material Leveler make the material coil to find a right and straight position from the beginning.
(2)Feeding rollers make material keep feeding in strong power at a smooth path.
(3)Encoder automatically give length compensation on slip to make sure the feeding accuracy.
2. Cutting/Slotting Part:
Blade cutting material from both sides and multi-angle from 45 degree to 135 degree.
With both side cutting, letter channel more easy to be bent to different angle.
With Multi-angle cutting, you always could be get any angle you need at the letter corner location

3. Bending Part:
Bending part process smooth curves and without leave any scratch mark on aluminum material surface

4. Automatic Cutting Depth Adjusting Design
New Technology For Channel Letter Machine.
Our Channel Letter Machine adjust Cutting Depth Automatically under software control.
Only our machine have this technology in market. Other brand channel letter machine adjust cutting depth by hand under 4 pushing screws and 4 pulling screws.

SMD 2835 Waterproof LED Module Details:

Thickened 110mm (4.3") x 100m (328ft) Roll Aluminum Tape (Flat Coil without Folded Edge, 0.8mm (0.031") Thickness) *1roll

There is antioxidant or fluorocarbon coating on the surface of strip, so no need to polish and spray-paint. No color-fading and paint-shedding within at least 5 years. Normal glue can be used to the aluminum strip and acrylic, easy, quick, and firmly strong. It's made of aluminum, specially designed for quick manufacturing of Channel Letter. Widely used in outdoor acrylic channel letter. Also called aluminum strip, aluminum coils for channel letter, or trim cap. This is type of advertising material popular around the world.
Used for channel letters making.

Specification:
Width: 110mm (4.3")
Thickness: 0.8mm (0.031")
Length: 100m (328 feet)
Available Colors: White(WH), Black(BK).
MOQ: 100m (328 feet)
100m (328 feet) per Carton
FL means flat sheet without edge

Features:
- All coils are aluminum, light weight and durable.
- Good weathering resistance, never rust.
- Used for making Dimensional Sign Letter.
- Paint Spray.
- Can adhesive the letter face instantaneously by 502 super glue after inside surface special treatment.
- Simply, easily and quickly to make sign letters.
- Apply to all kinds of Channel Letter Benders.
