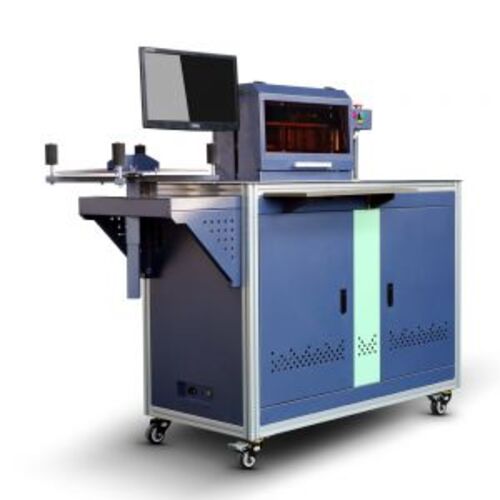

Automatic Channel Letter Fabrication Bender Machine for Aluminum Channelume/ Let-r-Edge Coil

Original price $4,559.00 - Original price $4,559.00
Original price
$4,559.00
$4,559.00 - $4,559.00
Current price $4,559.00


Advantages:

1. Encoder control feeding length, Auto-Compensation on slipping.
2. Adjust cutting depth automatically by software.
3. The whole machine adjust by software, no any working part adjusted by hand any more.
4. Easy to Adjust. With more functional software, one software setting could work on different material.
5. Bender Device(Head) adopt Steel Structure:
As the main structure of the machine, the bender device(Head) made by steel, more stable and stronger during bend-working.
6. As the core part of motion card, we use high-class CPU. Its cost come up to 2-3 times than other machine suppliers.
7. Software more functional: compensation on straight line, arc, inline, outline, start and end location more functional; Bender machine and router perfect match.
8. Easy to Adjust. With more functional software, one software setting could work on different material.
9. Can read AI,DXF and PLT format. Perfect match CNC Router.

Machine Details:
1. Feeding Part:

Total Feeding Part including material leveler, Feeding Rollers, Encoder, Material clamp
(1)Material Leveler make the material coil to find a right and straight position from the beginning.
(2)Feeding rollers make material keep feeding in strong power at a smooth path.
(3)Encoder automatically give length compensation on slip to make sure the feeding accuracy.

2. Cutting/Slotting Part:
Blade cutting material from both sides and multi-angle from 45 degree to 135 degree.
With both side cutting, letter channel more easy to be bent to different angle.
With Multi-angle cutting, you always could be get any angle you need at the letter corner location

3. Bending Part:
Bending part process smooth curves and without leave any scratch mark on aluminum material surface

4. Automatic Cutting Depth Adjusting Design
New Technology For Channel Letter Machine.
Our Channel Letter Machine adjust Cutting Depth Automatically under software control.
Only our machine have this technology in market. Other brand channel letter machine adjust cutting depth by hand under 4 pushing screws and 4 pulling screws.

Specifications

Model MBM-JH-5150
Working Principle Auto feed, Auto Slot(Cut), Auto Bend/Auto Adjust Cutting Depth By Software(Brand-New Technology owned by Dahe Company)
Processing Material Aluminum, Channelume and other custom alu Profile
Material Height 0.79-5.9in (20-150mm)
Material Thickness 0.008-0.047in (0.2-1.2mm)
Slot Degree 45-135 Degree
Speed 600-1000 Meters/8 Hour
Min Bending Diameter ≧0.47in (12mm)
Voltage Single phase AC 220V
Power ≤1500W
Max Bending Angle 360 degree
Max Approach Speed (in/sec) 4
Max Bending Speed (in/sec) 40
File Format AI,Dxf,plt
Air Compressor 0.6 Mpa
Machine Size 53.1*27.6*51.2in (1350*700*1300mm)
Machine Weight 485lb (220KG)
Packing Size 59.4*31.9*55.1in (1510*810*1400mm)
Gross Weight 573lb (260KG)
