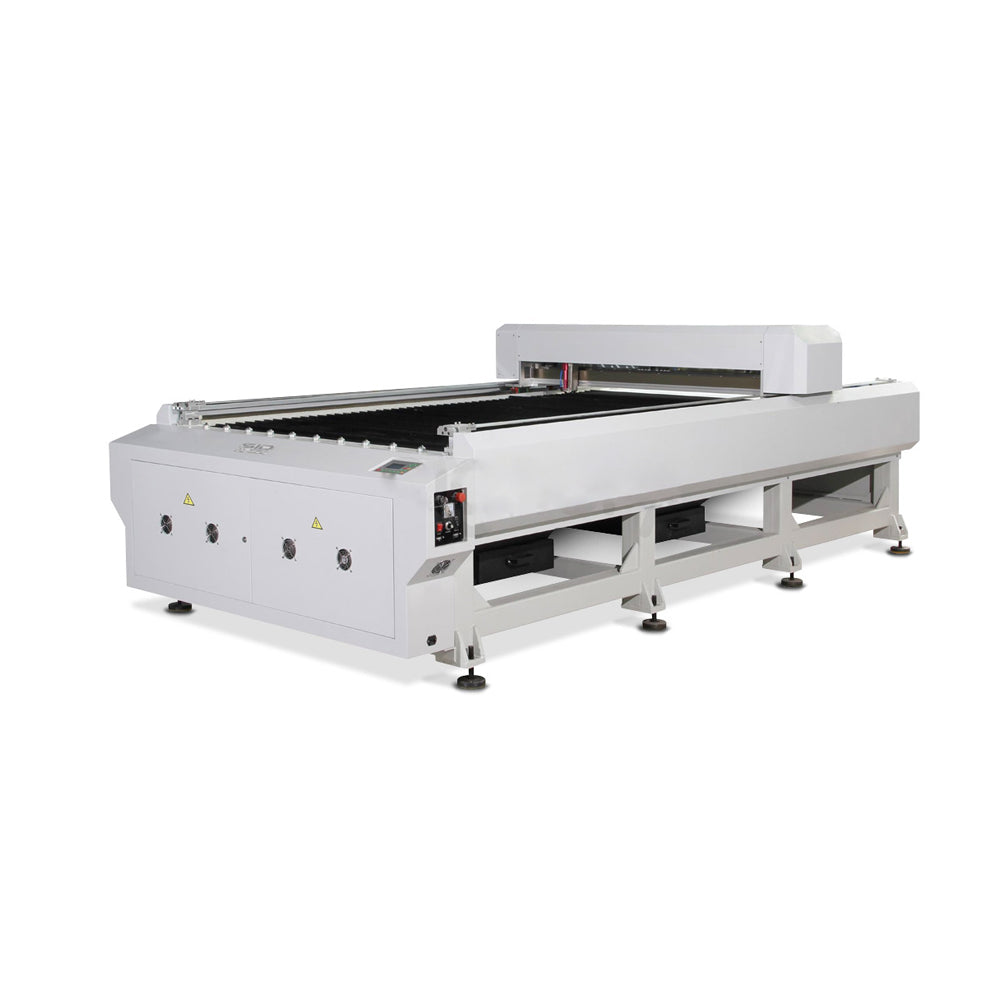

96” x 52” XL2513 Laser Cutter, with 150W Laser Tube

$26,599.00
$26,599.00
Shipping calculated at checkout.
    96” x 52” XL2513 Laser Cutter, with 150W Laser Tube

    Tech Specs

    Application:
    The XL 1390 Laser Cutter / Laser Engraver is ideal for sign makers, to produce engraved and POP displays, award plaques, architectural signage and promotional items can help expand your business.
    Additional applications encompass fabric cutting, shoemaking, furniture, packaging, molding and monument engraving. By producing acrylic, MDF, plywood, rubber and even cardboard jobs, the XL Laser Engraver will attract new customers and bolster your bottom line!

    Specification
    Model LCM-XL-2513-150W
    Laser Tube Power CO2 Glass Laser Tube 150 W
    Cutting Area 96″ x 52″ (2,440 x 1,330 mm)
    Engraving Speed Up to 16″/s (400 mm/s)
    Reposition Accuracy +/- 0.01mm
    Min. Engraving Size Letter 0.04″ (1mm)
    Max. Cutting Speed Up to 12″/s (300mm/s)
    Max. Cutting Thickness Acrylic – 1” (25 mm), MDF – ½ “ (12 mm), PS – 3/16” (5 mm)
    Max Power Consumption 1800W
    Voltage AC 220V 60hz
    Maximum Laser Head Height Adjustment Up to 1.77” (45 mm)
    Cooling System Water cooling system
    MOTOR TYPE Step motor featuring high speed, high precision and great stability for X and Y axis movement
    Speed Control Adjustable from 0 - 100%
    Supported Formats Plt,. Dxf, .Ai (version 8), AutoCad, CorelDraw
    Operational Temperature Temperature 20ºC - 28ºC (68ºF - 82ºF)
    Humidity 40% - 60%
    Equipment Dimensions 78” x 140” x 47” (1,920 x 3,550 x 1,200 mm)
    Package Dimensions 80” x 144” x 58” (2,030 x 3,650 x 1,450 mm)
    Equipment Weight Net: 2,645 lb (1,200 kg) • Gross: 2,866 lb (1,300 kg)
