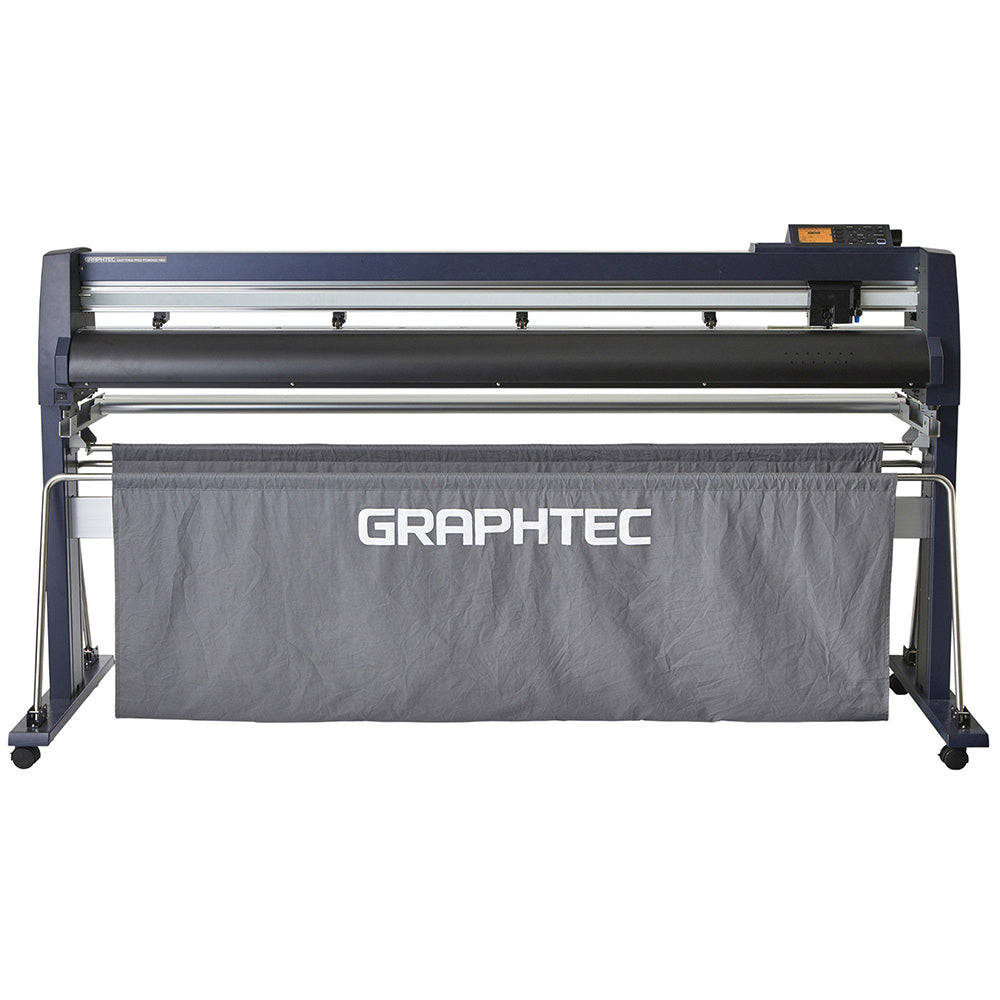

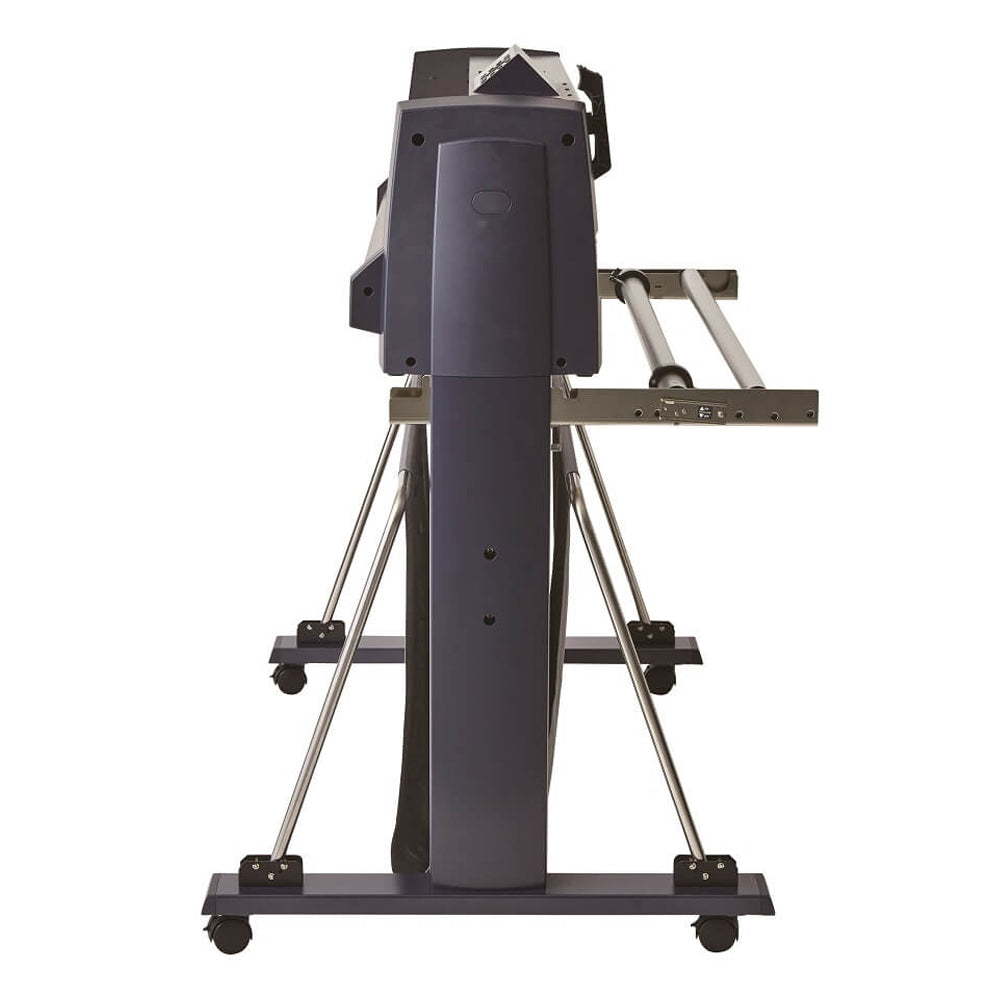

64" Graphtec FC9000-160 Wide Cutter - New

$7,295.00
$7,295.00
Shipping calculated at checkout.
    64" Graphtec FC9000-160 Wide Cutter - New
    64" Graphtec FC9000-160 Wide Cutter - New

    Tech Specs

    Description

    The flagship FC9000 Series is Graphtec’s most advanced, versatile roll fed cutting plotter to date. Revered around the world for its dependable, high-precision cutting capabilities with both printed and unprinted materials, the FC Series is the ultimate finishing solution for the wide format signage, apparel, and automotive industries. A newly developed feeding system and cutting head has further improved cutting quality of thin and thick materials ranging from delicate window tint to rigid magnet and high intensity reflective. ARMS 8.0 features the introduction of Graphtec’s Datalink barcode generation system which efficiently loads and processes your jobs automatically.

    Features:

    1. Highest level cutting speed, acceleration and cutting force
    2. Auto panelling
    3. Data output via USB flash memory without PC
    4. User friendly control panel
    5. Improved ARMS for high precision cutting (ARMS 8.0)
    6. Data link function
    7. Continuous cut
    8. Supports colored marks/specialty media
    9. Supports Adobe Illustrator crop marks
    10. Expanded cutting area
    11. Segment area compensation (XY)


    Optional automatic roll is only available for models 140 and 160

    Technical Specifications

    Model FC9000-75 FC9000-100 FC9000-140 FC9000-160
    Max. cutting area
    (W x L) (*1)     		30 in x 164 ft
    762 mm x 50 m     		42 in x 164 ft
    1067 mm x 50 m     		54 in x 164 ft
    1372 mm x 50 m     		64 in x 164 ft
    1626 mm x 50 m
    Guaranteed Precision Cutting Area (*1) 29.21 in x 50 ft 41 in x 32 ft
    35.2 in x 50 ft     		53 in x 32 ft
    35.2 in x 50 ft     		63 in x 32 ft
    35.2 in x 50 ft
    Mountable media width(*2)

    Min. 1.96 in
    Max. 36.22 in

    Min. 1.96 in
    Max. 48.19 in

    Min. 1.96 in
    Max. 60.20 in

    Min. 1.96 in
    Max. 72.83 in
    Max. cross cut width 30 in 42 in 54 in 64 in
    Number of push rollers 2 rollers 3 rollers 4 rollers 4 rollers
    CPU 32-bit CPU
    Configuration Grit rolling plotter
    Drive method Digital servo drive
    Max. cutting speed 58.5 inches per second (45 degree direction) 41.3 (axis direction)
    Cutting force Max. 600 gf in 48 steps
    Axial acceleration Max. 39.2 m/s2 (4 G) in 8 steps
    Compatible roll media diameter Min. 2.99 in Max 7.8 in. (Max diameter is 6.29 in when included flange is installed)
    Mechanical resolution 0.005 mm
    Programmable resolution GP-GL: 0.1 / 0.05 / 0.025 / 0.01 mm, HP-GL™: 0.025 mm
    Distance accuracy (*2) Max. 0.1 mm or 0.1 % of plotted length
    Repeatability (*2) Max. 0.1 mm in plot up to 2 m (excluding the expansion and contraction of the media)
    Minimum character size Approx. 5 mm alphanumeric (varies depending on character font and media)
    Mountable number of tools 1 tool (cutting blade, plotting pen or pouncing tool) in standard;
    2 tools (cutting blade and plotting pen) when second penholder (optional) is installed
    Blade types Supersteel (0.9 mm or 1.5 mm diameter)
    Pen types Water-based fiber-tip pen, Oil-based ballpoint pen
    Pouncing tool type Steel pin 1.2 mm diameter, required optional pouncing tool (PPA 33-TP12)
    Media types (*3) Self-adhesive marking film (vinyl, fluorescent, reflective, high-intensity reflective film) up to 0.25 mm thick,Automotive protection and window tinting film, Sandblast resist rubber up to 1 mm thick
    Compatible paper for pouncing Regular paper from 0.06 to 0.13 mm thick
    Cross-cutter Built into the tool carriage
    Perforation cutting Supported (performed by force control)
    Interface USB 2.0(Full Speed), Ethernet 10BASE-T/100BASE-TX
    Buffer memory 2 MB
    Command sets GP-GL / HP-GL™ emulation (Set by menu or command, and selects from GP-GL, HP-GL™, or Auto select)
    Condition settings Dual configuration (save two (2) user settings with eight (8) separate condition settings per user)
    Display Graphic type LCD (3.7-inch, backlight)
    Power source 100 V to 240 V AC, 50 / 60 Hz
    Power consumption AC100-240 V, 50/60 Hz
    Operating environment 50 to 95 ºF, 35 to 75 % R.H. (non-condensing)
    Guaranteed accuracy environment 60 to 89 ºF, 35 to 70 % R.H. (non-condensing)
    External dimensions
    (W x D x H)     		50" x 28" x 48"
    1270 x 711 x 1219 mm     		61.8" x 28" x 48"
    1570 x 715 x 1219 mm     		73.6" x 28" x 48"
    1870 x 711 x 1219 mm     		84" x 28" x 48"
    2133 x 711 x 1219 mm
    Weight (*8) 108 lbs. 123 lbs. 141 lbs.
    178 lbs. /w take-up     		154 lbs.
    195 lbs. /w take-up
    Included Software(*6)) Graphtec Studio 2, Cutting Master 5 Plug-in for Windows and Mac
    Compatible OS (*5) Windows 11 /10 / 8.1 / 64-bit editions & MacOS 10.2 (Sierra) to 13 (Ventura)
    Safety PSE, UL/cUL, CE mark)
    EMC VCCI Class A, FCC Class A, CE mark

    *1: Operated with Graphtec specified cutting conditions and media.
    *2: There are conditions for operation when setting the media.
    *3: HP-GL is a registered trademark of Hewlett-Packard Company.
    *4: CB15UA/CB15UA-K30 blades and reinforced backing sheets are recommended for certain grades of high- intensity reflective film.
    *5: Graphtec does not support software / drivers used with operating systems that have become obsolete and are no longer supported by the OS developer.
    *6: Software is available for download from Graphtec’s website.
    *8: Includes stand and basket.
