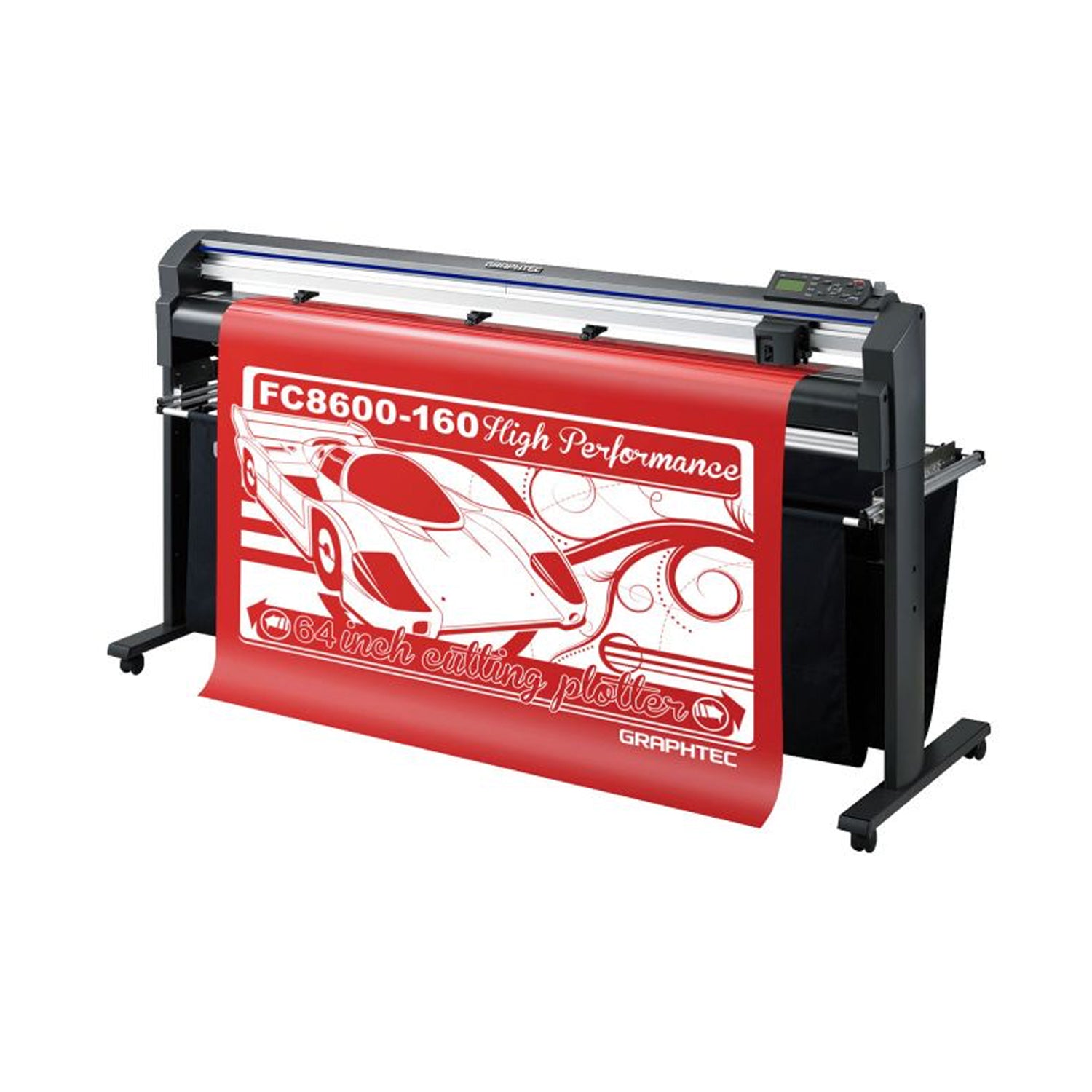

64" Graphtec FC8600-160 High Performance Vinyl Cutting Plotter - Refurbished (90 Days Warranty)

$4,299.00
$4,299.00
Shipping calculated at checkout.
    64" Graphtec FC8600-160 High Performance Vinyl Cutting Plotter - Refurbished (90 Days Warranty)

    Tech Specs

    Description:

    The FC8600 series high performance cutting plotter is an industry leader for sign makers, graphic artists, automotive aftermarket professionals, countertop installers and other related users. The FC8600 series features a maximum cutting speed of 58.5 in/sec, 4.0G maximum acceleration, and 20 to 600g selectable cutting forces, allowing users to process diamond grade, high-intensity reflective film, sandblast resist rubber, automotive window & paint protection films, self-adhesive vinyl, Amberlith™  and Rubylith™ , among other media types.

    Features:
    • 3 inch wide user-friendly LCD control Panel, a Dual configuration function (two-user set and save customized conditions), included Ethernet capability (run multiple machines from one location), and an option for additional push rollers with 3 tension settings and the new 5th Generation ARMS system (automatically detects registration marks with color variants).

    • Graphtec’s next generation ARMS system adjusts for several types of potential print distortions, allowing for accurate contour cutting of pre-printed images and decals.


    Graphtec FC8600 160

    New Features of the New ARMS
    •  Optical Sensor for Auto Alignment
    •  Sensitivity adjustment for registration mark detection on various media and colors.

    PERF CUT ENABLED high performance cutters finish the job!
    • With its included perf cut enabled custom tool settings—you have the ability to perforate cut all the way through your pre printed vinyl media for pop-out full-color stickers and decals without damaging your blade or cutting plotter machine.



    • New manufacturing technologies, along with the latest engineering advancements, have allowed Graphtec to make an unprecedented move forward in the industry. High performance features have been added to the new series yet its competitive pricing remains.
    • With the world’s fastest throughput performance and superb accuracy, the new FC8600 series accommodates the most demanding cutting and plotting projects and provides users with the versatility needed for a wide variety of applications.

    Price Includes:
    Floor stands, media roll rack, media catch basket, Graphtec Studio standalone software, and also includes Cutting Master 3 plug-in software for Adobe Illustrator and CorelDraw.

    • Perf Cut Through Vinyl Media
    • Cut Window Tint Film
    • Cut Paint Protection Film
    • Cut Etching and Sandblast Resist Stencils
    • Cut High-Intensity Reflective
    • Cut Diamond Grade Media



    Specifications
    Model CPM-FC8600-160
    CPU 32-Bit
    Configuration Digital Servo Friction feed with MicroGritroll™ drive
    Contour Cutting Automatic
    Class Pro Vinyl Cutters
    Intended Use Professional
    Max. cut width
    (expanded mode)     		1626 mm (64 in)
    Max Cutting Length 15,240mm (600 in)
    Mountable media Max. width 1850 mm (72.8 in)
    Min. width 50 mm (2 in)
    Max. cross cut area 1750 mm (68.9 in)
    Max. cutting speed (Axial) 1485 mm / sec (58.5 in/s) at a 45° angle
    Max. axial acceleration 4.0 G (39.2 m/s2)
    Cutting pressure 20 g to 600 g (0.196 N to 5.88 N) in 48 steps
    Min. character size*1 3 mm (0.125 in) alphanumeric Helvetica med. Font
    Mechanical resolution 0.005 mm (0.0002 in)
    Programmable resolution GP-GL : 0.1 / 0.05 / 0.025 / 0.01 mm , HP-GL™ : 0.025 mm
    Repeatability*2 Max. 0.1 mm / 2 m (0.0039 in / 80in)
    Tools Accepts (1) cutting blade, (1) plotting pen, or (1) pouncing tool ; Second penholder (optional)
    Motor Type Servo
    Blade types Supersteel (0.9 mm or 1.5 mm), Sapphire(1.5 mm)
    Pen types Water-based fiber-tip, oil-based ballpoint, and disposable ink pens
    Pouncing tool type Requires optional pouncing tool : (PPA33-TP12, 1.2-mm pin diameter)
    Media types Self-adhesive vinyl film, diamond grade, fluorescent film, reflective film, AmberlithTM , RubylithTM , window film, high-intensity reflective film*3 , paint protection film, up to 0.25 mm tick , sandblast resist rubber up to 1 mm thick, etc.
    Compatible paper for pouncing Regular paper from 0.06 to 0.13 mm thick
    Standard interfaces RS-232C / USB2.0 (Full speed), Ethernet
    Buffer memory 2 MB
    Command sets GP-GL / HP-GLTM*4
    LCD display Graphic type 3 inches LCD backlight type
    Power supply 100 to 240 VAC/50 to 60 Hz (Auto switching)
    Power consumption 160 VA max.
    Operating environment Temperature: +10°C to +35°C
    Humidity: 35 % to 75 % (non-condensing)
    Guaranteed accuracy environment Temperature: +16°C to +32°C
    Humidity: 35 % to 70 % (non-condensing)
    External dimensions (W x D x H) including stand*5 2138 x 715 x 1219 mm
    84.2 x 28.1 x 48 in
    Weight including stand 59 kg (130 lbs)
    Graphtec FC8600 160 is Compatible OS Windows 2000 / Windows XP / Windows Vista Macintosh OS 10.2 or later
    Certifications UL, CUL, CE marking, RoHS, China RoHS
