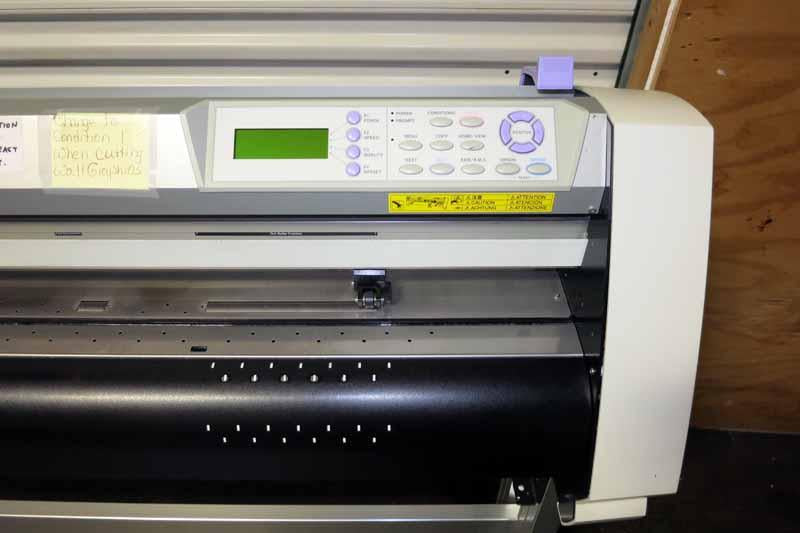

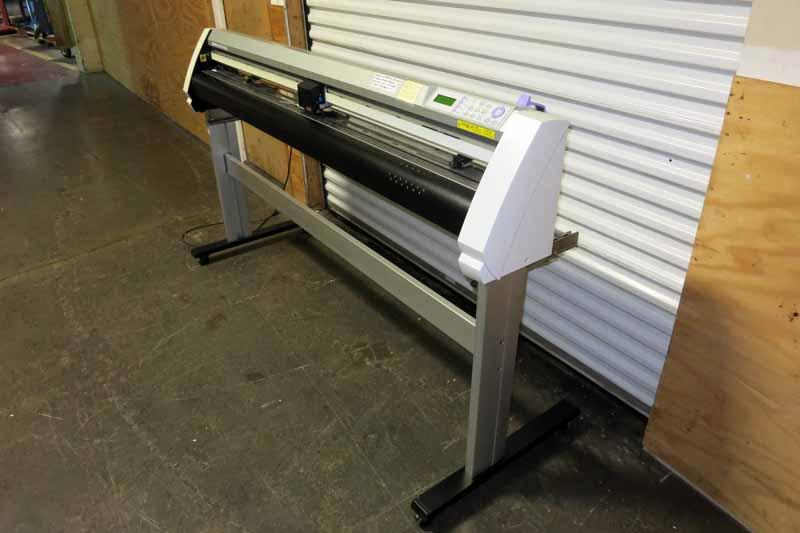

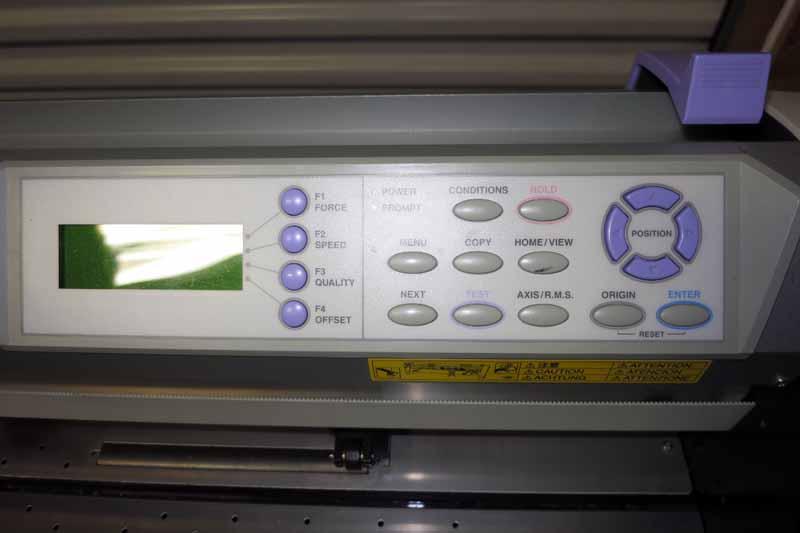

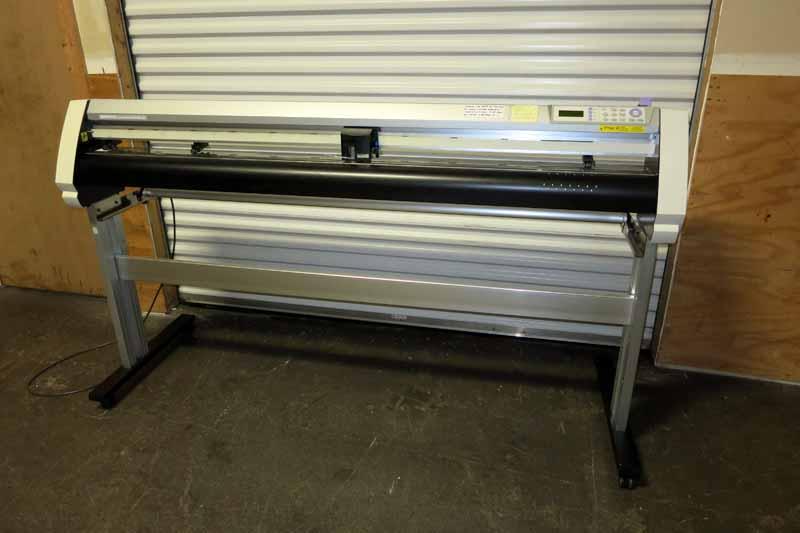

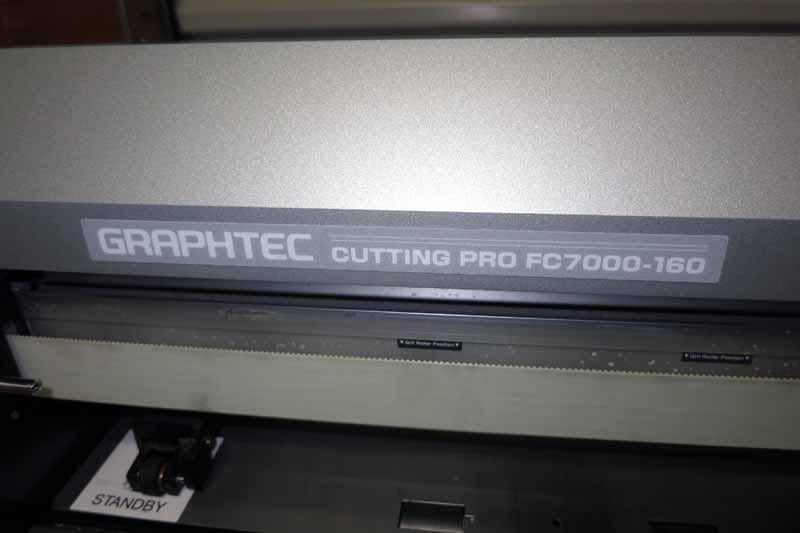

64” Graphtec FC7000-160 Vinyl Cutting Plotter - Refurbished – 1 Year Warranty

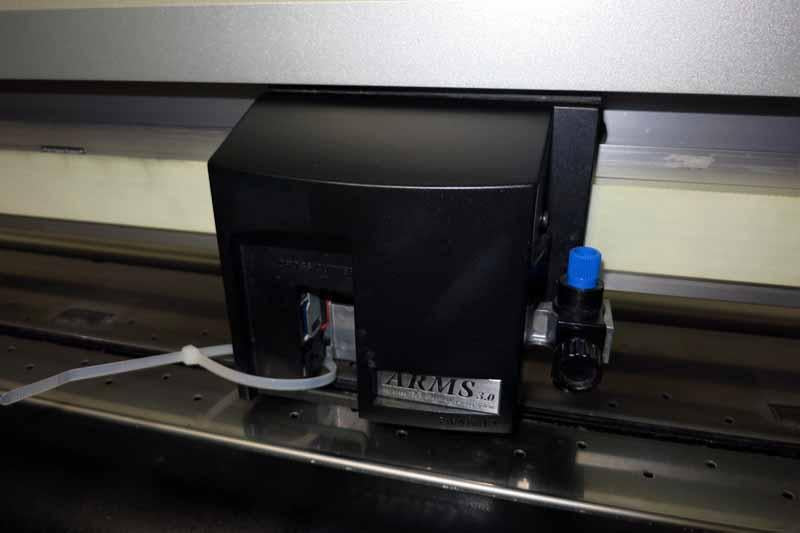

AUTOMATIC REGISTRATION MARK SENSOR (ARMS) & DUAL AXIS CORRECTION

ARMS automatically seeks for the first corner mark to get the job started faster. 4 Point Marks—Dual Axis Correction adjusts the cutline to compensate for minor print distortions. Use intermediate segment area marks to compensate for printer skewing on long prints.

VERSATILE, FLEXIBLE, DURABLE FOR HIGH PRODUCTION OUTPUT

Cut, Plot, Pounce—Choose from several types of blades, pens or pouncing tool. Cut from 1 mil thin film up to 50+ mil thick sandblast mask with ease. Order the two-pen model for maximum flexibilty and automated multi-function capability.

INDUSTRY LEADING CUTTING SPEED & PRECISION WITH TANGENTIAL CONTROL MODE

The FC7000 is the fastest in its class with cutting speeds up to 58.5 inches per second. Tangential Control Mode outperforms mechanical tangential systems in both speed and output quality. Within milliseconds sensors detect the blade tip position to lift and rotate it for the next cut line. Precision digital servos and control architecture enables cutting of text on vinyl as small as 1/16th inch.

HIGHER CUTTING FORCE—INTELLIGENT SOFT LANDING CONTROL

Delivers a maximum cutting force of 600 grams to cut tough materials. Graphtec’s Soft Tool Landing feature ensures quick, precise control so the tool gently lands on the material surface - this improves speed, reduces wear, and extends tool life.

CUTTING MASTER PLUG-IN INCLUDED FOR COMPLETE OUTPUT CONTROL

Design, print and cut layouts from Adobe Illustrator or CorelDRAW. Set registration marks, orientation, position, scaling, paneling, tiling. Set and save media type, line style, cutting conditions by layer or color. Auto-weld paths, optimize cutting order, set multiple passes and more.

WIDER MEDIA PATH MATCHES WIDE FORMAT PRINTER MEDIA

Extra width for easy loading of wide vinyl and print media sizes. Maximum Media Widths for the FC7000-160 is 72”. Configure for front or rear loading with multiple media brackets. Optional Media Basket is recommended to keep media clean and off the floor, and it reduces static build-up when cutting vinyl and other films.
