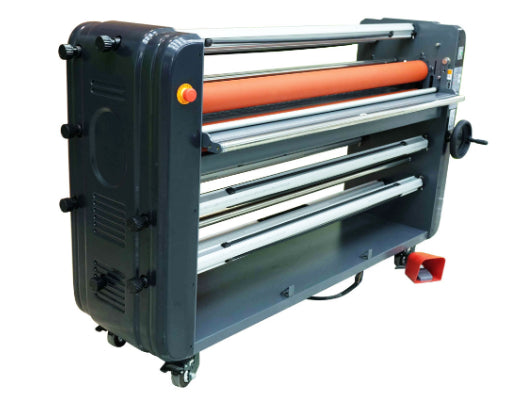

63" Wide Mounting Laminator and Encapsulator, Multi-functional

Original price $12,899.99 - Original price $12,899.99
Original price
$12,899.99
$12,899.99 - $12,899.99
Current price $12,899.99

Description

63inches Hot and Cold double sided laminator, Full-auto roll to roll, with Entire ABS Tooling Cover
Hurricane H Warm/ H Hot series is heavy duty Full-auto roll to roll Top-end model with ABS tooling side cover construction; Available for much pressure loaded on roller for special material application use; its entire drop down metal structure makes it much stronger. The accurate CNC metal cutting program secure align laminating and quality finishing.

The 63in wide mounting laminator and encapsulator offering industrial performance at exceptional value. With fully adjustable dual temperature, speed and pressure settings, this hot laminator is ideal for dual heat application use.

The machine is a multi-functional machine that can perform the following processes:
• High-quality lamination
• Panel mounting of images
• Mounting and laminating in one pass
• Encapsulating images.

Specification:
Max. Working Width: 1600mm (63in)
Variable Working Speed: 0-9m/min
Max. Nip Opening: 35mm (1.378in)
Working Temp.: 0-120℃ (248℉)
Alarm Temp.: 150℃ (302℉)
Roller Diameter: 120mm (4.72in)
Top Roller Material: Silicone rubber
Bottom Roller Material: Silicone rubber

Laminator
Drive Motor: AC110V 230V/120W
Power Consumption: 2380W
Power Requirement: AC110V/50-60Hz. AC230V/50-60Hz
Machine Size: 2020mm x 630mm x 1260mm (79.5in x 24.8in x 49.6in)
Packing Size: 2050mm x 770mm x 1450mm (80.7in x 30.3in x 57in)
Neight Weight: 312KG (686.4lbs)
Gross Weight: 400KG (880lbs)
