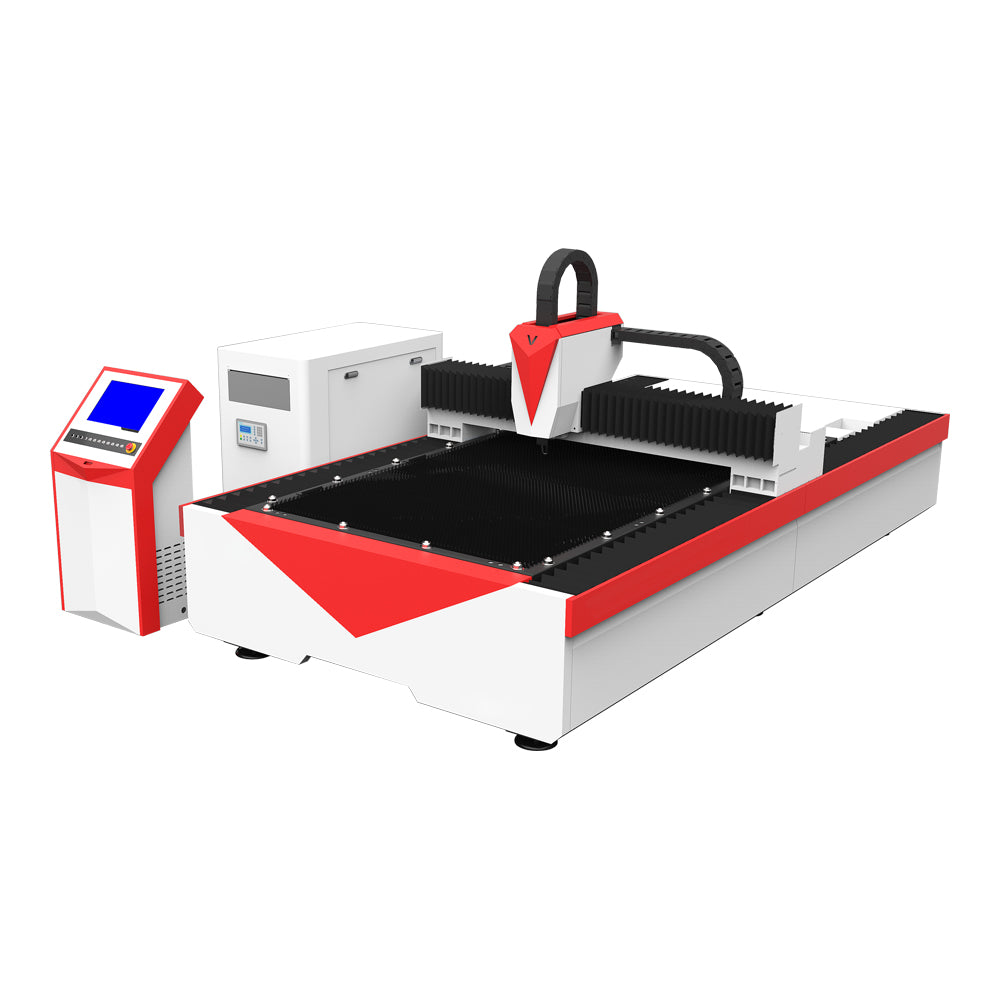

59" x 118" 1530 700W Nlight Fiber Laser Cutter for Metal Sheet Cutting

$78,513.00
$78,513.00
Shipping calculated at checkout.
    59" x 118" 1530 700W Nlight Fiber Laser Cutter for Metal Sheet Cutting

    Tech Specs

    Laser Cutting Machine integrates optical, mechanical and electrical in one, which adopts laser technology, computer control technology and high-performance CNC laser power system to process all kinds of metal sheet at high speed, high accurate, high efficiently cutting. Its products have smooth edge, small kerfs width and little heat effect.

    Open design series:
    1) Fiber laser cutting is the fastest process for thin sheet metal.
    2) "Clean cut" surface quality.
    3) Reflective materials aluminum also can be cut with ease.
    4) Parts process cost is very low.

    Equipment Character and Technology advantage
    • Using Imported Optical components, good beam quality, high efficiency electronic-optic conversion.
    • High ratio between quality and price, good reliability, long-term stability
    • High cutting precision, can meet all requirement of sheet metal processing technology.
    • Focal length automatic follow with cutting head, even if the material surface roughness and also can ensure cutting quality.
    • Kerfs smooth, perfect, no need clean.
    • Low operation cost, all material can cut by air only (If need faster cutting speed, using Oxygen).
    • Collecting trailer with wheel, light weight design, easy to clean material
    • Powerful smoking device , solve question of metal processing dust and bad environment
    • Using Smart mechanical mechanism, compact structure, no need take up large area.
    • Imported Germany Rexroth liner guide, YASKAWA servo motor drive, High precision ABBA ball screw, let the machine work perfect.
    • All screw and guide rail and other motor with auxiliary lubrication system together, use centralized supply lubrication way, effective ensure lifetime and working precision on each motor.
    • Use USA PMAC CNC control software , which can realize 8 axis multi-control , compatible with the full closed loop design, which can position the correct real moving distance, then make compensation , even after long-term using , the machine can work with high precision.

    700W N-light Fiber laser cutting parameter:

    Materials Carbon steel Stainless steel Al Brass

    Gas

    		 Oxygen Air Air Air

    Thickness

    		 Speed Speed Speed Speed

    (mm)

    		 (mm/s) (m/min) (mm/s) (m/min) (mm/s) (m/min) (mm/s) (m/min)

    1

    		 260 15.6 188 9.3 90 5.4 80 4.8
    2 160 9.6 80 4.8 40 2.4 38 2.3

    3

    		 80 4.8 20 1.2 12 0.72 13 0.78

    4

    		 30 1.8 10 0.6

    5

    		 25 1.5 5 0.3

    6

    		 20 1.2

    8

    		 15 0.9

    10

    		 10 0.6

    Equipment Configuration:

    Configuration Name Details Note
    Pulse Laser Power Supply system        Use Professional High frequency pulse laser cutting Power supply Power Invariability, stable performance
    Fiber laser system        Use IPG/COHERENT Fiber laser source Top quality laser source, more powerful and stable electronic -optical conversion up to 30%
    Laser light path system Use full sealed optical system Sealed Optical system, ensure
    High laser energy and mirror lifetime
    Positioning system Using P-MAC control and full closed loop design indicating laser accuracy Automatically cutting compensation, with long time cutting accuracy guarantee
    Automatic Tracking system Captive non-contact automatic tracking system Automatic adjustment cutting focus length, ensure the cutting quality
    Cutting Head System Use Unique OEM Precitec Laser Cutting Head Use Unique OEM Precitec Laser Cutting Head
    Lubrication system Centralized supply system Supply lubrication oil to working table and guide rail
    Driving and moving system all us Japan YASKAWA servo motor drive and Use famous Taiwan ABBA brand ball screw and Germany Rexroth guide rail, Germany Atlanta Rack and Pinon high speed, large torgue stable and reliable performance, high precision, convenient, maintenance, longer lifetime
    CNC system PC control, CNC laser cutting professional USA PMAC cutting software Programmable Multi-Axis Controller, compatible with closed -loop magnetic rule system, which ensure the high precision
    Support For Graphic format Compatible CAD, CORELDRAW, and other mapping software, support DXF/DWG/PLT graphics format Effective ensure lifetime and working precision on each motor unit


    Running Cost Analysis (for reference):

    Power Supply Consumption



    		 Laser 3.7 kw/h

    Total power: 3.7+4+6=13.7(kw/h)
    Total power consumption: 13.7 x 0.15=2USD/Hour
    Power price(assumed): 0.15USD/kwh
    Chiller 4 kw/h
    Machine tool 6 kw/h

    Gases Consumption (for cutting different material with different thickness, the consumption is different.)

    Assistant Gases (Purity 99.5%O2)

    		 3 m3/h

    Cost: Oxygen cutting 2.5÷5.5×3= 1.36USD/Hour
    Air cutting costs as low as 0.3USD/Hour
    1.Gas price(assumed): 2.5USD/5.5m3
    2.Workingcondition(assumed):0.8~2Mpa,continuous processing

    Consumable and spare parts consumption

    		 Focusing lens

    About 1piece/year

    Cost: 1600÷4000=0.4 USD/Hour
    1.Lens price(assumed): 1600USD/piece
    2.Working time(assumed): 4000Hours
    Protection lens About 2piece/week

    Cost: 25÷30=0.83 USD/Hour
    1.Lens price(assumed): 25USD/piece
    2.Working time(assumed) 30 Hours
    Nozzle 400 hours (according to actual use)

    Cost: 8÷400=0.02 USD/h
    1.Nozzle price(assumed): 8 USD/piece

    700W fiber running cost analysis



    Total cost:
    2+1.36+0.4+0.83+0.02=4.61USD/H

    1.This table takes N-light 700W laser as an example to make the running cost analysis of laser cutting machine;
    2. This tale carried out the analysis of power consumption, gas consumption and consumables consumption and so on. But it do not include the analysis of site rent, management cost, staff salary ,depreciation of machinery and so on;

    3.This table is only for reference since the specific consumption will slightly differ with different users under different conditions;



    Specification
    Fiber laser source  N-light Fiber laser from USA
    Laser wavelength  1070nm
    Laser power output rating  700W
    Cutting area  1500mm x 3000mm
    X-axis travel  600mm
    Y-axis travel  400mm
    Z-axis travel  100mm
    Working table  Fixed table with remote controller ,full cover design
    Control system  Cypcut controller
    Position accuracy  0.05mm
    Driving mode  Double rack and pinion driving, High Precision servo motor, a ball screw moving system and linear guide transmitting system
    Cooling system  original water chiller
    Other standard collocation  Golden Laser Metal nesting software, Dual-pressure gas route of 3 kinds of gas sources, dynamic focus, etc
    Laser head  Raytools Laser Cutting Head
    Idle/processing speed  42m/min; 15m/min
    Max cutting depth  8mm carbon steel, 4mm stainless steel,3mm brass
    Software  Laser Cutting Software(Patent by Golden Laser)
     Metal Material Nesting Software(Patent by Golden Laser) /optional PA and Lanteck CAD/CAM software
    Format supported  PLT, DXF, AI etc
    Power supply  380V 50Hz/60Hz
    Total Power consumption  12KW
    Floor space  1600mmx 1400mm x 1900mm(63in x 55in x 74.8in) (machine dimension)
