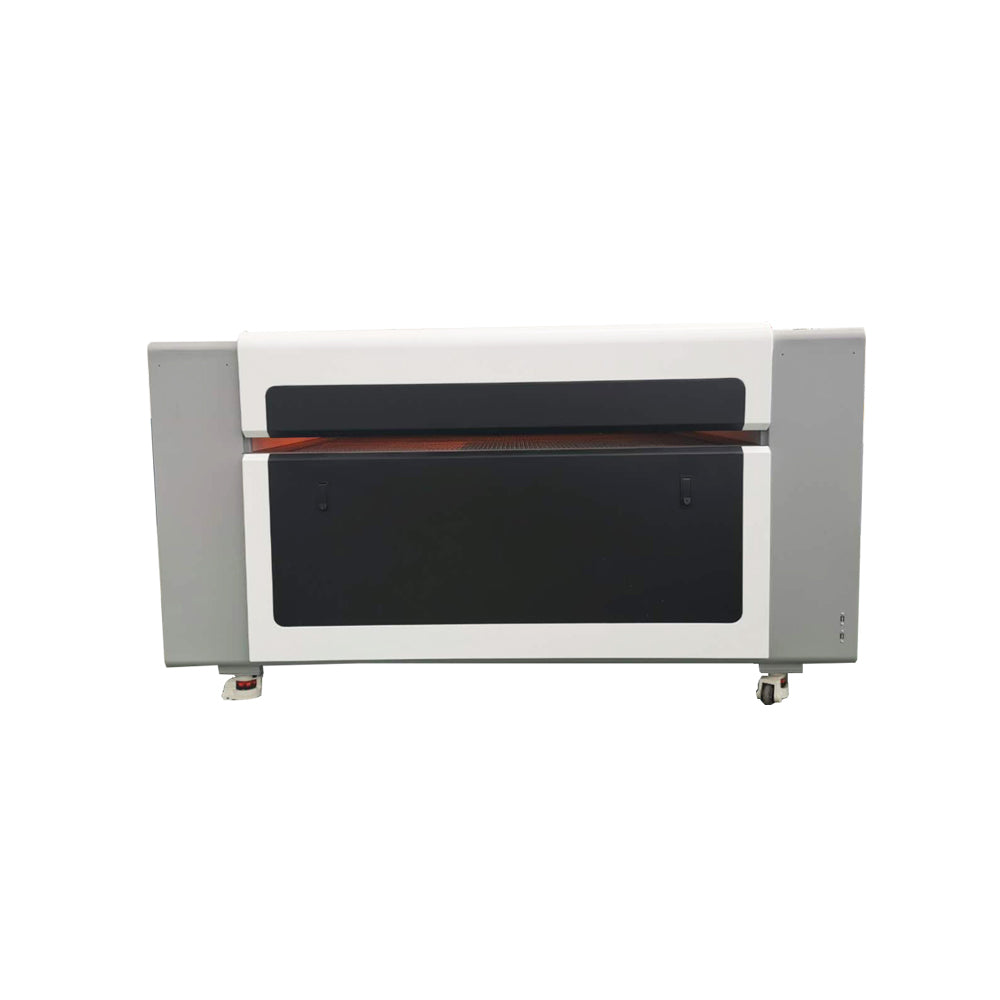

51" x 35" 1390 Luxury Laser Engraving and Cutter, with RECI W6 130W Laser Tube

Original price $8,089.00 - Original price $8,089.00
Original price
$8,089.00
$8,089.00 - $8,089.00
Current price $8,089.00

Features

• High precision equilibrium linear guide ensures the precise processing effect;
• Adopt the super fine cutting technology, which has features of extensive material processing,
smooth cutting edge and burr - free;
• Laminated Safety Glass;
• Original Singapore imported lens with molybdenum base, making the equipment produce smaller facula and
stronger cutting force;
• Exhausting, absorbing and assistant blowing systems solve the problem that troubles the laser equipments manufacturing industry for years;
• The laser cutter is equipped with aluminum strip shape platform;
• This machine uses USB port to transmit data, it is equipped with large internal memory capacity,
• Adopts high quality RECI CO2 glass laser tube.

Advantages

• It can make delicate and complicated designs on acrylic, wood and PVC and so on;
• Avoid polishing, processing high speed, and high precision;
• Glass viewing windows creating a safe enclosure for laser processing;
• Original Singapore imported lens can greatly improve working efficiency and reduce cost;
• Exhausting, absorbing and assistant blowing systems extend the life of the laser tube;
• Aluminum strip shape platform can bear heavier materials, such as acrylic, wood and much more non – metal materials;
• Large internal memory capacity improves the working speed with greater efficiency;
• With a fine cutting effect and price advantage.

Used for:

This high precision laser cutting machine can make delicate and complicated designs on acrylic, wood and PVC and so on for the advertisement, handicraft industries etc. Servo motor is optional in high - end applications.

Benefits

• 51" x 35" (1300mm x 900mm) working area;
• Up to 23.6" IPS (600mm/s) high working speed;
• Pass-through front and rear doors to accommodate long work pieces;
• Three unique protection functions, i.e. anti-interference function, water - protective function and power cut - off function ensure longer working life, safety and effectiveness.

Specifications

Model
LCM-BY-Z1390-130W
Maximum Cutting Area
51" x 35" (1300mm x 900mm)
Laser Power
RECI W6 CO2 glass laser tube 130W-160W (Normal lifespan: about 10000 working hours)
Cutting Speed
15.7" (400mm) / s (Adjustable)
Maximum Cutting Thickness
1.2" (30mm) (Acrylic)
Resolution Ratio
0.0064mm
Positioning Precision
0.0009 (0.025mm)
Power
1250W
Cooling Method
Water cooling and protection system
Supported Image Formats
BMP, PLT, compatible with many file formats for Windows OS, such as AI, CorelDraw, Photoshop, AutoCAD, etc.
Cutting Software
Lasercut 5.3 engraving software
Interface
U disk, enternet
Voltage
AC110V±10%,60HZ
Control system
RuiDa
