50W CO2 Laser Engraving Machine 12" x 20" Work Table with Y-axis Rotary Roller

Original price $1,999.00 - Original price $1,999.00
Original price
$1,999.00
$1,999.00 - $1,999.00
Current price $1,999.00

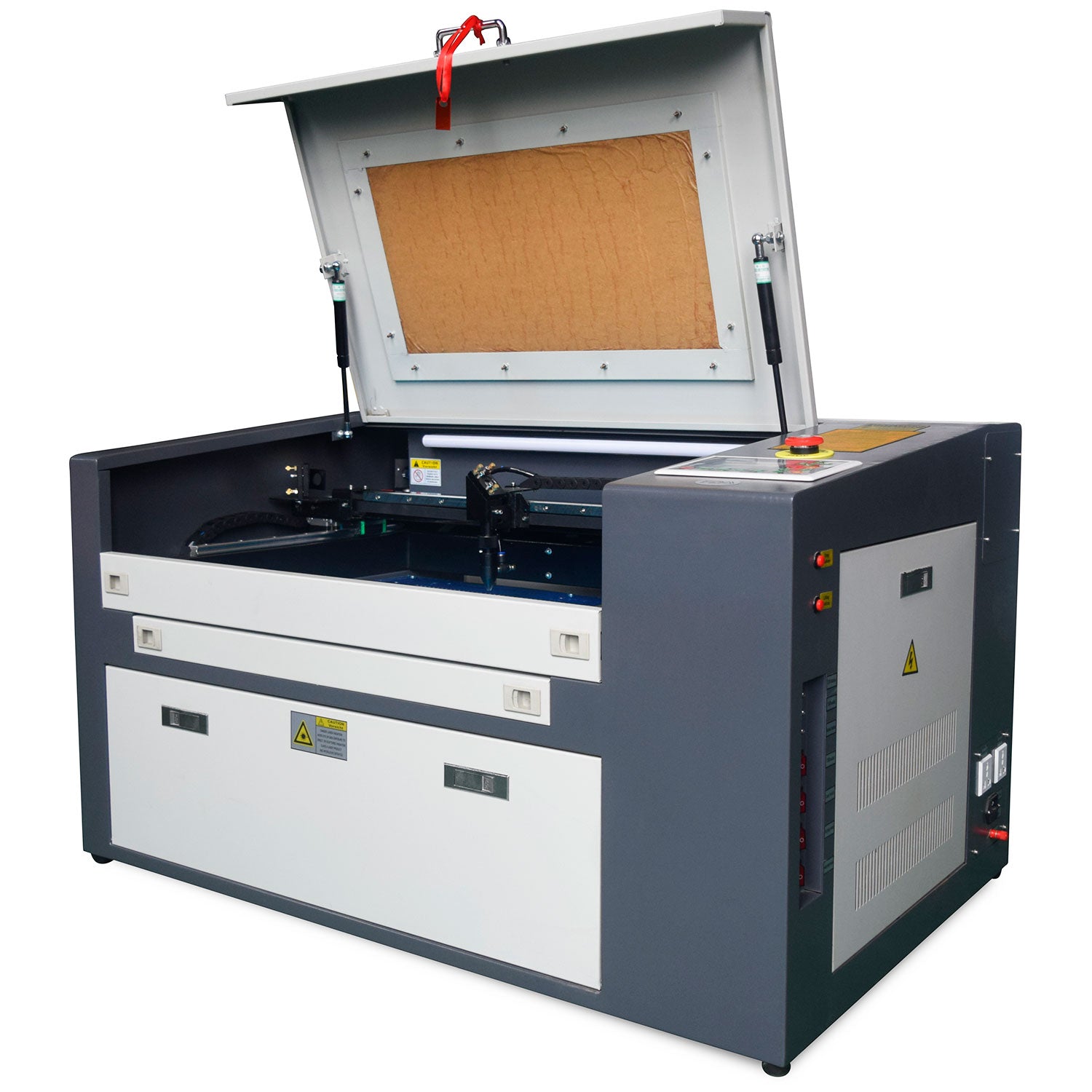

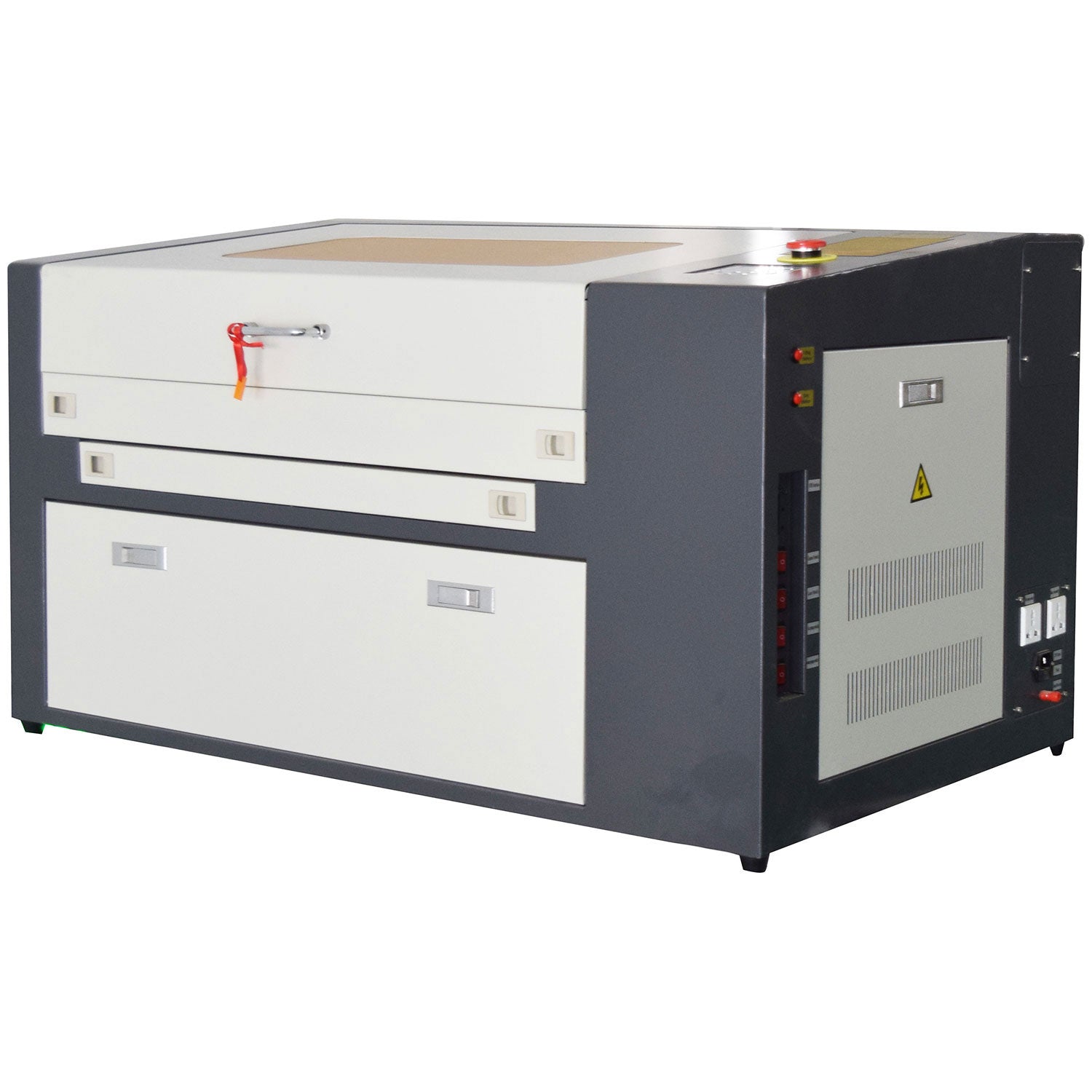

50W CO2 Laser Engraving Machine 12" x 20" Work Table with Y-axis Rotary Roller
This 50W CO2 Laser Engraver integrates a lot of upgraded and advanced technologies, all of which guarantee the good quality of high precise and speed. It is a suitable machine to process various nonmetal materials including: acrylic, MDF, plywood, paper, plastic, fabric, leather, rubber, ceramic, tile, glass, marble etc.

Features:
1. Quality CNC machined parts for durability Guaranteed
2. Upgraded control board for more accurate currency adjustments
3. Powerful exhaust fan for fumes and smoke extraction
4. USB port to connect the engraver
5. Windows 8, 7 (64 or 32 bit), XP, 2000 compatible (NOT compatible with iOS system)
6. Y-axis Rotary Roller can do the popular stainless steel travel cup Engraving.

Product details:
The 12" x 20" (300x500 mm) workbed gives you plenty of space to work on wood, rubber, plastic, paper, fabric, leather, ceramics, tile, fiberglass, marble, stone, and more- -even before you open the integrated pass-through doors that permit you to work on even larger pieces!

Specification
Laser power 50W
Laser Type CO2 Sealed Glass 10.64 um
Voltage AC110V ± 10%, 60HZ
Support Software LightBURN, CorelDraw, AutoCAD, Photoshop, etc.
Control System RDC6442G controller
Working Area 12" × 20" (300 mm × 500 mm)
Working table Fixture Aluminum Platform
Max. Engraving Speed 11-3/4"/s (300 mm/s)
Max. Cutting Speed 3/8”/s (10 mm/s)
Engraving Thickness 0 - 3/8" (0 - 10 mm) depends on material
Locating Precision ± 0.01 mm
Resolution Ratio ≤ 2500 dpi
Min. Character Size 1 mm × 1 mm
Min. Character Letter 2 mm × 2 mm
Operating Temperature 41 ℉ - 122 ℉ (5 ℃- 50 ℃)
Data Transfer Interface USB 2.0
System Environment Windows XP/2000/7/8/10
Graphic Format Supported Files CorelDraw Identify (BMP, JPEG, AI, PLT etc.)
Cooling Type Water Cooling
