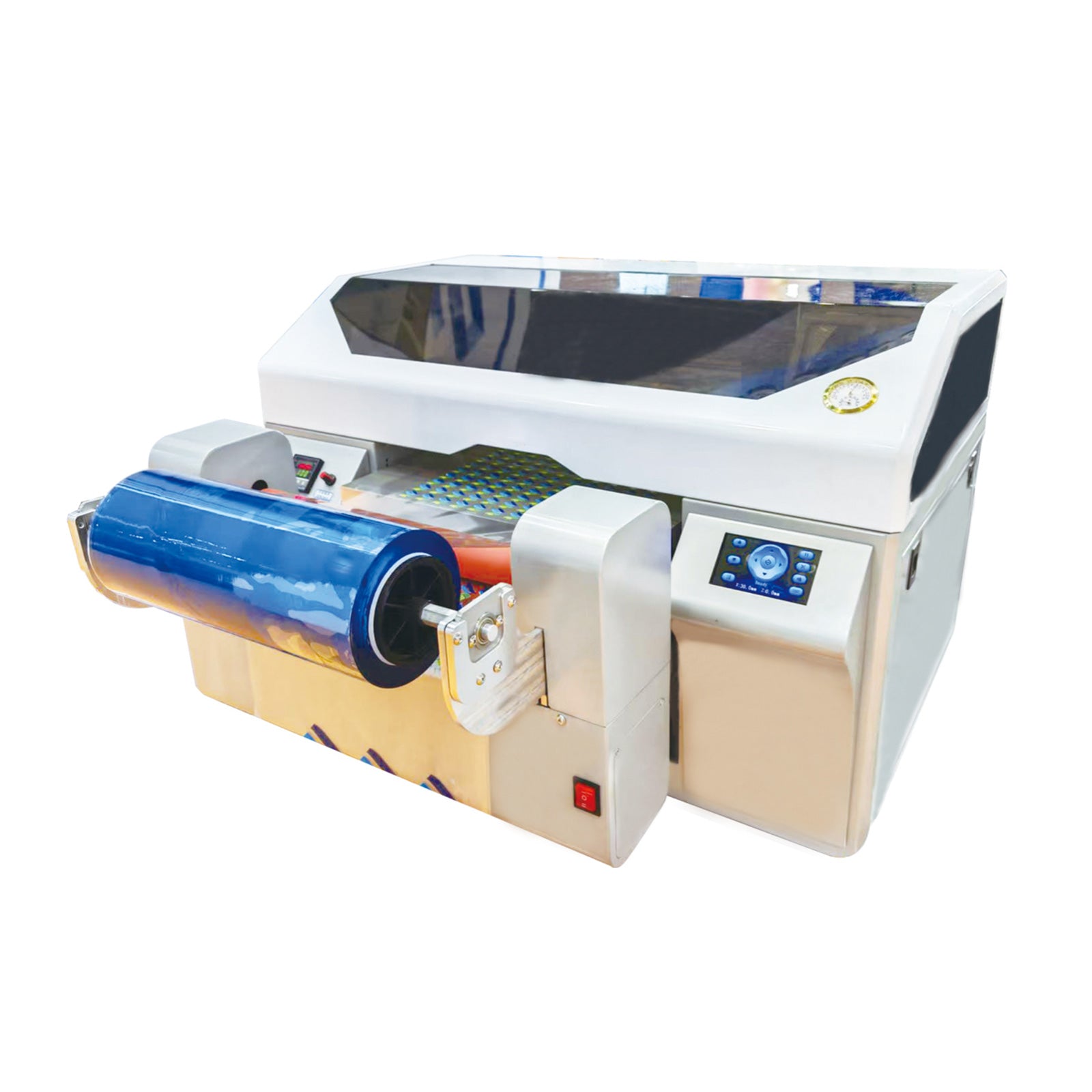

4050 UV Flatbed Printer and 12Inch UVDTF Desktop Direct to Substrate Roll Printer Combo, All-in-One Hybrid Printer

$7,798.70
$7,798.70
Shipping calculated at checkout.

    Features

    • Industrial technology tailored to individual needs;
    • Unlimited material, everything can be hot;
    • The white and colored oils come out together;
    • Automatic feeding and discharging;
    • Automatic alarm;
    • Fine picture quality, high stability.

    Specifications

    Parameter Specifications
    Product UV DTF Printer
    Machine Number UV DTF-4050
    Printhead 1 x Epson DX7 / 2 x Epson XP600
    Printing Speed 8 pass: 1.5 m²/h (16.1 ft²/h) / 2.5 m²/h (26.9 ft²/h)
    Printed Materials UV DTF Film
    Print Width Max. 400 x 500 mm (15.7 x 19.7 in)
    Grating Colloidal grating
    Motor System Belt drive
    Delivery & Feeding System Damping unwinding system + electric dual power retracting and unwinding system
    Suction Platform Independent intelligent adjustable suction platform
    Ink Supply System Siphon (positive pressure)
    Ink Tank Capacity 350 ml (11.8 oz)
    RIP Software Standard: MainTop; Optional: photoprint / Roll N / Photo factory
    Data Interface Gigabit Ethernet port
    Computer Operating System Windows 7 and above
    Software JINFENG / HOSON
    Power Supply Configuration AC 220V / 110V (±5%), 50Hz / 60Hz
    Operating Ambient Temperature 22–28°C (71.6–82.4°F), 35%–80% RH
    Power 1500 W
    Machine Size 850 x 700 x 400 mm (33.5 x 27.6 x 15.7 in) / 65 kg (143.3 lbs)
    Package Size 990 x 595 x 720 mm (39 x 23.4 x 28.3 in) / 85 kg (187.4 lbs)
