Full S4-4 Screen Printing Package Kit

Screen printing is arguably most versatile in printing, almost everything can be used as substrate. Our company provide this 4 color 4 station screen printing package with all stuff needed by a small screen printing workshop. we show buyers skilled operation and application by words and video, achieving integration of technique ,equipment, material and service.

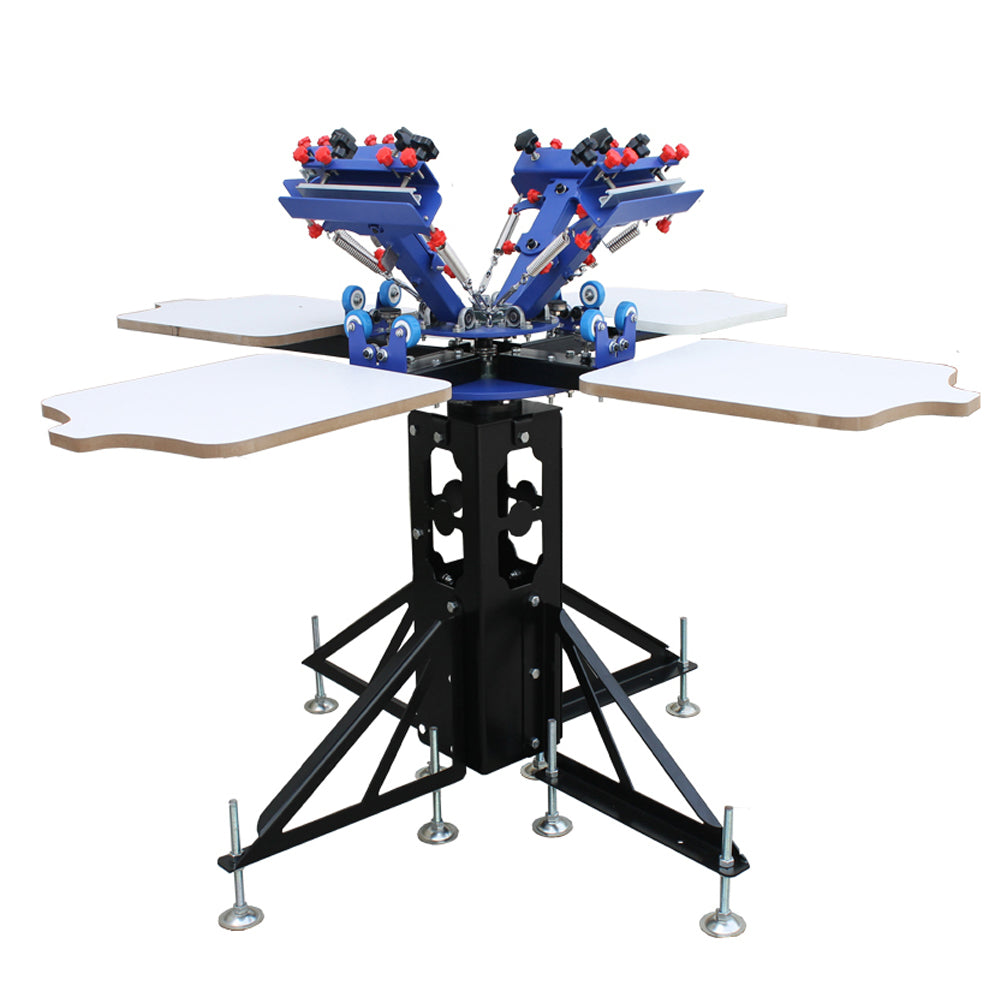

4 Color 4 Station Screen Printing Machine

Use it to press onto: 　
*Knitwear
*Paper & wood
*Plastic
*Glass and ceramic *Metal
*Sign
*Circuit board
*Leather
Specifications:
Machine dimensions: 67"x 67" x 37" (170x 170x95cm)
Pallet area :22"x18"( 55 x 45cm)
Package: 4 cartons
Gross Weight: 209Lb (95kg)

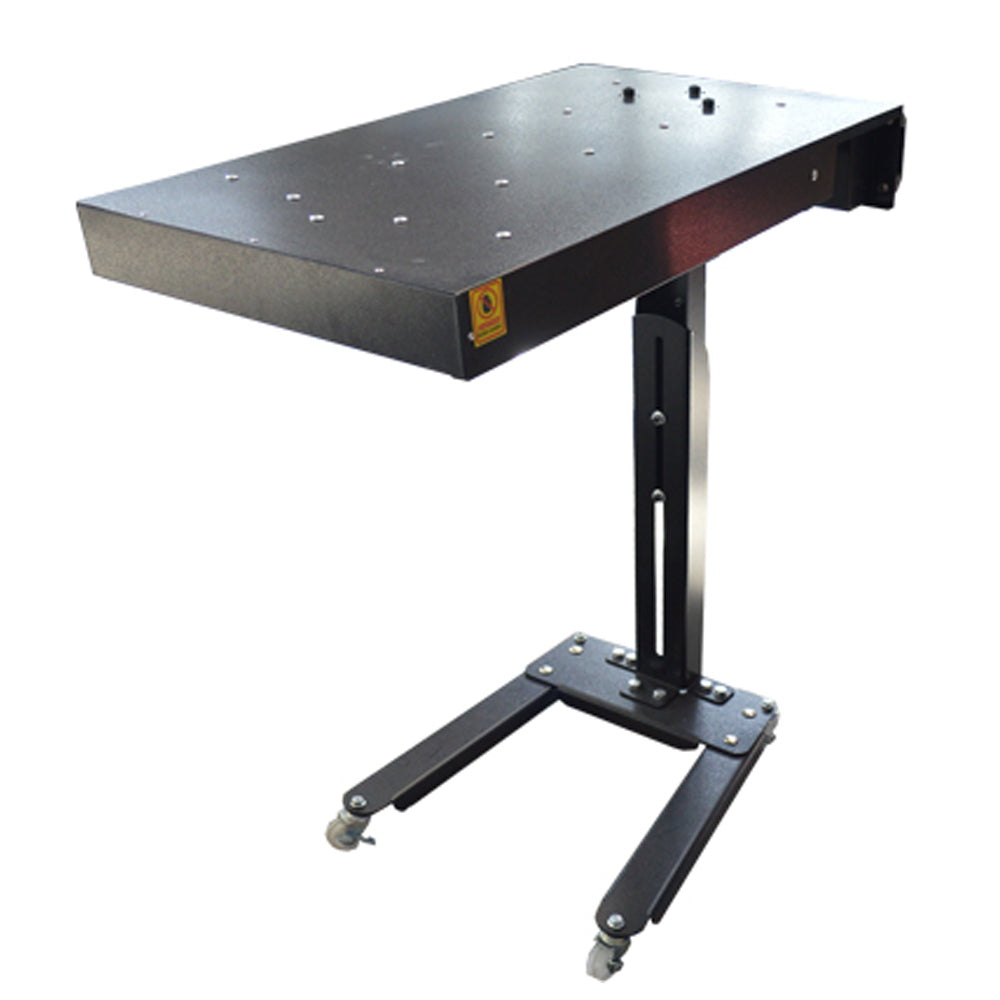

1800W Flash Dryer
Parameters:
Input voltage: 110V,220V
Power: 1800W
Baking area reaches 18"x24" (45x60cm).
Weight: 75Lb (34kg)
Crate Dimension: 34"x20"x14"(86x51x36cm)

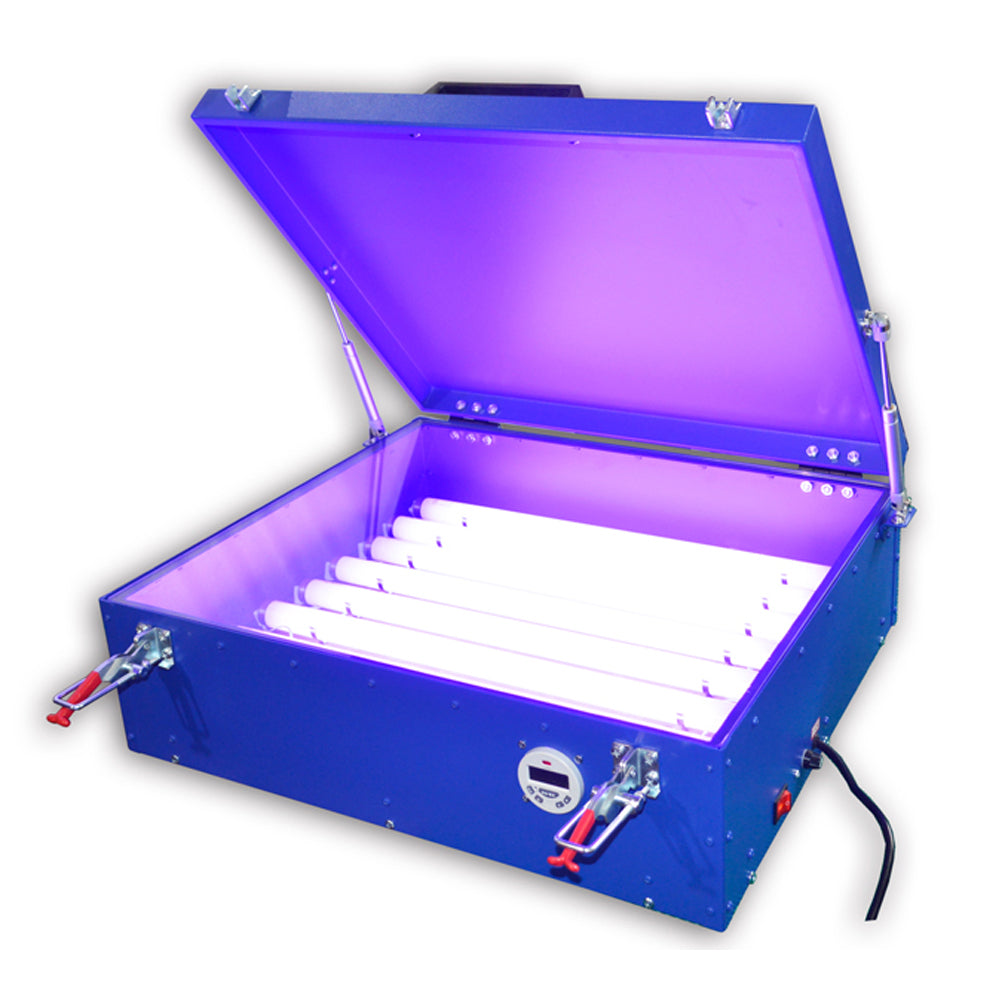

UV Exposure Unit
Specifications:
Voltage: 110V,220V
Exposing area: 21" X 25"
Power of light tubes: 160W
Amount of light tubes: 8
Time range: 0s-999s
Crate Dimensions: 34"x 26.6"x12"(875 x 675 x 310 mm)
Gross Weight: 106 lbs (48 kg)

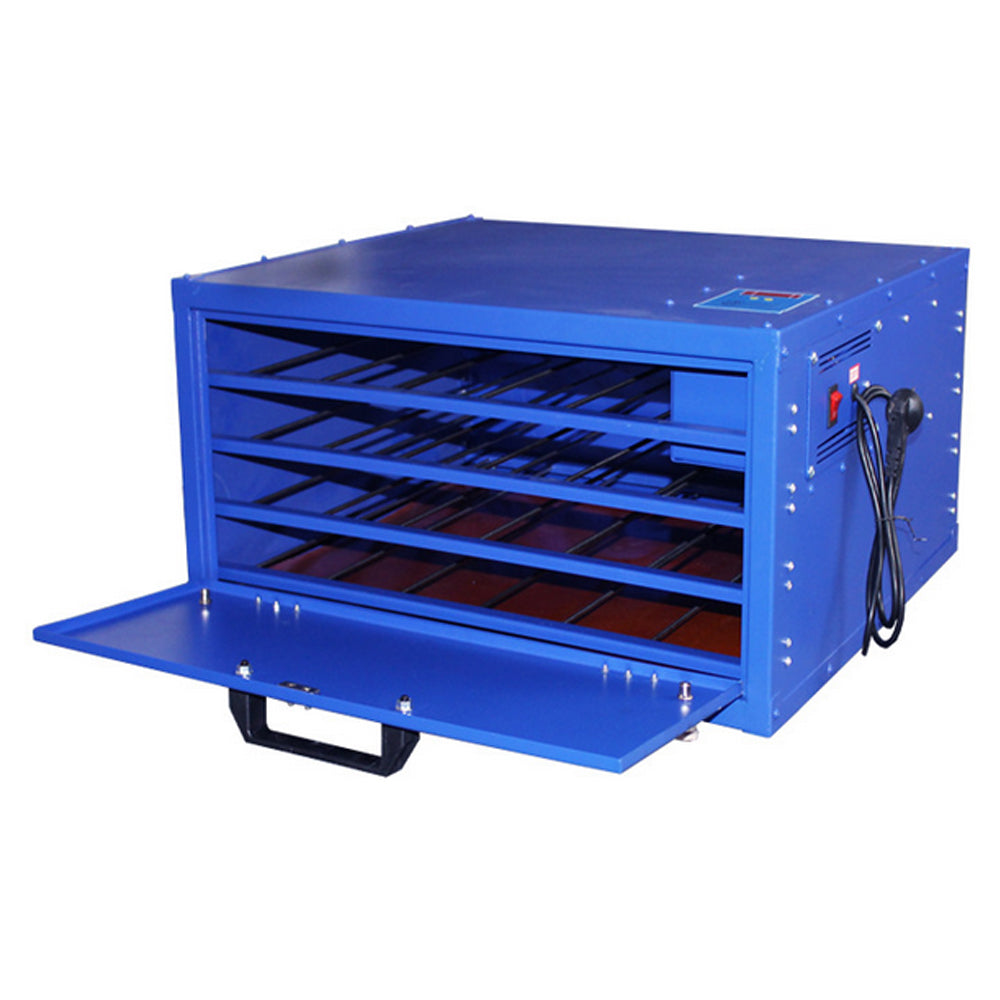

Screen Drying Cabinet
Input voltage: 220V/110V
Power: 800W
Max frame size: 25"x21"x1.8" (64x53x4.5cm)
Max. amount of drying plate: 4 pieces
Highest temperature:126F(52°C)
Net Weight: 62LB(28KG)
Gross Weight: 87LB(39KG)
Machine size: 35.5”x23.6"x15.8" (90*60*40cm)
Package size: 36"x25.6"x17.3" (92*65*44cm)

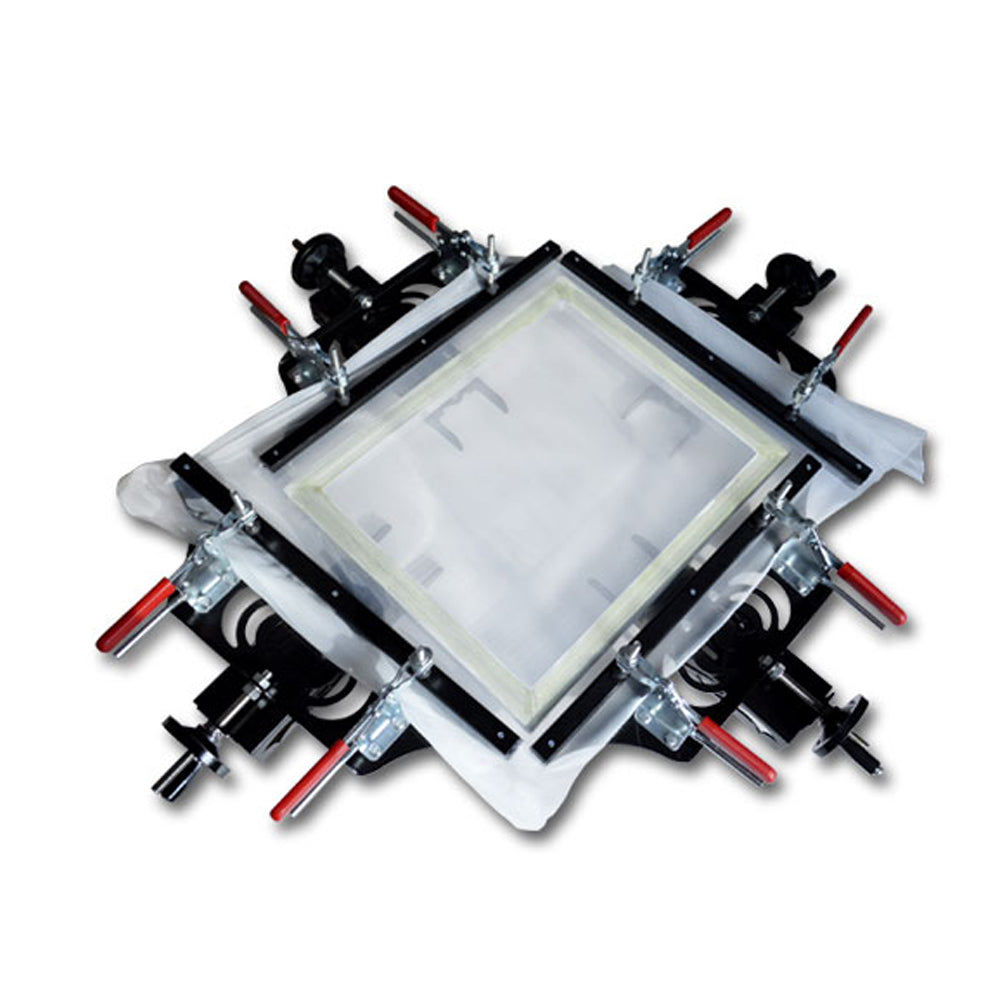

Hand Screen Stretcher
Screen stretching is the most important procedure to make screen. Stretching tool and technical define the quality of emulsion coating ,screen stretching and screen printing.
Specifications:Crate dimension: 28"*19"*11"(70 x 48 x 28CM)
Net Weight: 42Lb(19kg)
Gross Weight: 50Lb(23kg)

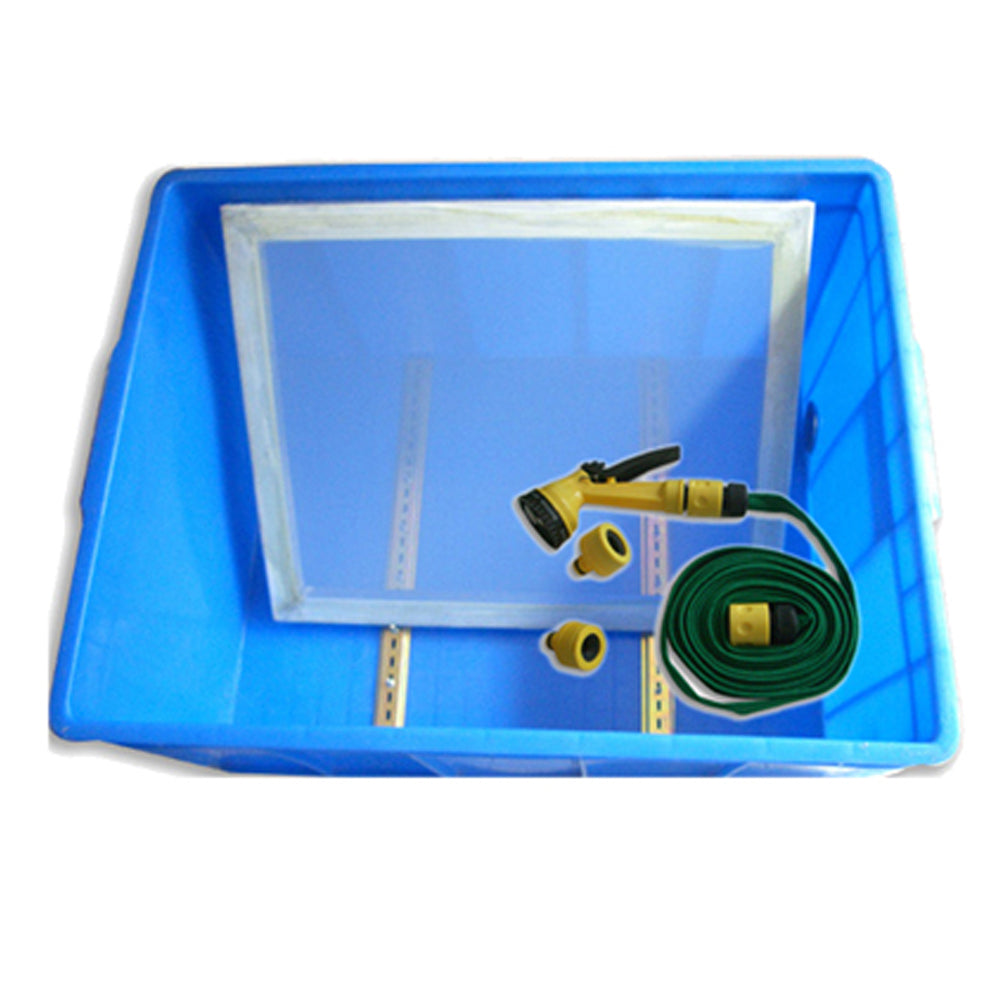

Washout Tank & Water Gun
NOTE: All the items related in the following are all well packaged into one box;

Washout is one of the most important processes during screen printing. Based on the customer and market, our company R&D this washout tank furnished with water tank, automatic pressurizing water spray gun and screen frame clapboard, economical, multifunctional, convenient to use.

Specifications:
Internal dimension: 26"*20"15"(66*50*37CM)
Crate dimension: 31"*24"*17"(78*60*44CM)　
Net Weight: 15LB(7KG)
Gross Weight: 20LB(9KG)

Application:

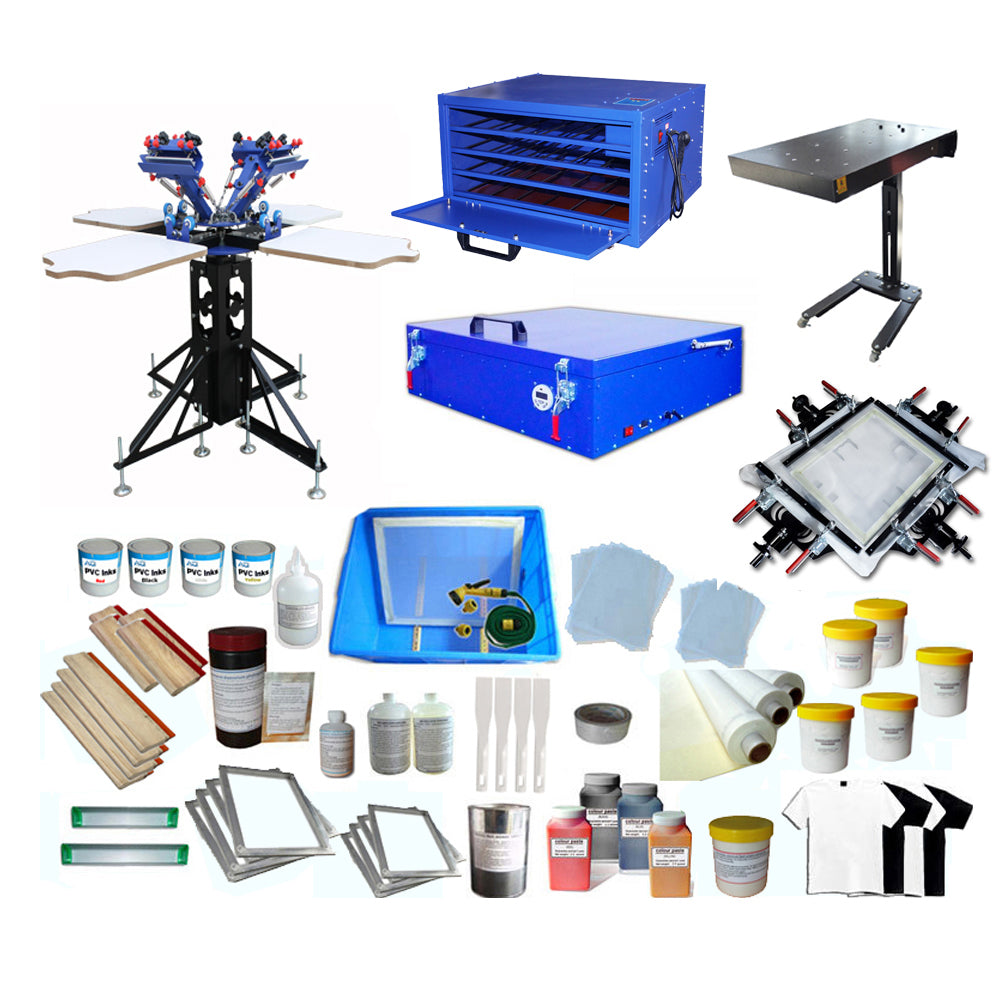

Item Included:

1) 1 Four color Four station screen press (006526)
2) 1 Flash dryer (006042)
3) 1 UV exposure unit (006002)
4) 1 Screen drying cabinet (006006)
5) 1 Hand screen stretcher (006504)
6) 4 Colors printing materials kit （006532） which includes the following items:

01)1 Washout tank （006008）
02)1 9.5"Emulsion Scoop Coater （007002）
03)1 14"Emulsion scoop coater （007001）
04)20 sheets of A4 transparent Film （007003）
05)20 sheets of A3 transparent Film （007004）
06)1.39X3Yard 60#screen fabric （007202）
07)1.39X3Yard 100#screen fabric （007204）
08)1.39X3Yard 200#screen fabric （007209）
09)4 10.5"x15" Aluminum screen frame （007241）
10)4 16"x20" Aluminum screen frame （007261）
11)1 bottle of Screen frame adhesive （008000）
12)1 set of Photographic emulsion （008401)
13)1 bottle of Remover Powder (008417)
14)4 13" (33cm) Squeegee (007347)
15)4 18" (46cm) Squeegee (007350)
16)4 1#Stainless Steel Spatulas (007018)
17)1 Aluminum Frame Tape (008433)
18)3 bottles of White Paste (008242)
19)2 bottles of Transparent base (008252)
20)1 bottle of Scarlet Pigment (008060)
21)1 bottle of Yellow Pigment (008061)
22)1 bottle of Blue Pigment (008062)
23)1 bottle of Black Pigment (008064)
24)1 bottle of Ink thinner (011032)
25)1 bottle of Hardener (008440)
26)1 bottle of Pallet adhesive (008450)
27)1 bottle of Red PVC ink (008014)
28)1 bottle of Yellow PVC ink (008015)
29)1 bottle of Black PVC ink (008018)
30)1 bottle of White PVC ink (008019)
31)4 T-shirt (002087) (color random)

Package:

1#66x66x31cm
2#60x40x27cm
3#62x52x24cm
4#66x43x41cm
5#95x53x27cm
6#87x86x24cm
7#94x68x42cm
8# 68.5x64.5x21cm
9#78x61x46cm
2. Gross weight: 318 kg
