    3D Effect Solution for Clothing/T-Shirt

    Tech Specs

    Description:

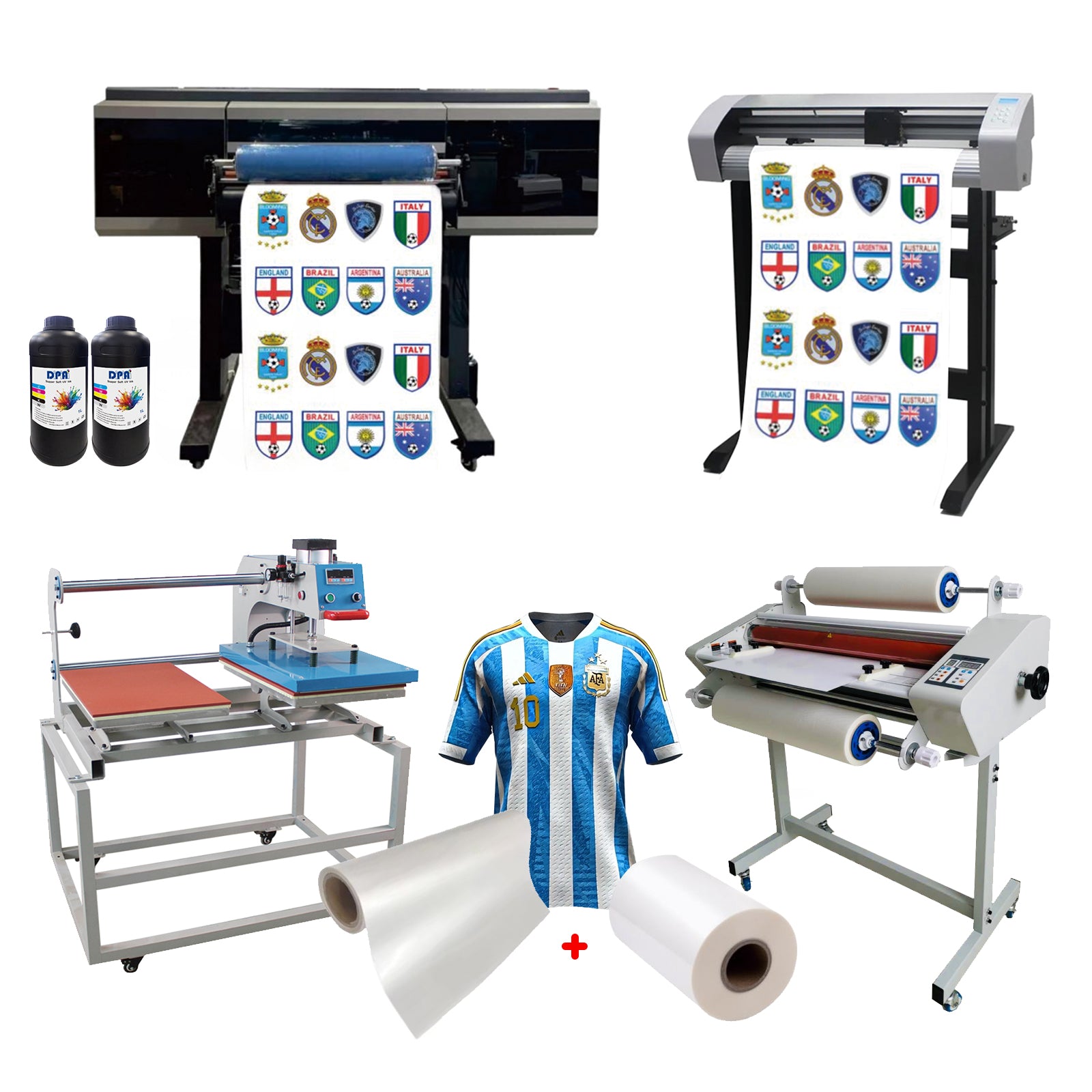

    3D UV DTF Printer breaks the limits of printing products height, shape and size for Flatbed Printer, almost can transfer to clothing.

    3D UV DTF Film is using a new UV printing technology. We have improved the existing UV machine so that the pattern can be printed directly on the film. You can print out the design you want and easily transfer the film to clothing.

    Specification:

    Printhead 3H Epson  i3200U 4H Epson i3200U
    Print accuracy & speed 6pass 360*2400dpi 4.5m²/h 5.7m²/h
    8pass 360*3600dpi 3.1m²/h 3.8m²/h
    12pass 720*2400dpi 1.8m²/h 2.3m²/h
    Enviroment conditions Temp. 20~28°C Humi. 65%~75%
    Ink type and configuration UV Pigment Ink (C/M/Y/K/W)
    Working Power supply 220V 50Hz
    Ironing temperature 160~170°C Cold/Hot to tear
    Power Printer 350w Powder dryer 3400w
    Three heating sections Pre-heater, printing bed heater, rear heater 30~65°C
    Printer size 1380x860x1000mm
    Printer weight 168kg
    Max. printing width 300mm
    Package size 1460x890x800mm
    Printing software Photoprint
    Language English


    Advantages of UV DTF:

    3D UV DTF can save time and cost, don't need batch typeset printing, produce at any time, saving time.
    No quantity requirement, even 1 piece also can be customized.
    Save labor & materials, reduce manufacturing cost.
    No need for batch typesetting and printing, production at any time, saving production time.
    Waterproof, high temperature resistance, scratch resistance.
    The fastness is many times higher than that of Screen Printing, no glue and no waste discharge.
