3600W Table - Mounted Hot Air Welder

$2,987.00
$2,987.00
Shipping calculated at checkout.
    3600W Table - Mounted Hot Air Welder
    3600W Table - Mounted Hot Air Welder

    Tech Specs

    Features

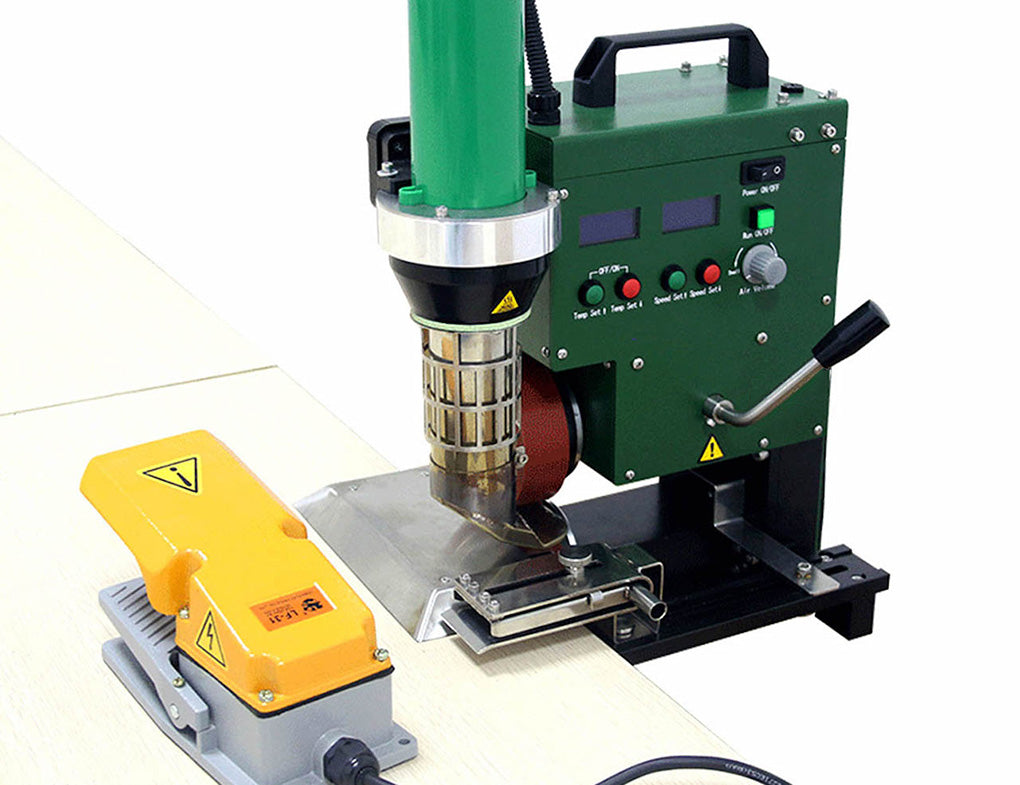

    ◎ Simple installation, can be mounted onto nearly any table.
    ◎ Welding speeds of up to 12 m (39 ft.)/min.
    ◎ User friendly operating system.
    ◎ Perfect design for heat-seaming of banner, tarpaulin and tents.

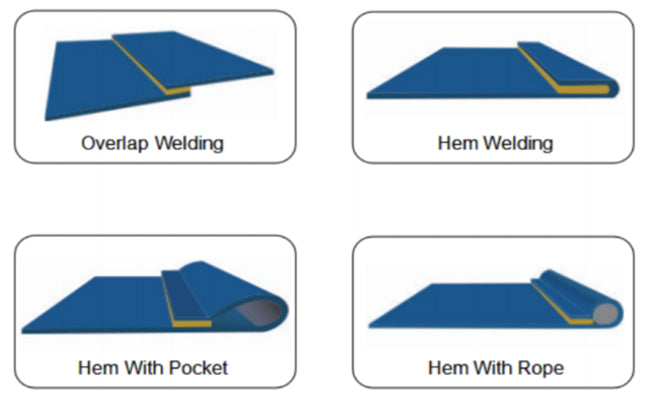

    ◎ It can be applied on wide range of applications such as connecting keders, grommet hems, welding pocket and overlapping.

    Benefits

    1. Intelligent control system, easy to operate
    2. Adjustable pressure wheel.
    3. Can be mounted onto nearly any table, freely-adjustable,  quick-clamp lock.
    4. Convenient for customers use, use ruler to location.

    Specifications

    MODEL CS-JC-3600-TM
    Voltage AC220V 50HZ
    Power
    3600W
    Heat Temperature 50-620℃ (122- 1148 °F) Adjustable
    Air Flow 70%-100% Adjustable
    Welding Speed 12 m (39 ft.)/min
    Overlap Width 1-43 cm (0.4-17 inches)
    Open Welding Width 180 cm (71 inches) (welding width + opening width)
    Nozzle Width 30 mm (1.2 inches)
    Dimensions (L x W x H) 350 x 350 x 560 mm (13.8 x 13.8 x 22 inches)
    Net Weight 20 kg (44 lbs) Including supporting frame
