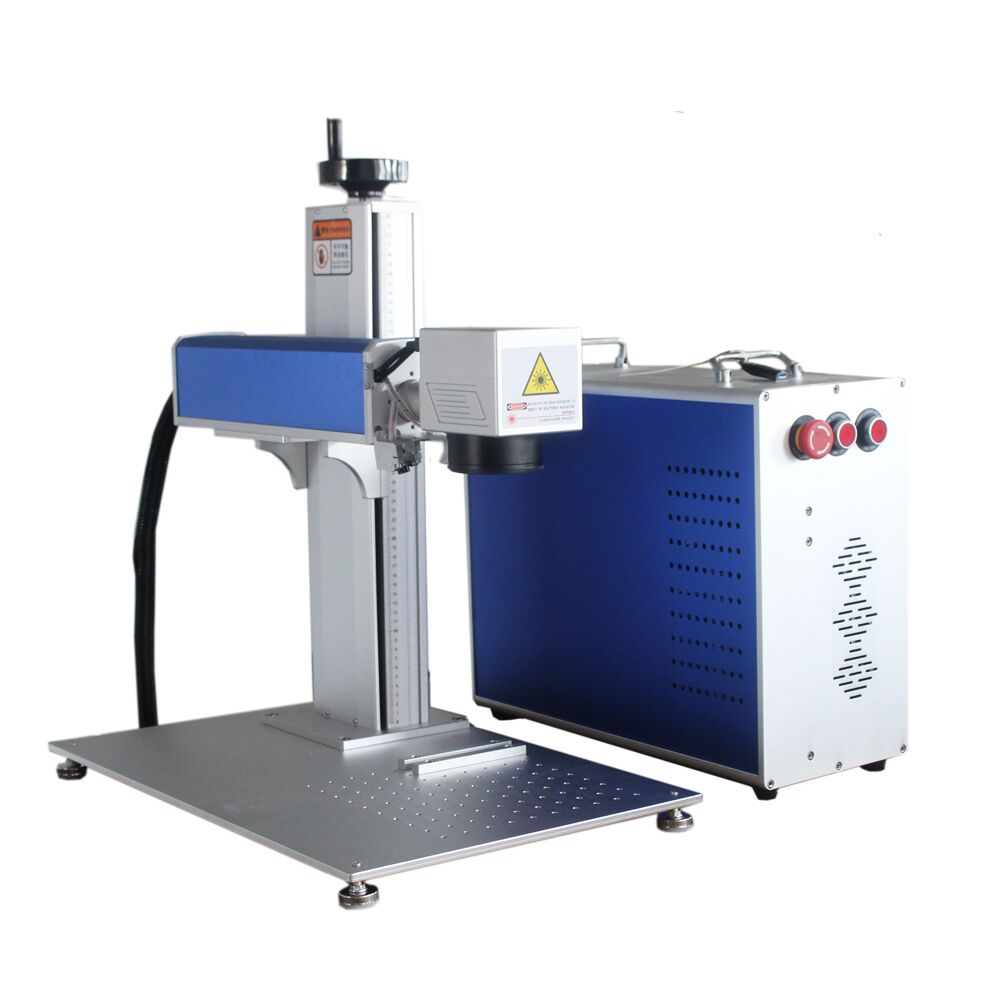

30W MOPA Fiber Laser Marking Machine for Metal Color Marking, with Red Dot Pointer, Rotation Axis, EzCad2, Compatible LightBurn

$5,699.00
$5,699.00
Shipping calculated at checkout.
    30W MOPA Fiber Laser Marking Machine for Metal Color Marking, with Red Dot Pointer, Rotation Axis, EzCad2, Compatible LightBurn

    Tech Specs

    Feature:
    1. Adopts the high quality, high energy, high stability fiber laser source, prime precision optical galvanometer assembly and the industry’s top software.
    2. Life of the laser can be up to 100000 hours.
    3. Compact, lightweight, simple interface, flexible and adjustable processing direction.
    4. High precision scale
    5. Runs without consumable spare parts, no need maintenance, great for continuous working.
    6. Computer System Requirements: Windows XP, Vista, 7, 8, or 10
    7. Easy operation software, compatible with LightBurn, PHOTOSHOP, CORELDRAW, AUTOCAD
    8.Rotary axis is included, you can mark on regular cylinder or inside / outside ring.

    Specifications

    Model  LMM-DR-30W-M
    Fiber Laser Source  JPT M7
    Output Power  30W
    Laser power supply  0.5KW, 110V / 60HZ
    Work Area  175mm x 175mm(6.9" x 6.9")
    Laser Wavelength  1064 nm
    Min. Beam Quality (Max. M²)  1.4
    Max. Pulse Energy  0.8 mJ
    Max. Marking Speed  275.6 ips (7000 mm/s)
    Laser Frequency  1–4000 kHz
    Pulse Duration  2–350 ns
    Beam Diameter  7±0.5 mm
    Software  EzCad2
    Compatible Operating Systems  Windows XP, Vista, 7, 8, or 10
    Rotary Axis  Yes
