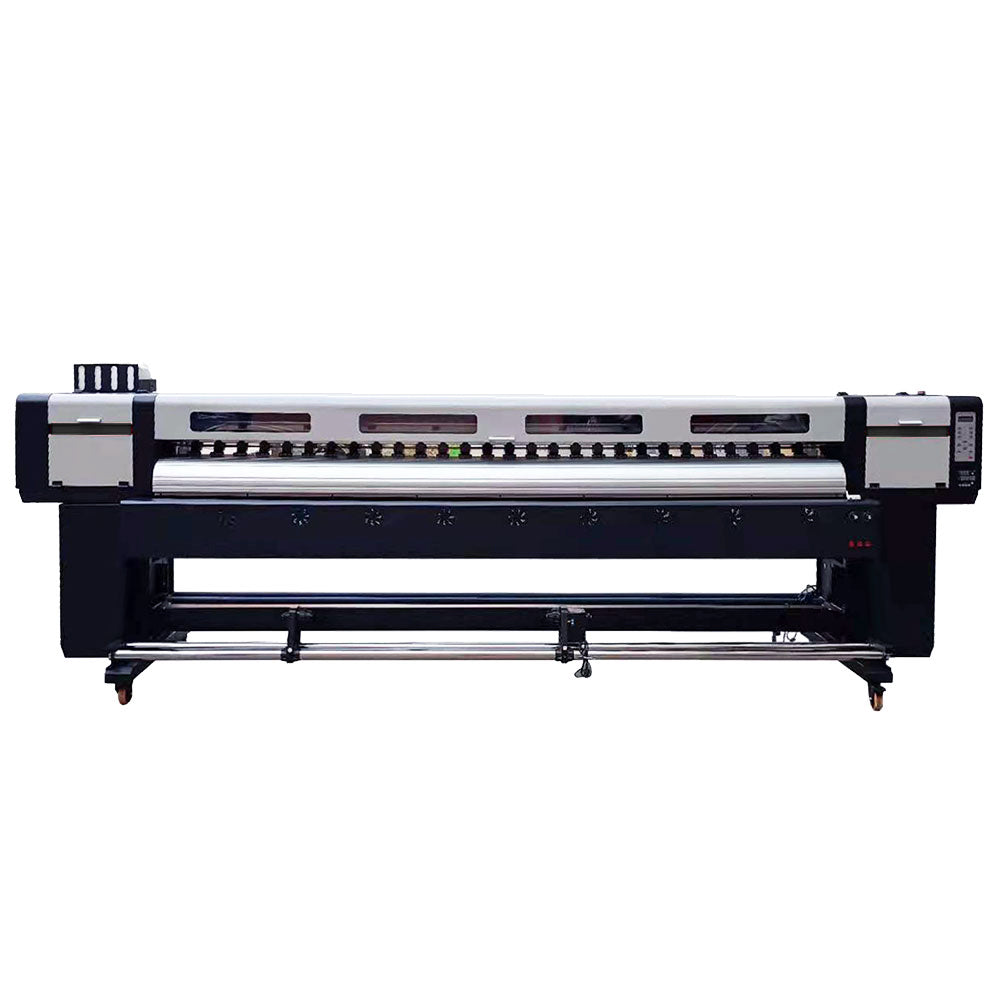

3.2m Roll to Roll UV Inkjet Printer with 2 Epson I3200U Printheads
3.2m Roll to Roll UV Inkjet Printer with 2 Epson I3200U Printheads
Product Description:
1.The main beam adopts the latest bridge design scheme, and the structure is more perfect and stable.
2.Hiwin silent linear guide, less noise, longer life.
3.the car anti-collision function, greatly reducing the chance of accidental injury to the nozzle.
4.The trolley adopts the Raytheon servo motor, which drives the linear decoding with high precision, with small error and more stable performance.
5.The intelligent drying system is synchronized with the printing, that is, it is dry, safe and energy-saving.6.one central axis, platform partition suction, make paper more stable and more accurate.
7.lifting smallframe, according to printing supplies, free to adjust the height of the nozzle,easy to adjust.8.lack of ink, paper shortage alarm system, more intelligent, humane.
9.HOSON Gigabit network port board, high performance, high precision, high speed.
10.GigabitEthernet port data transmission, anti-interference, transmission stability is not interrupted, paper is not stuck.11.2.5Llarge ink cartridge design, secondary ink system, long-term printing and continuous ink.
Specification:
| Print Head | 2pc I3200 |
| Print speed | Draft 3pass: 40m²/h |
| Production 4pass: 30m²/h | |
| High quality 6pass: 20m²/h | |
| Ink type | UV ink |
| Ink supply method | 2.5L large ink bottle continuous system, lack of ink alarm |
| Width | 3200mm |
| Material type | Canvas, sticker, flex banner |
| Head height | from 2-8mm stepless adjustable |
| Heating system | lnfrared segment heating,air drying double drying |
| Anti-warping paper | Combined uniform resistance anti-warping paper |
| Automatic collecting device | Heavy bearing around 60KG |
| Data transfer interface | Gigabit network port |
| RIP Software | MainTop |
| Input power | 220V, 1600W |
| Packing Size | 4730*1010*830MM |
| Gross Weight | 500kg |
