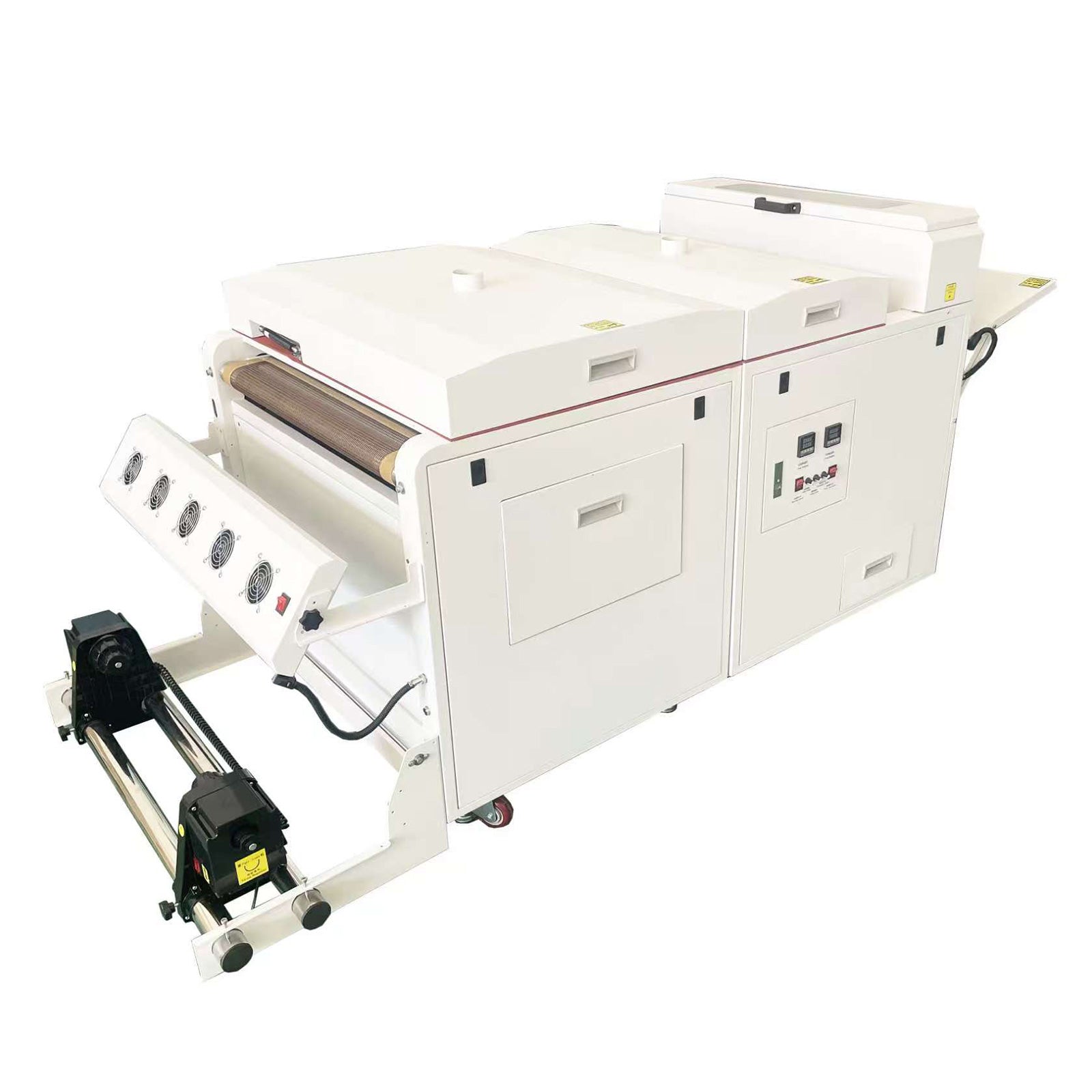

24in Automatic DTF Powder Shaker and Dryer with Vacuum Absorption Conveying Platform

Description

24in automatic DTF powder shaker Extended Two Dryer with vacuum absorption conveying platform, suitable for 2-head or 4-head high speed DTF printers.
DTF powder shaker and dryer unit can handle up to 24in wide DTF film.
With the advancement in DTF technology, there is no denying that DTF is taking the printing industry by storm. It is quickly becoming one of the most popular technologies for textile printing compared to traditional printing methods.
This all in one dtf powder shaker unit takes over by evenly spreading, then melting the needed amount of adhesive material directly onto your printed image, saving time, effort, and cost.
The vacuum absorption conveying platform secures the printing material to avoid bulging, run-offs, and media waste.

Applicable Medium: Nylon, Chemical Fiber, Cotton, Leather, Swimsuit, Diving Suit, PVC, EVA, etc.

Specifications:

• Brand: USA registered

• Maximum Shake Powder Width: 700mm (27.6inches)

• Drying Length: 55in (1400mm)

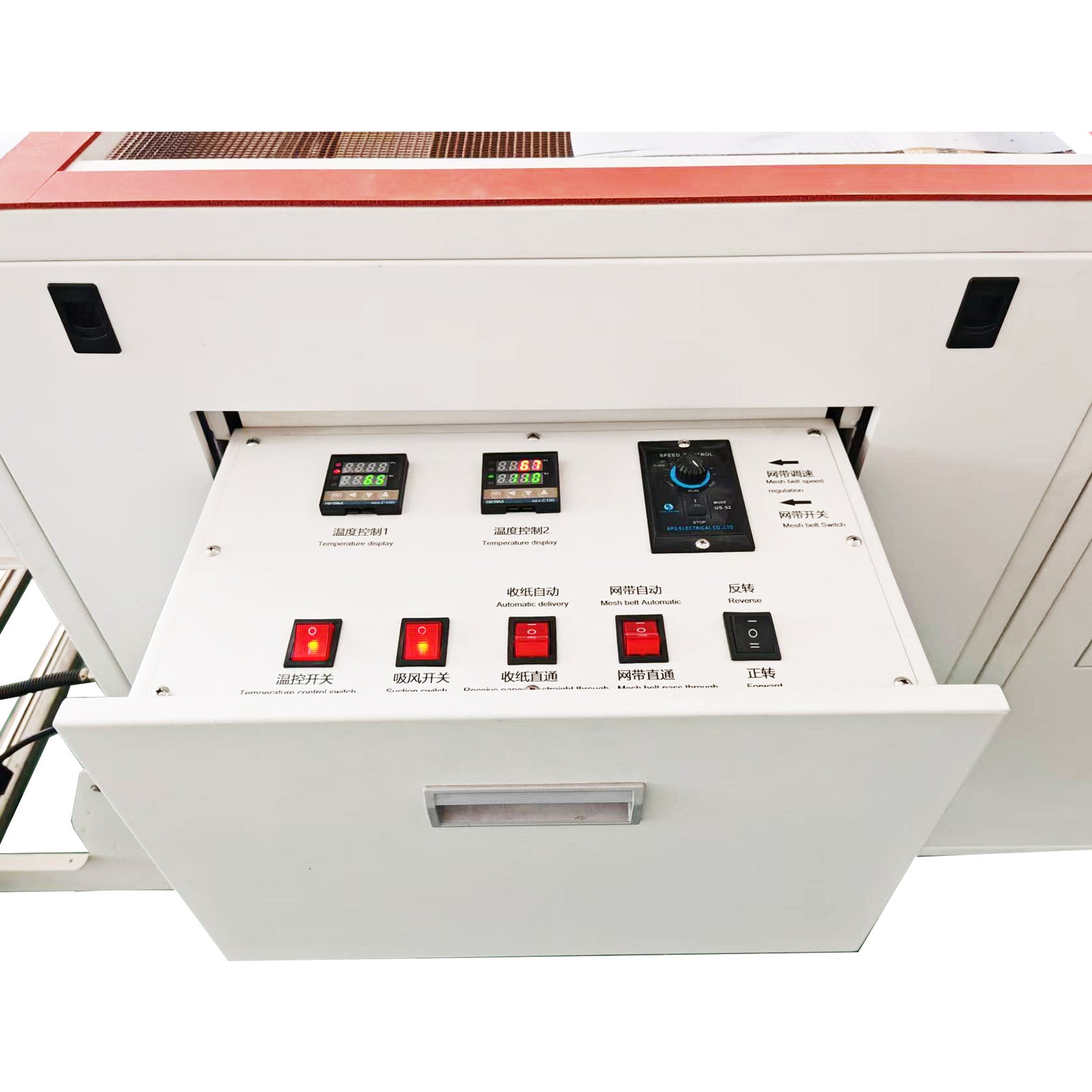

• Functions: Shake powder control, dusting control, PID setting of curing temperature

• Heating Element: 9pcs Quartz infrared heat drying tube

• Rewinding Function: Automatic induction rewinding

• Heating and Drying Mode: Front guide plate heating, upper drying curing

• Cooling Mode: 5 fan air cooling (single row)

• Machine Size: 80.7in x 38.2in x 41.3in (2050mm x 970mm x 1050mm)

• Power Shaker and Dryer Weight: 518lbs (235kg)

• Packaging Size: 36.2in x 40.5in x 94in (920mm x 1030mm x 2390mm)

• Gross Weight: 729.7lbs (331kg)

• Powder spreading structure: The motor drives the brush to rotate to brush the hot melt powder out of the powder box.
• Powder shaking device: the motor drives the powder shaking lever to beat the film to clean up excess hot melt powder.

Requirements:

• Working Power Supply: AC220V, 50hz / 60hz, 1 phase.

• Current: 27.3A, 6000W

• With DTF film, power and Inks, you can easily and quickly create custom t-shirts and apparel.

Remarks:
DTF powder shakers do not have automatic powder recycling function, in order to avoid hot melt powder moisture.

Features:

• Extended Two Dryer, two 78CM split convenient transportation, free split can be used independently.

• Utomatic power off protection.

• Universal wheels for easy movement.

• Customized powder recycling drawer, increases effectiveness.

• Shake powder control, dusting control, PID setting of curing temperature.

• Automatic powder feeding, evenly spreading powder.

• The vacuum absorption conveying platform secures the printing material to avoid bulging, run-offs, and media waste.
