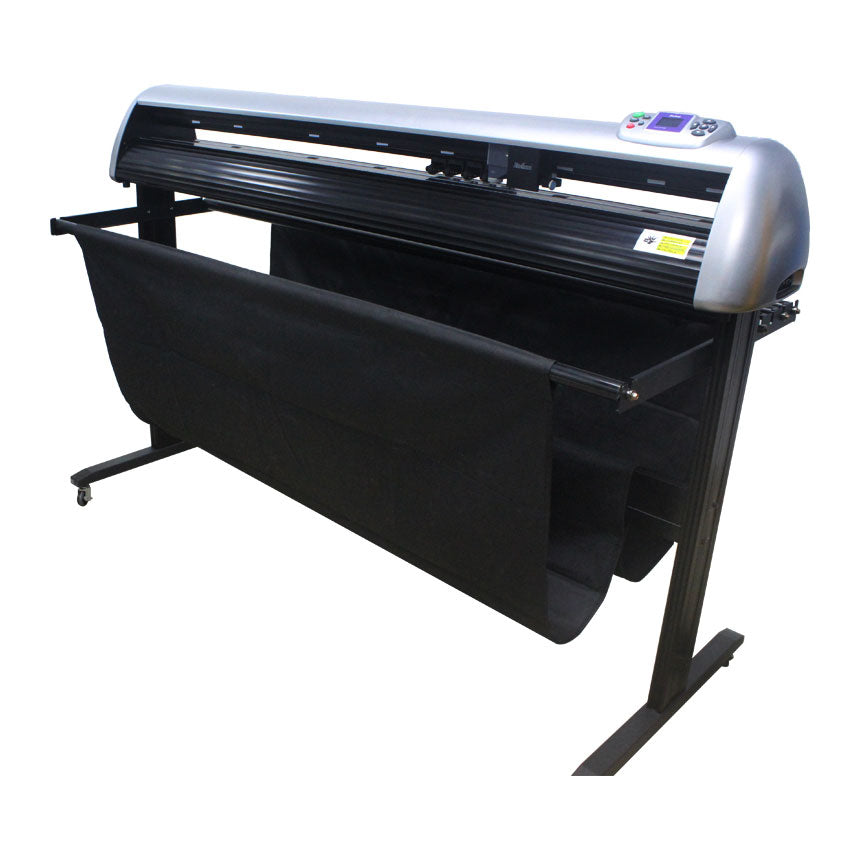

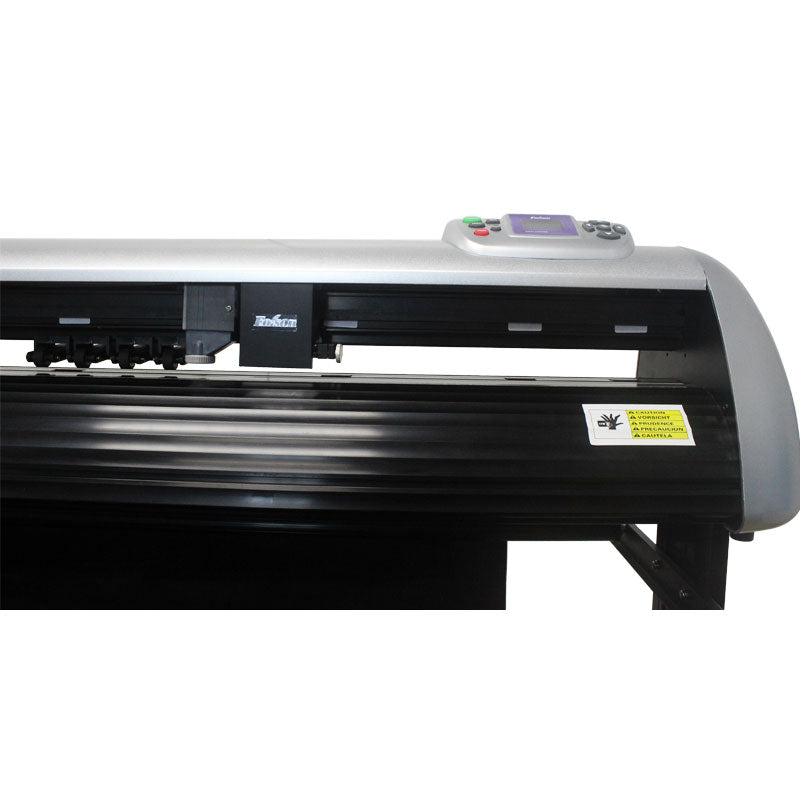

24" MULTI-MARK with Professional Sensor Head Vinyl Cutter

Original price $591.00 - Original price $591.00
Original price
$591.00
$591.00 - $591.00
Current price $591.00

Features:
1. High strength aluminum alloy frame, elegant appearance with streamline design
2. 10bd quieter than ordinary cutting plotter, speeds reach 800mm / s
3. Multi-mark point with subsection supported to guarantee long media scan precision
4. Professional sensor head support more glossy material contour cut scan

Specification:
Model:  A-S24
Automatically Contour Cutting: Standard
Interface: USB2.0, RS232C
Max Cutting Speed: 800mm / s
Driver: 2.5A high speed stepper motor, 16 micro step sub driving driver
Pressure: 50g-800g (160grade)
Display: 4 x 8 High Resolution LCD
Power Supply: AC90-240V / 50Hz-60Hz
STAND: Optional (Please contact customer service)
Hop-pocket: Optional (Please contact customer service)
Acceptable Media Width: 852mm
Max Cutting Width: 680mm

Specifications

Model: A-S24
Automatically Contour Cutting: Standard
Interface: USB2.0, RS232C
Max Cutting Speed: 800mm / s
Driver: 2.5A high speed stepper motor, 16 micro step sub driving driver
Pressure: 50g-800g (160grade)
Display: 4 x 8 High Resolution LCD
Power Supply: AC90-240V / 50Hz-60Hz
STAND: No
Hop-pocket: No
Acceptable Media Width: 852mm
Max Cutting Width: 680mm
Machine Size: 890 mm x 265 mm x 270mm (35in x 10.4in x 10.6in)
Net Weight: 12kg (26.57lbs)
Shipping Dimensions: 1127 mm x 370 mm x 370mm (44.4in x 14.5in x 14.6in)
Gross Weight: 16kg (35.3lbs)
