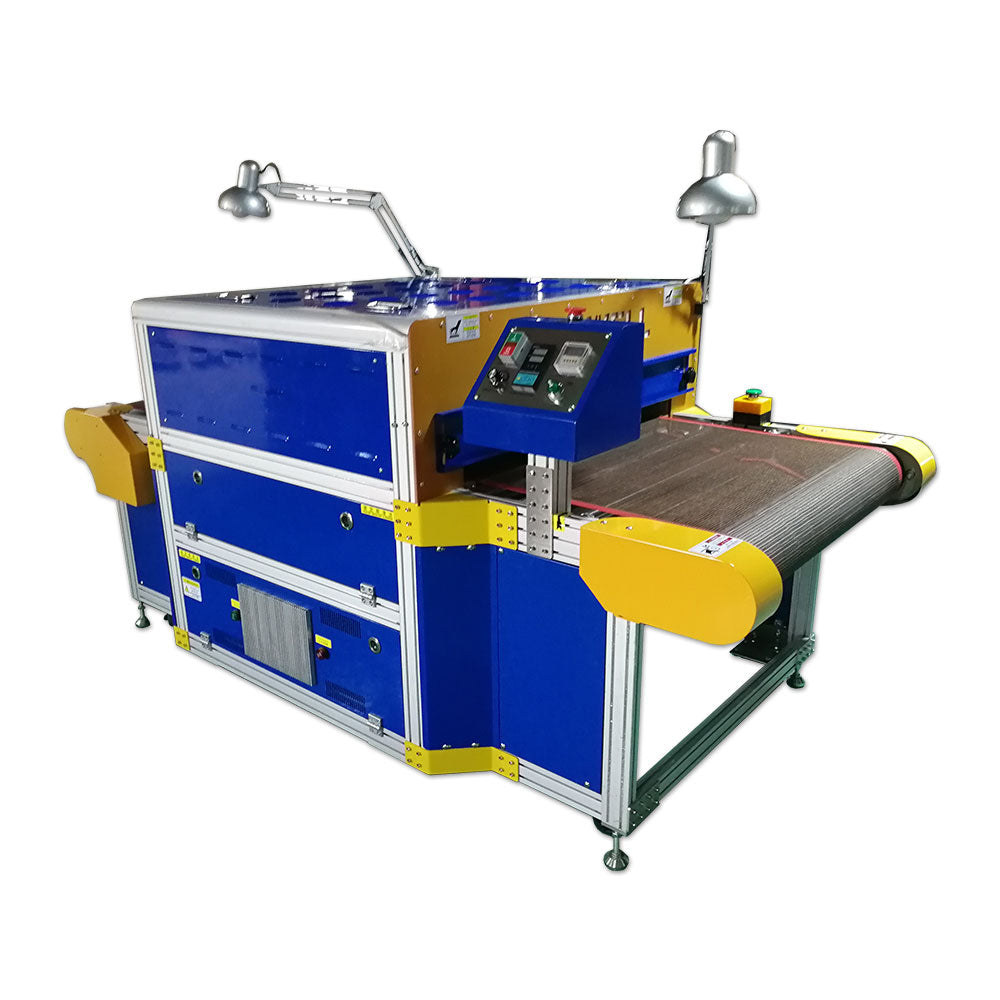

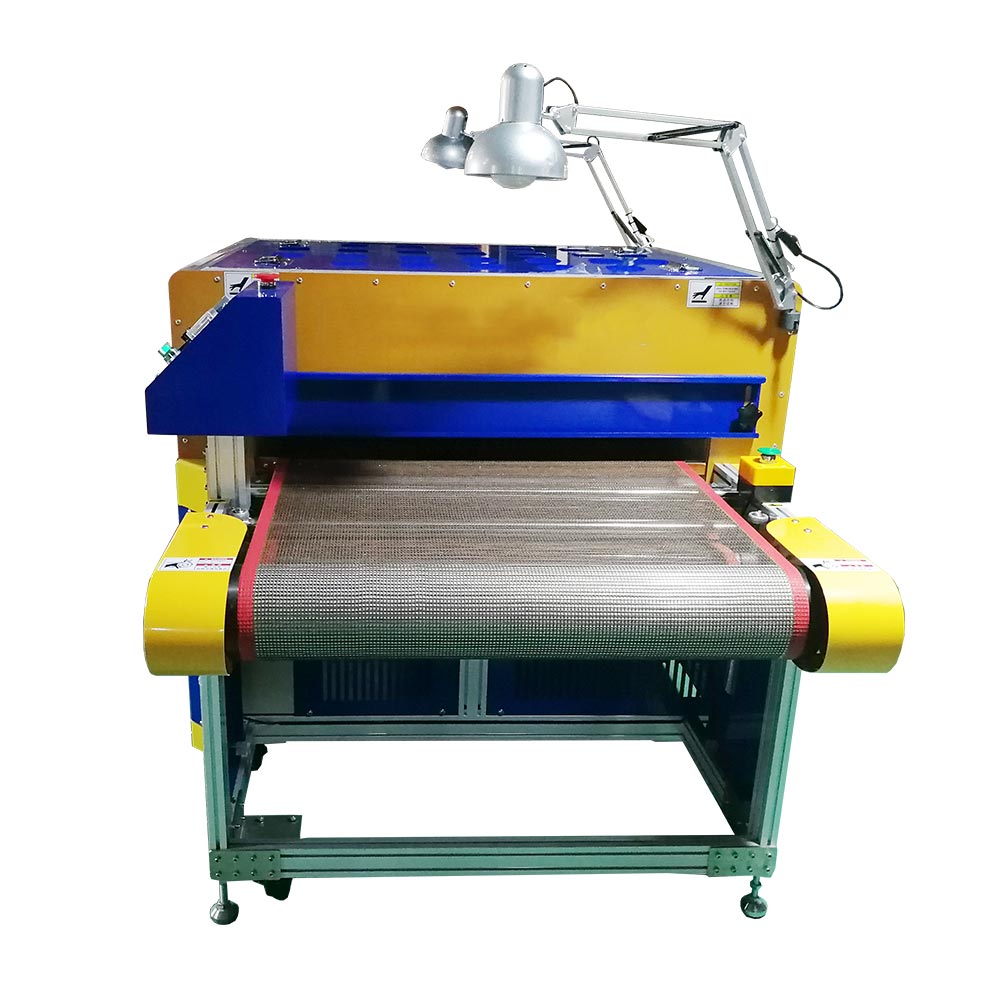

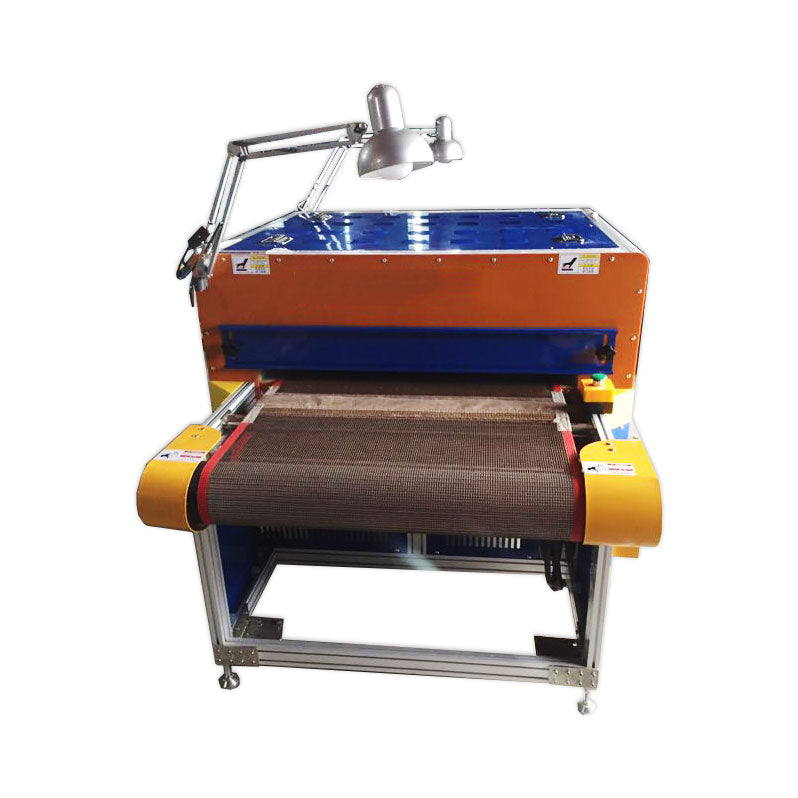

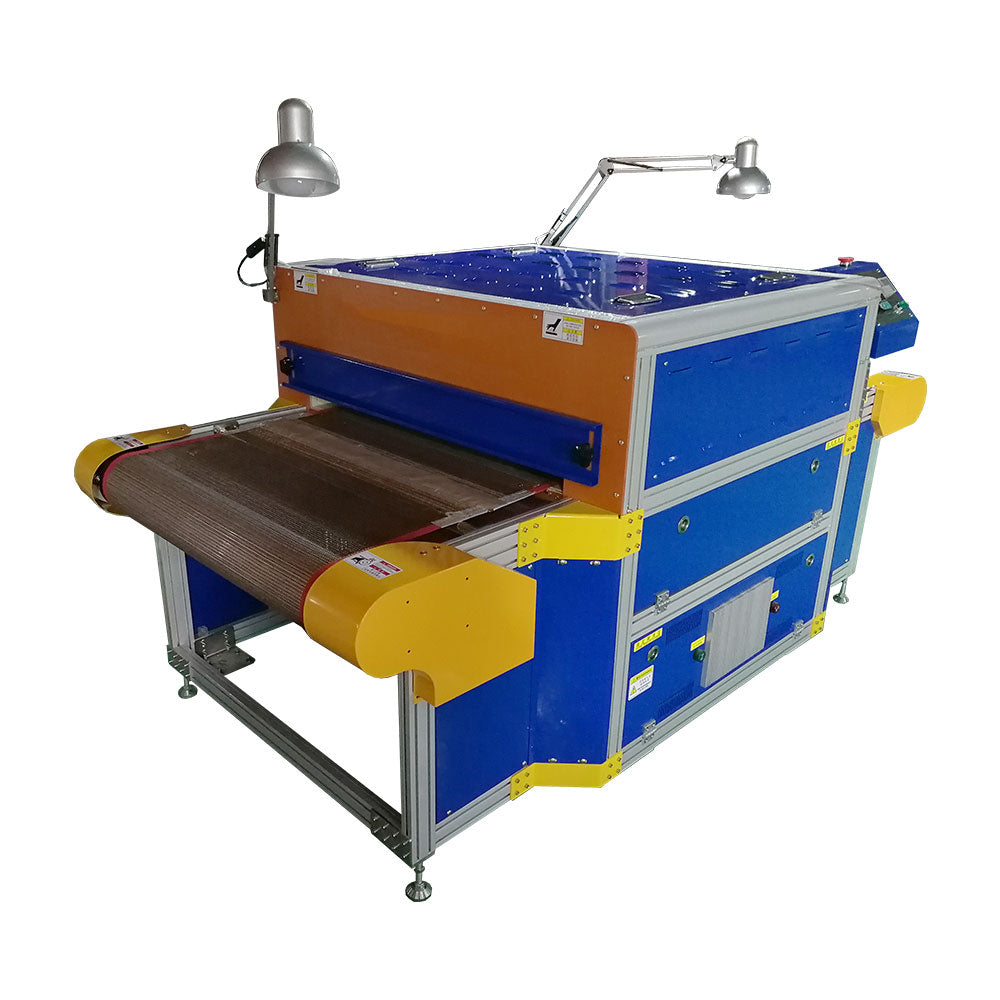

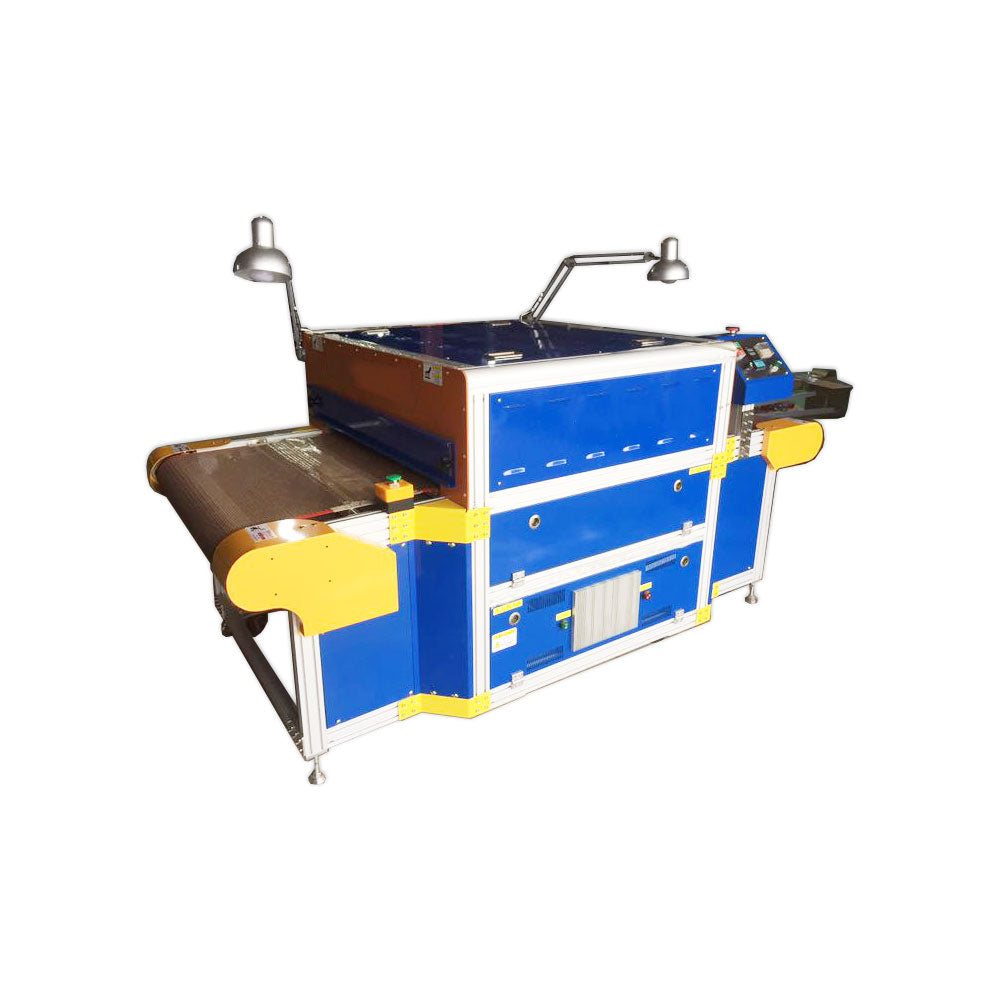

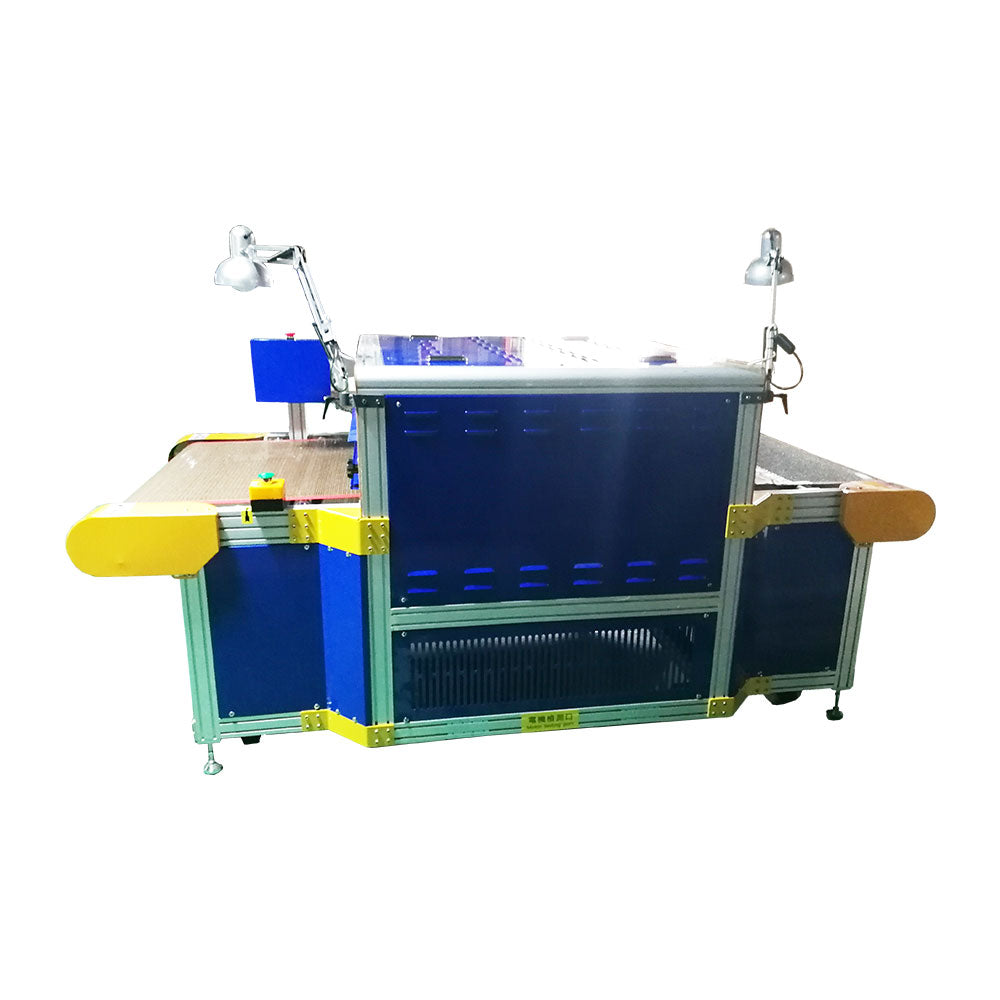

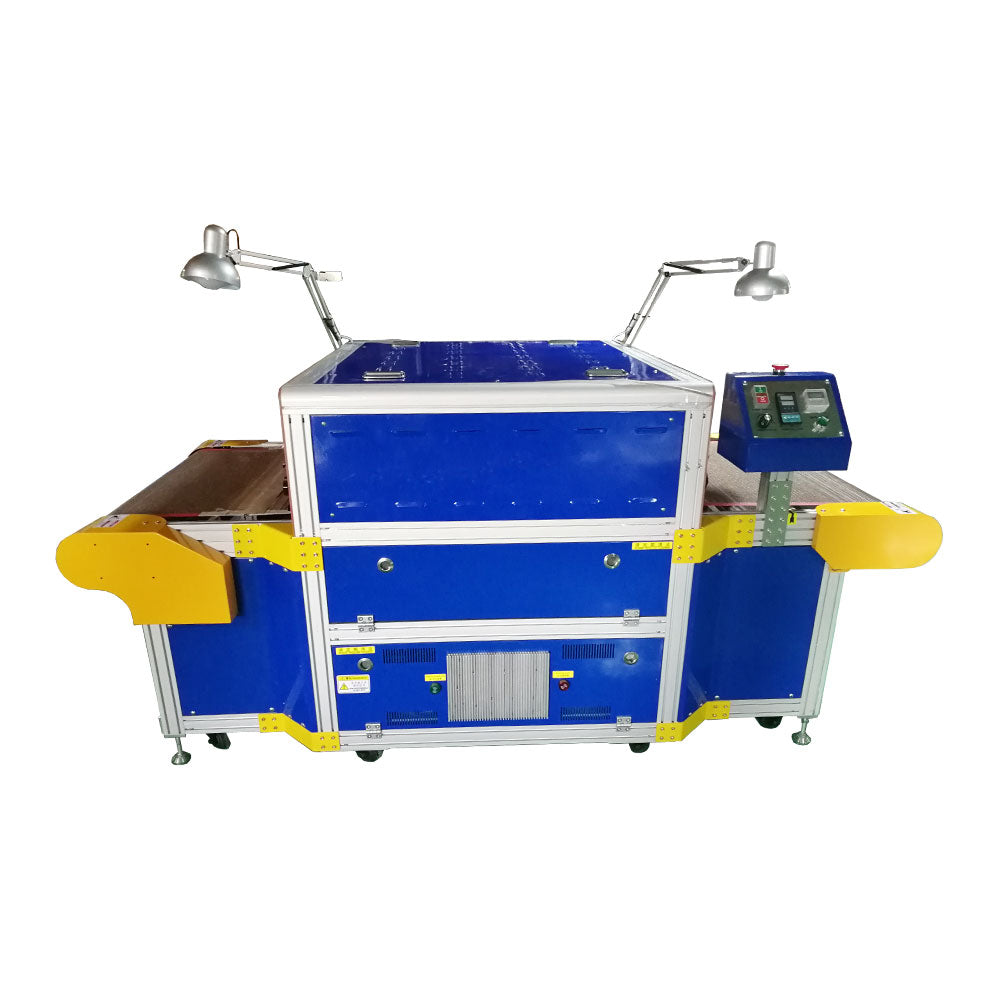

220V 8000W Conveyor Tunnel Dryer 7.2ft Long x 31.5in Wide Belt

Description

This tunnel dryer, the overall design is reasonable, the heat preservation performance is strong, less heat loss, less power consumption.

Advantages: Quick drying, good effect, simple operation, energy conservation, environmental protection, excellent performance, powerful, durable, low maintenance rate, energy saving save electricity above 30%.
Fuselage shell: Fine steel material to make a hard and durable of the fuselage, the whole body of the lacquer that bake to imported cars chassis not to drop paint, does not rust, easy cleaning, beautiful appearance design and easy!

From a small production shop to large scale drying operation, this series are multi-purpose dryers that can handle water-based textile inks, direct-to-garment inks as well as traditional plastisol and solvent-based evaporative inks.

Specifications

Total Length: 7.2ft / 220cm
Total Width: 46.4 in / 118 cm
Belt width: 31.5in / 80cm
Belt to the ground height: 29in / 74cm
Enter /exit length: 23.6in / 60cm each
Oven chamber length: 39.37in / 100cm
Chamber height: 43.3in /110cm
Lamp: infrared carbon fiber lamp
Constant temperature range: 0-356℉ / 0-180 ℃
Heater wattage: 8 KW Ma
Power supply: 220V / 60Hz

Features:

1. Internal circulation of hot air: the specific operation of the internal circulation device of hot air is as follows: the air in a group of every meter is sucked from the lower part of the mesh belt, and then blown from the upper part to the lamp tube, the hot air flows downward to form the hot air circulation, so as to evenly heat the box and prevent heat accumulation.
2. The tunnel furnace, the whole machine aluminum alloy frame structure, easy installation and relocation, the machine 1 set of fan system, 1 set of temperature control system, 1 set of independent speed regulating device network belt.
3. This structure is the latest high efficiency and energy saving device, which can ensure the rapid dehydration and solidification of the cloth.The machine can run efficiently for a long time.The normal power consumption of the whole machine is about 2-3kw.
4. Automatic tube fault detection function: there is a lamp tube damage alarm prompt, you can know which lamp is damaged.

Details:

Remarks:

The tunnel furnace to clean the filter every 30 days;
Please add lubricating oil to the joint bearing every 90 days, the appearance, please keep clean.
When the machine runs about 300 hours, the module alarm, three LED lights, the need to promptly clean up the electric box and filter, press the RSET key to return to normal.
