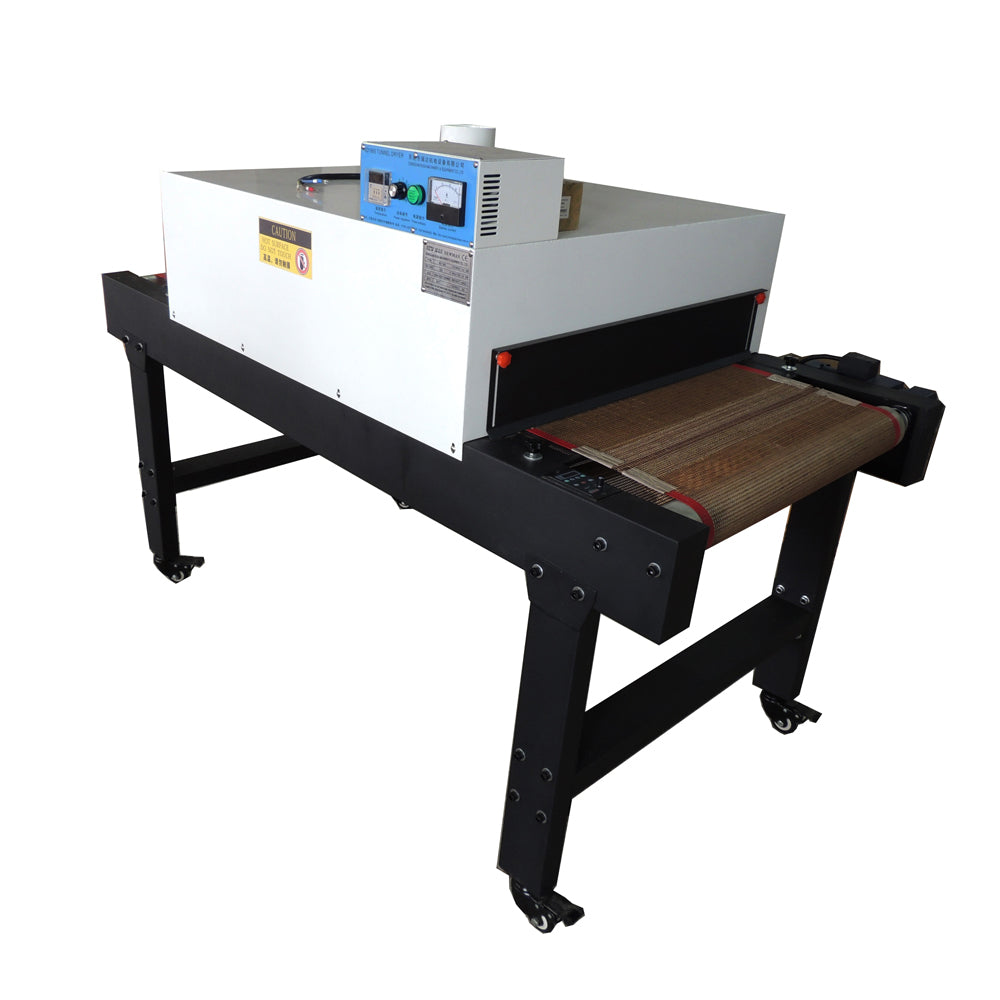

220V 4800W Small T-shirt Conveyor Tunnel Dryer 5.9ft. Long x 25.6" Belt for Screen Printing

Original price $1,999.00 - Original price $1,999.00
Original price
$1,999.00
$1,999.00 - $1,999.00
Current price $1,999.00

Parameters:
1. Power: 220V/4800W (single phase)
2. Lamp: IR heating lamp.
3. Machine length: 70.9" /180cm
4. Heating area: 25.6" x 39" (100 x 65cm)
5. Constant temperature range: 0-482℉ / 0-250 ℃
6. Operating belt speed: 0.3-3.5 meter/minute
7. Packing: 1 plywood box
8. Gross weight: 462lb / 210kg
9. Packing dimension: 74" x 42.5" x 28.7" / 188 x 108 x 73cm
10. 2 Year Heater Warranty! (except lamp)

Note:

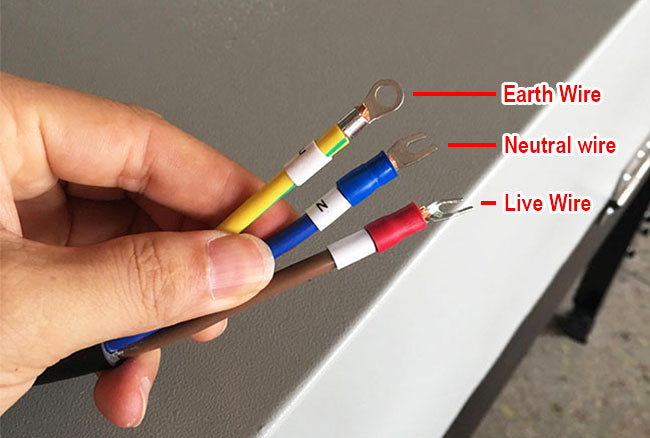

The machine is delivered without a power plug, connection to the electrical power source shall be done by a licensed electrician. The electrician can either install a suitable amperage, phase and voltage rated plug for whatever country the unit is being installed.

Feature:
1. All machine size be customized. we only showing some simple photos.
2. Temperture and working speed are simply and easily adjustable.
3. Digital speed meter enables operator to adjust working speed accurately.
4. The heating element is silicon carbide tube. which has high efficiently light source to dry clothes exhaust fan eliminates the scrape outside.
5. It is suitable for drying various kinds of textile printing ink. such as plastic ink. silica gel printing ink. paste. and water based ink.

Application:
This tunnel dryer is suitable for heating printing ink on clothes. even heat-set ink.
Nice designed structure to make sure the best drying effect.
Furnished with fire-resistant PTFE Coated Fiberglass belt. efficient IR heating tube and constant heat circulation.
Adopting intelligent digital display temperature control system. temperature error within 1 cent degree.
Steady belt transport. little noise and steeples speed change.
Owning a very short warm-up time to reach operational temperature.
Energy-saving and high efficiency
