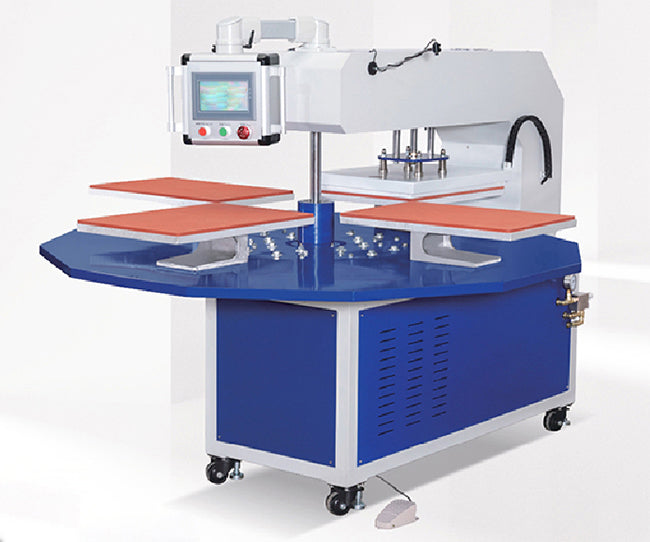

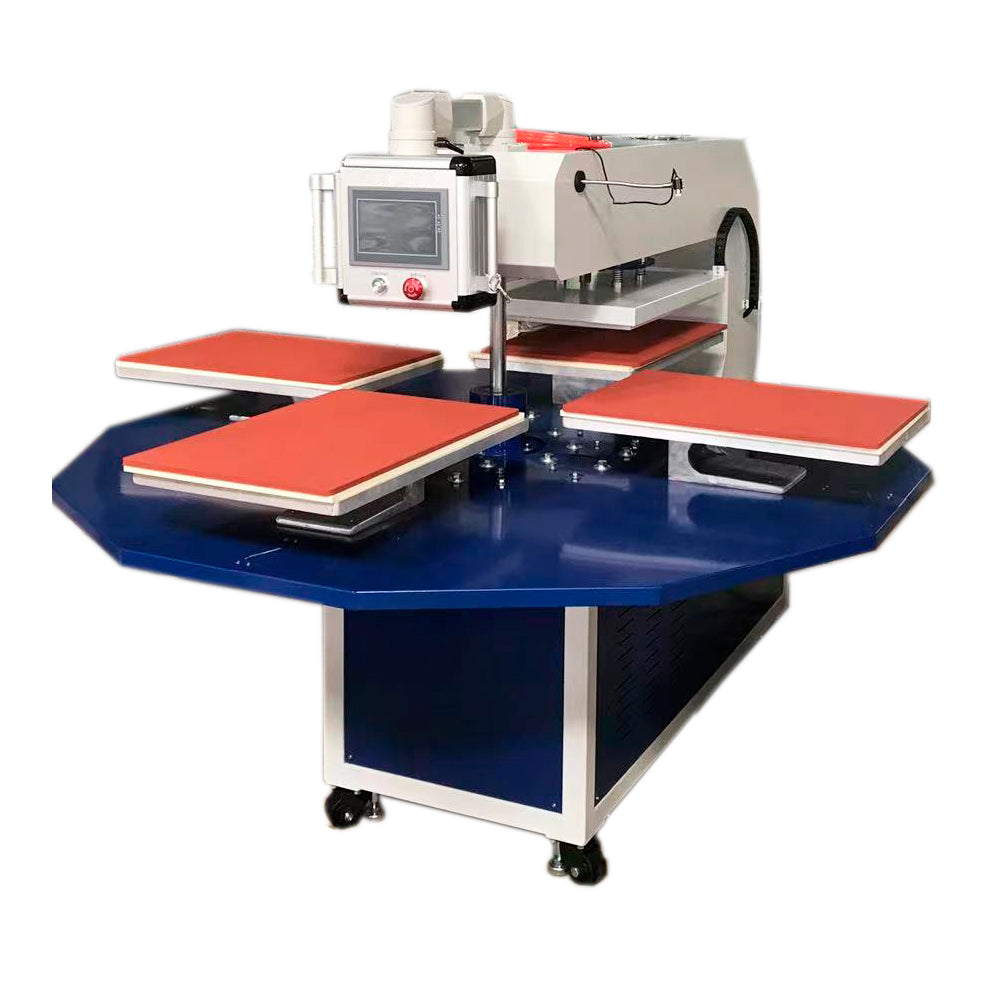

220V 4.5KW 21A 16in x 24in Automatic 4 Station Heat Transfer Machine with Laser Positioning System

$10,064.00
$10,064.00
Shipping calculated at checkout.
    220V 4.5KW 21A 16in x 24in Automatic 4 Station Heat Transfer Machine with Laser Positioning System

    Tech Specs

    Features:

    1.This machine adopts modular control, the touch screen display is more intuitive, and the operation is simple and convenient;
    2.Turntable operation, running speed can be adjusted at will, waiting time setting;
    3.Install infrared positioning device, high efficiency, fault prompt, more convenient after-sales;
    4.The four-station U-shaped base can be used for garments or cut pieces for pressing;
    5.Optional hydraulic or pneumatic pressure

    Specifications:

    Machine Type: fully automatic, rotating,4 station
    Platen Size:16in x 24in(40cm x 60cm)
    Printable Articles: Up to 2in (5cm )Thickness
    Air Compressor Required: Yes(13 gallon hold tank)
    Voltage:220V
    Power: 4.5KW,21A
    Time Range: 0-999 sec.
    Maximum Temp: 482℉(250℃)
    Temperature Accuracy: ±5℃
    Packing Size:90.5in x 70.9in x 69in (230cm x 180cm x 175cm)
    Gross Weight: 880lbs/400kg(Wooden Package)
