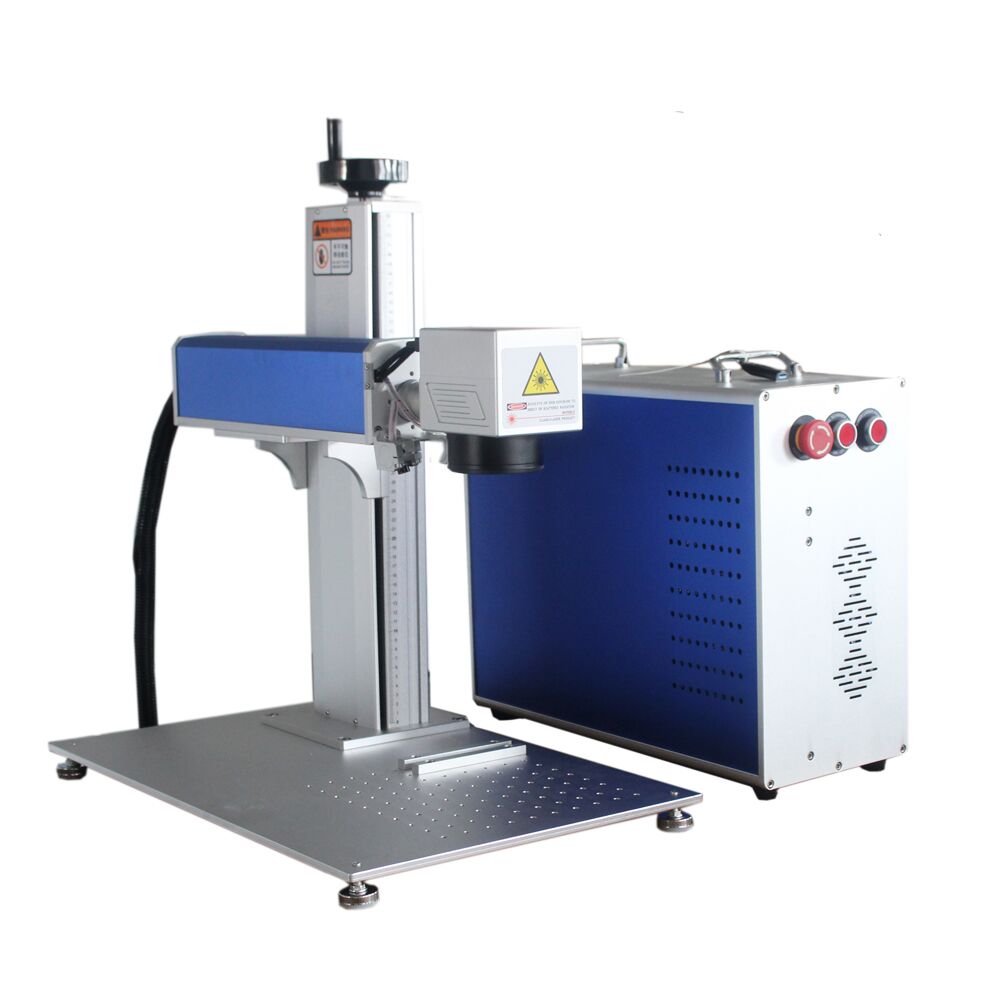

20W MOPA Fiber Laser Marking Machine for Metal Color Marking, with Red Dot Pointer, Rotation Axis, EzCad2, Compatible LightBurn

20W MOPA Fiber Laser Marking Machine for Metal Color Marking, with Red Dot Pointer, Rotation Axis, EzCad2, Compatible LightBurn

by Wide Image Solutions
$4,099.00 - $4,099.00
$4,099.00
$4,099.00 - $4,099.00
$4,099.00

Specifications

Model  LMM-DR-20W-M
Fiber Laser Source  JPT M7
Output Power  20W
Laser power supply  0.5KW, 110V / 60HZ
Work Area  150mm x 150mm(5.9" x 5.9")
Laser Wavelength  1064 nm
Min. Beam Quality (Max. M²)  1.4
Max. Pulse Energy  0.8 mJ
Max. Marking Speed  275.6 ips (7000 mm/s)
Laser Frequency  1–4000 kHz
Pulse Duration  2–350 ns
Beam Diameter  7±0.5 mm
Software  EzCad2
Compatible Operating Systems  Windows XP, Vista, 7, 8, or 10
Rotary Axis  Yes
