Tech Specs
Features:
1. Highly integrated and lightweight.
2. Fast and accurate marking, cost-effective.

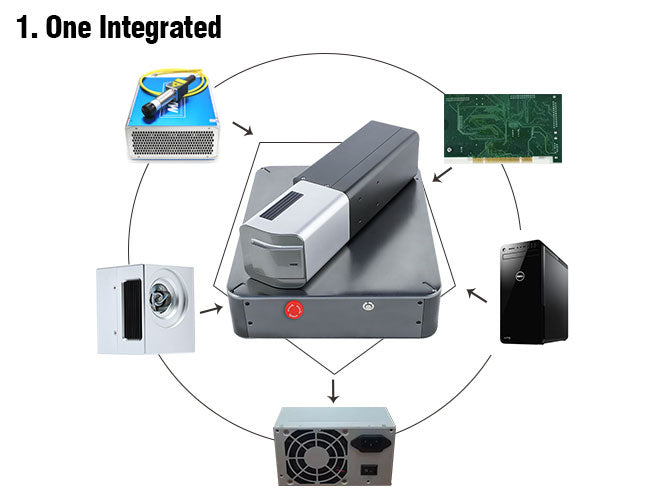

3. M5-box laser integrates 5 core components such as fiber laser, 8mm high-speed Galva- no meter, power supply, Intel
industrial computer, and genuine marking system.
4. Achieve multi-card integration, multi-source power supply integrated into a single source power supply.

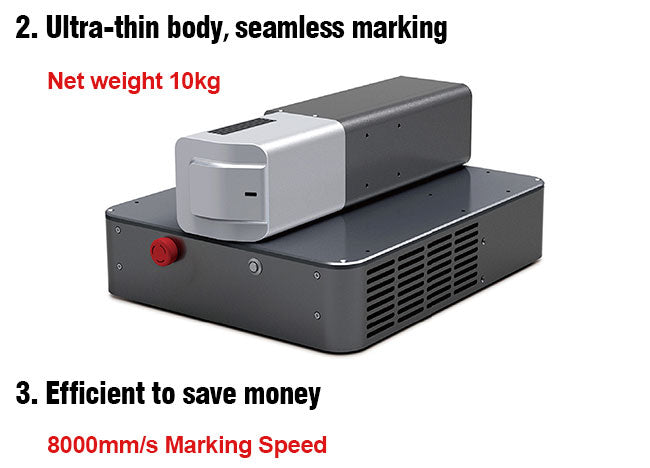

5. It has great advantages in lightness, flexibility and speed. It is a small-volume, lightweight. High-speed, high-flexibility, cost-effective fiber laser.
Application Industry:
Jewelry, Keyboards of cell phone, Auto parts, Electronic components, Electronic appliance, Communication apparatus, sanitary wares, buckles, kitchenware, Sanitary equipment’s, Hardware tools, Knife, Glasses, Clock, Cooker, Stainless steel products etc.
| Specification | |
| Power Consumption | 20W |
| Wave Length | 1064nm |
| Beam Quality | M2 < 1.4 |
| Modulation Frequency | 30-60KHZ |
| Carving Line Speed | 0-8000mm/s |
| Marking Range | 100/200mm(optional) |
| Focus Mode | By hand |
| Marking Speed | 600-1000character/minute |
|
Minimum width |
0.02 mm |
| Minimum character | 0.15 mm |
| Repeatability precision | ±0.002 mm |
|
Operating Temperature: |
10-35 °C |
| Power Consumption | ≤ 160 W |
| Cooling Mode | Air Cooling |
|
Operating Environment: |
Clean and dust free |
| Power Supply | AC110V±10% 60Hz or AC220V±10% 50Hz |
| Board | Beijing JCZ |
| CPU | Intel J1900 Processors |
| Chipset | Intel Bay Trail |
| RAM | ADATA 4G DDR3L 1600 |
| BIOS | AMI EFI BIOS |
|
Hardware |
32G |
| USB port | 4x USB2.0 |
| Serial port | 1x RS232 (pin) and COM1 |
|
Operating system |
Win7, Win8, Win10, Linux |
