1200mm 47" Roll-to-Roll Large Format Heat Transfer Machine for Making Samples (Oil-warming Machine)
- Regular price
-
$5,175.00 - Regular price
-
- Sale price
-
$5,175.00
Shipping calculated at checkout.
Couldn't load pickup availability
Description
1200mm 47" Roll-to-Roll Large Format Heat Transfer Machine for Making Samples (Oil-warming Machine) is designed for roll to roll sublimation & heat transfer use, main application for Textiles, Furnishing, Fashion, Sportswear, Curtain, etc. Compared to other models, this one is more fashion, more suitable for mid-class factory use.
Features:
Constant temperature
1 infrared heating element
Easy feeding table
Easy access design for felt entry and release
3 x unwind + 3 x rewind
Drawer type piece finishing collection
Small packing to save shipping cost
Manual Felt-alignment Adjustment, Manual Felt- in/off
1 infrared heating element
Easy feeding table
Easy access design for felt entry and release
3 x unwind + 3 x rewind
Drawer type piece finishing collection
Small packing to save shipping cost
Manual Felt-alignment Adjustment, Manual Felt- in/off
Specifications:
| Specification | |
| Model | HTM-FLRTR-1220P-T2B |
| Heating Type | Oil |
| Drum Diameter | 200mm |
| Variable Working Speed | 0 - 2.3m / min |
| Recommended Working Temp. | 190-230℃ |
| Alarm Temp. | 250℃ |
| Power Consumption | 5.5KW |
| Power Requirement | 230V,50/60Hz,1 phase |
| Machine Size | 1870 x 870 x 1300mm |
| Shipping Dimensions | 2000 x 870 x 1520mm |
| Weight (NW/GW) | 620/700kg |

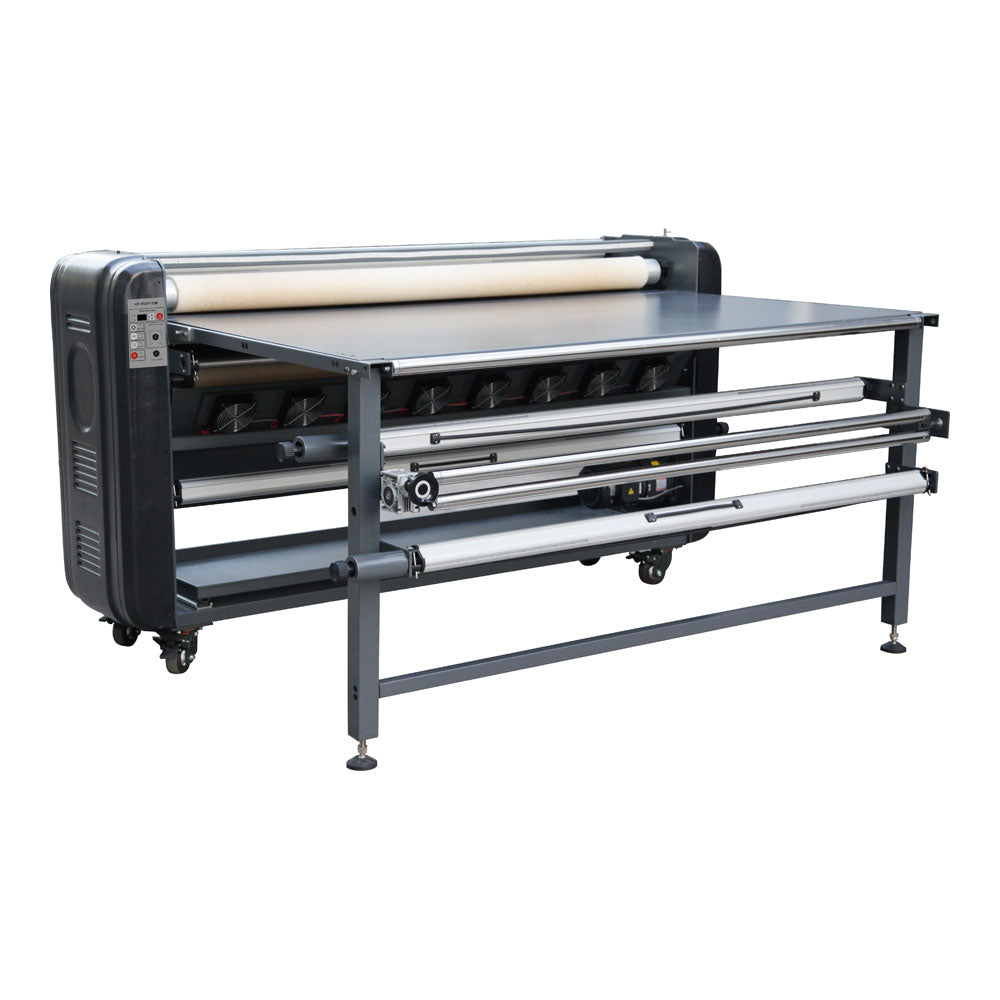

Front View:

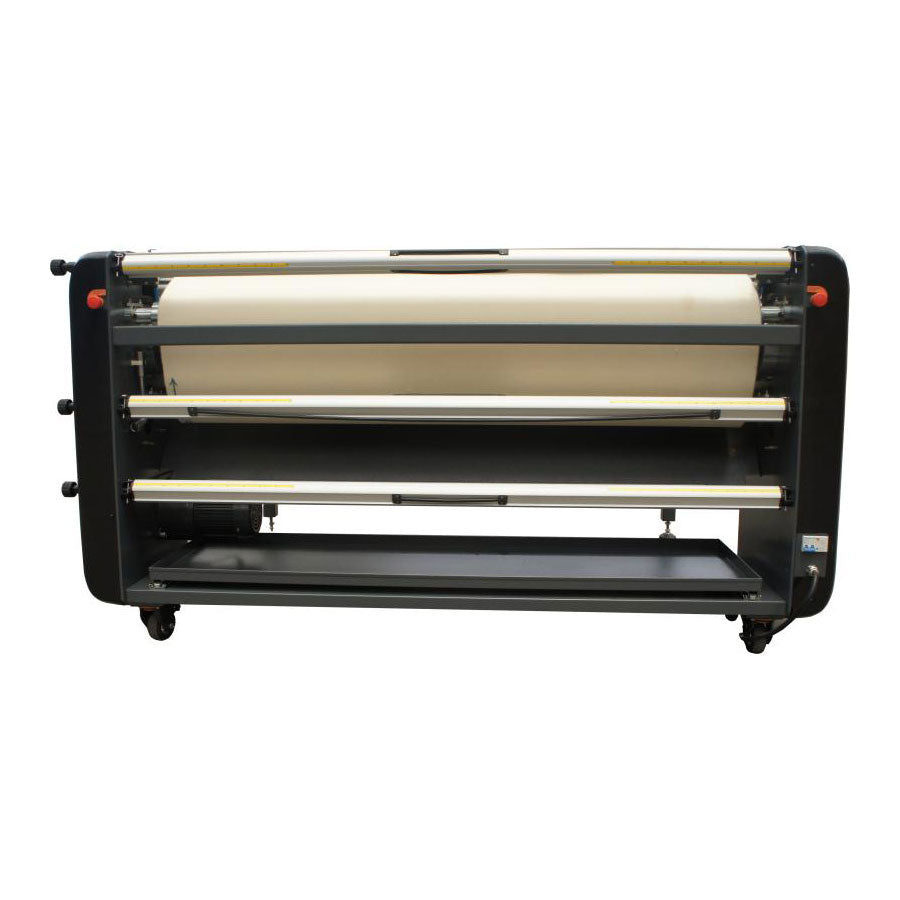

Rear View:
Working Principle:

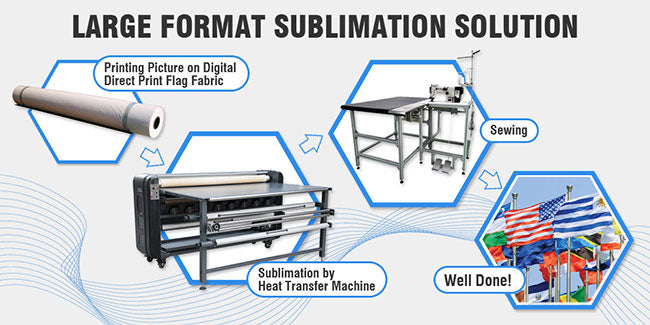

Applications:
1. Flag and Banners
2. T-shirts, Dresses and Sportwares
3. Home Textiles
4. Table Cloth & Display
5. Yoga Mat
6. Floor Mat
7. Mouse Pads
Unpacking:
Note: This is a schematic diagram. The quantity of bolts is based on the packing dimension
Caution: When moving the machine by forklift, must put the bottom frame of the machine on the forklift and people should protect the machine on both side. Be careful during transportation to prevent damage from falling off.
