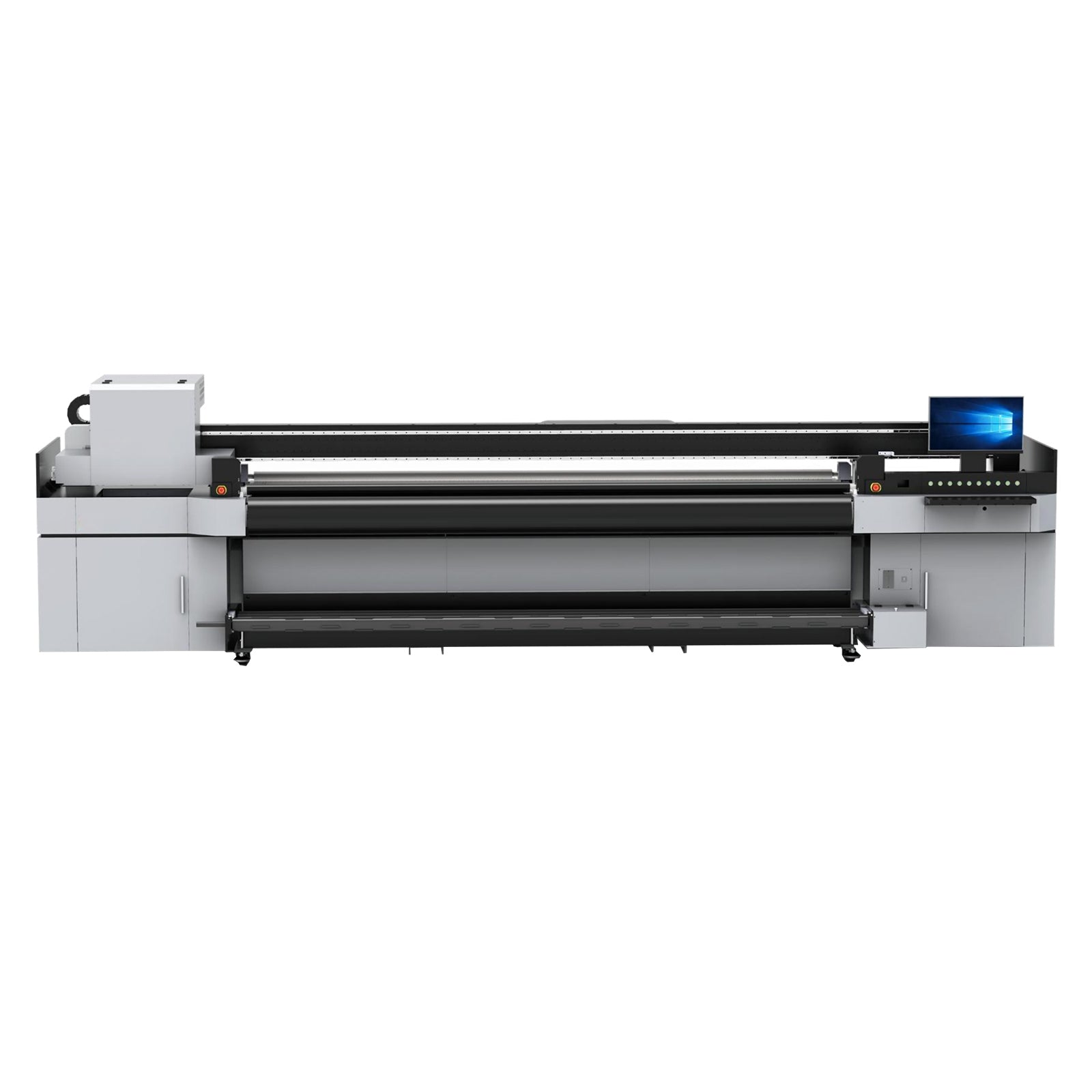

1.8m/2.2m/3.2m Hybrid UV Printer With Konica 1024A Printheads

Please choose
$18,978.70
$18,978.70
Shipping calculated at checkout.

    Specifications

    Model H1800 H2200 H3300
    Printing Size 1800m 2200mm 3250mm
    Printhead Konica 1024A
    Printing Height 0-50mm
    Printhead quantitiy 4-48
    Standard Solution CMYKW
    Printing Color C\M\Y\K\Lc\Lm\Ly\Lk\w,Optional colors: fluorescent, gloss
    Conveyor Method wire mesh conveyor belt
    Printing Precision 1440DPI (max)
    RIP Software Printfactory/Caldera
    Data Interface High-speed USB Transfer Port / Gigabit Network Port
    Lifting System Automaticlifting of Print Head /automatic monitoring of print height
    Curing system UV lamp curing
    Ink System Continuous ink supply/ink tank 5000ml/subtank constanttemperature and pressure/white auto stirrer
    Driver Software Microsoft Windows 10
    File Format TIFF(RGB CMYK)BMP,  PDF, EPS, JPEG, etc.
    Voltage AC220V(+10%);50Hz
    Working Environment Temperature:20°C-30°C/Humidity:40-70%
    Data Interface High speed USB transfer interface/Gigabit networkinterface
    Power Requirements 8000W 9000W 10000W
    Printer Weight 2300kg 2800kg 3000kg
    Printer Dimension 4500x1660x1550mm 4900x1660x1600mm 6300x1860x1670mm

    Print Speed High Speed Mode (4PASS) Production Mode (6PASS) High Quality Mode (8PASS)
    Gradient Weak 147m²/h 97m²/h 73m²/h
    Gradient Medium 117m²/h 78m²/h 59m²/h
    Gradient Strong 97m²/h 64m²/h 48m²/h
    Uniform Weak 78m²/h 56m²/h 43m²/h
    Uniform Medium 64m²/h 48m²/h 39m²/h
    Uniform Strong 56m²/h 43m²/h 33m²/h



    Features

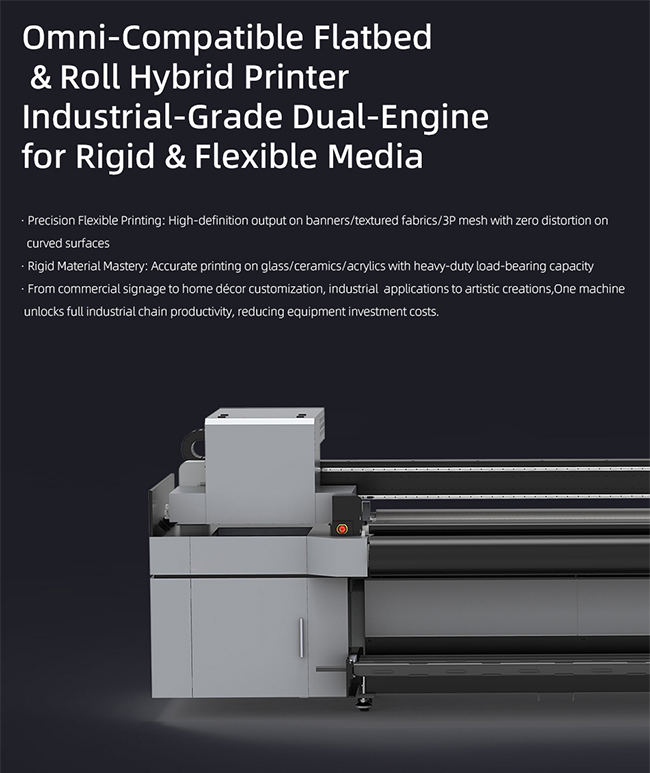

    Ultra wide mesh beltprinting platform
    The mesh belt printing platform issupported by aerospacealuminum suction platforms,which can make machine operation more stable and with higher accuracy.Roll material-sprinting and flatbed material sprinting modes are supported Theultra-wide-format mesh belt printing platform offersbroader application possibilities.

    Megnetic linear motor
    The magnetic levitation linearmotor offers faster speed,higher precision,and stronger stability. At the same time.it possesses then characteristic of wearresistance,ensuring durability.

    Front and rear loadingandunloading system
    The design ofthe multi transition roller structureensures smooth operation and printing accuracy when printing the coil material.The front and rearloading and unloading system are user friendly making loading and unloading more convenientand efficient.

    All-steelintegratedframe
    The all-steel integrated structure adopts quenching and aging reatment to relieve stress.Multipledense and stable support points allow for higher adjustable platform accuracy.The structure is reasonable and strongly stable,with no deformation after normal use for five years,extending the service life of the equipment.

    Y axis precise positioning
    The Y-axis can accurately locateprinting materials and automatically lifting, making material printing convenient and fast.Additionally, it prevents misalignment toensure printing accuracy.

    Mesh belt automatic correction system
    The automatic deviation correction system makes the mesh belt running more stable, avoiding fre-quentmanual adjustment which cause the belt deviated,and makes operation more convenient.
