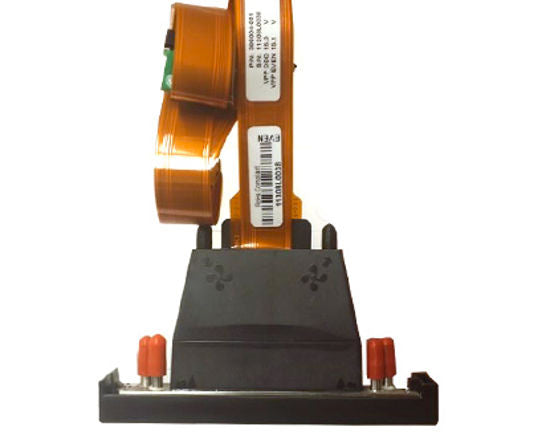

Ricoh GEN4L 15PL Printhead (Hose barb) - MH2620

$3,140.22
$3,140.22
Shipping calculated at checkout.
    Ricoh GEN4L 15PL Printhead (Hose barb) - MH2620

    Tech Specs

    Description

    The Ricoh GEN4L printhead is suitable for a range of oil, water, solvent and UV printers, including the original D.Gen Teleios Grande, D.Gen Teleios (TJ-2600) and Teleios (TJ-3333). This printhead has an integrated heater and thermistor. This is Ricoh original printhead and it is covered by a manufacturer warranty.

    This printhead is not compatible with the newer D.Gen Teleios Grande G5 or Teleios Grande/H6. These printers use Ricoh GEN5 Printhead Water (PPHRI18045).

    This head comes with hose barbs. The hose barbs can be removed if printhead with o-rings is needed.

    We recommend to change the head cables when installing a new printhead.

    Specifications

    - Size: 13,2 x 120 x 75,5 mm (excluding cables)
    - Head Materials: SST, Ni and Epoxy Adhesive (direct contact with ink)
    - Nozzle Plate Surface: Non-wet coating
    - Number of Nozzles: 2 x 192 nozzles
    - Nozzle Spacing: 0,1693 mm
    - Piezo Type: D33 Stacked PZT
    - Temperature Control: Integrated Heater and Thermistor
    - Operator Temperature range: Up to 80° C
    - Native Drop Volume: 15 pl
    - Drop Volume Range: 15-45 pl
    - Jetting Frequency: Up to 30 kHZ
    - Life: 100 billion actuations per nozzle

    Printer compatibility

    • AmicaSystems PA32
    • d.gen Artrix GTII
    • d.gen Teleios (TJ-2600)
    • d.gen Teleios Grande (3333TX)
    • d.gen Teleios Grande (TJ-3333)
    • d.gen Teleios XL (XL2600)
