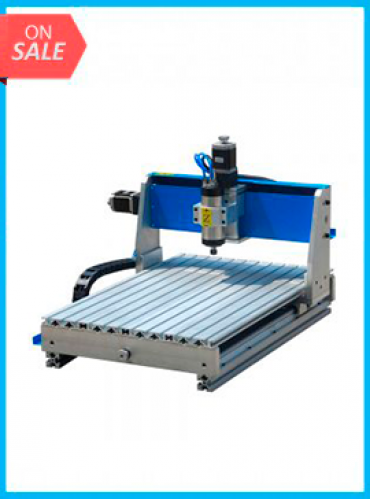

New Professional 4060 Desktop CNC Router Drilling Milling Machine
|
Model |
CNCR-RS4060 |
| X, Y, Z Guide | Rolling ball screw |
|
X, Y, Z Work Area |
400 x 600 x 55mm(15.7" x 23.6" x 2.2") |
|
Max feeding height |
90mm |
|
Drive type |
Stepper motor |
|
Spindle |
800W high speed (Air cooling) |
|
Max Speed |
4000mm/min |
| Resolution | ≦0.05mm |
| Repeatability | ≦0.05mm |
| Interface | DSP Handle |
| Command code | HPGL, G-code |
| Spindle tools | ф3.175, ф6 |
| Power | AC220V±10%/50~60Hz |
Usage
Various materials can be applied by the machine, such as PVC, Acrylic, wood, PCB, even some soft metal like
aluminum and copper.
1) Assembling and locating the CNC machine on steady desk well.
2) Make sure that your computer has a on-board parallel port output.
3) Installing a CNC control software and Drive such as the MACH 3 or EMC2 on your computer.
4) Connecting the control box with the CNC machine and you computer.
5) Fllowing our manual or guideline to set uo the software.
6) You can enjoy making you dream with using our CNC.
Built-in 128G memory ( removable storage technology,which can support processing any size of file )
Display
128 points * 64 points, monochrome LCD
Communication Interface
USB and U disk.
Support document form
G code, PLT, ( users can custom)
Linkage axes
4-axis 3 linkage
Language
Chinese, English, Russian, French, Japanese, etc.
Language can be customized according to customers’requirements.
Operator interface
Button-driven and menu-driven
Interpolation method
Straight line and arc
Minimum input unit (mm)
0.001
Minimum resolution (mm)
0.001
Cutting Speed (mm / min)
64000
Maximum running speed (mm / min)
1-64000
Automatic deceleration control
No
Straight thread, taper thread cutting
No
Automatic blade
No
Spindle speed control
Yes
Detection of system data
Yes
Detection of processed data
Yes
Adjustment of processing position
Yes
Multi-processing coordinate system
Support 9 workpiece coordinate system
Breakpoint continued processing
Yes
Copy Processing
Yes
Power-down data protection
Yes
Working temperature
0°C to +70°C
Relative humidity
＜90﹪ Non-condensing
Working voltage
DC24V 2A
External voltage
DC5V
Power
2W
Dimension (L * W * H) (mm)
156*110*38
