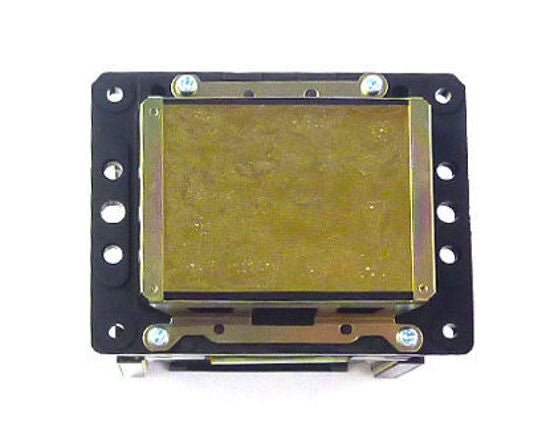

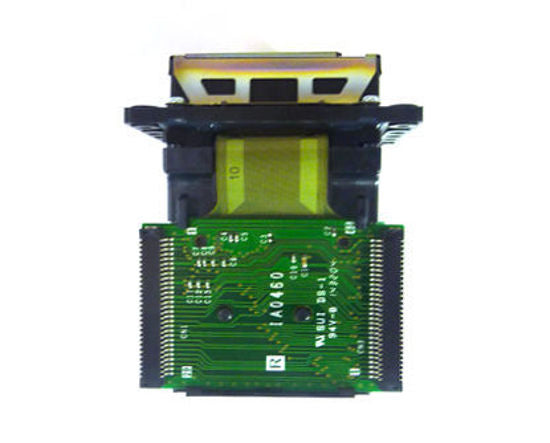

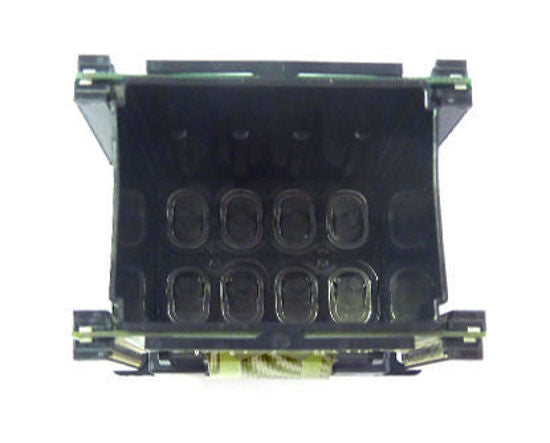

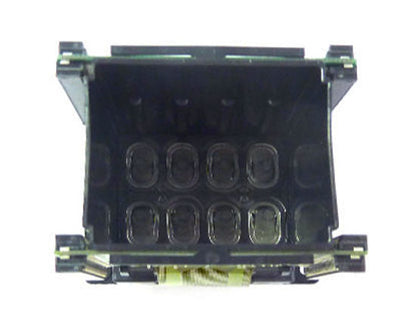

Mutoh XpertJet 1641SR / 1682SR Printhead - DH-40274 / DG-49580

This printhead is suitable for Mutoh XpertJet solvent printers. This is the original Mutoh part (number DG-49580). It does not include the base. Although DH-40274 can also be used on XpertJet UV printers, Mutoh recommends using DG-43988 with UV inks to ensure best life span.

We recommend to change the head cables when installing a new printhead.

Specifications:

• Printhead type: Piezo Printhead
• Nozzle configuration : 180 nozzles x 8 lines/head
• Drop Volume Range (pl): 3.5 to 35
• Resolutions: 360x360, 360x720, 720x720, 720x1080, 720x1440 & 1440x1440 dpi
• Head Heights: Low: 1,5 mm / Middle: 2.5 mm / High: 4.0 mm

Printer compatibility

• Mutoh Valuejet 1638X

• Mutoh Valuejet 1948X

• Mutoh VJ-628MP

• Mutoh XPJ-1641SR

• Mutoh XPJ-1682SR

• Mutoh XPJ-1682WR
