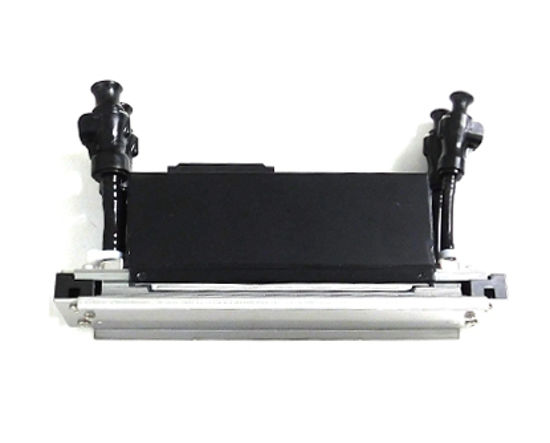

Kyocera Inkjet Printhead / KJ4A-0300

Kyocera Inkjet Printhead / KJ4A-0300

by Wide Image Solutions
$4,743.23 - $4,743.23
$4,743.23
$4,743.23 - $4,743.23
$4,743.23

Description

This original Kyocera KJ4A-0300 printhead is designed for high speed single-pass applications with printers using aqueous ink, multi-pass using UV inks. It is a 300dpi two colours printhead with a maximum drive frequency of 30kHz. It delivers high quality with a small drop volume of 4pl at 158 m/min by making use of 2,656 nozzles arranged across 112.35 mm wide print swathe. We recommend to change the head cables when installing a new printhead.

Product Specifications

  • Ink Type:  UV ink
  • Dimensions: 200 × 36 × 61.4mm
  • Dry Weight: 540g
  • Total Nozzles: 2.656 (2x 1328)
  • Standard Resolution: 300 x 300dpi
  • Print Width: 112.35mm
  • Max. Drive Frequency: 30kHz
  • Drop Volume: 4, 6, 10 and 14pl
  • Max. Sprint Speed: 158m/min
  • Typical ink viscosity: 7.0-7.5 mPa

Printer compatibility

  • Docan FR3210T
  • Docan H3000

  • Handtop HT2500UV HR8
  • Handtop HT3200
  • Handtop HT3200UV

  • Imprimo Titanium UV Flatbed

  • Polaroid T-REX

  • Vanguard VK300D-HS
