COMPLETE SOLUTION - HP Latex 830 64" Wide Format Printer - New + 64" Graphtec FC9000-160 Wide Cutter - New + 55" Full-Auto Wide Format Cold Laminator with Heat Assisted - New

COMPLETE SOLUTION - HP Latex 830 64" Wide Format Printer - New + 64" Graphtec FC9000-160 Wide Cutter - New + 55" Full-Auto Wide Format Cold Laminator with Heat Assisted - New

by Wide Image Solutions
$37,439.00 - $37,439.00
$37,439.00
$37,439.00 - $37,439.00
$37,439.00

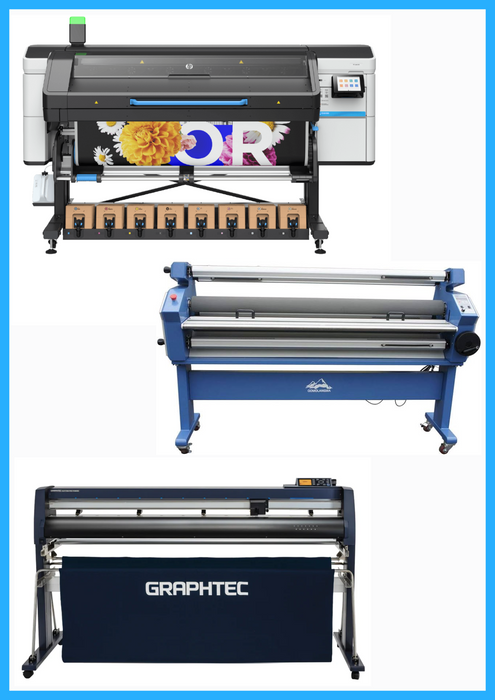

This package includes:

  • HP Latex 830 64" Wide Format Printer  - New
  • 64" Graphtec FC9000-160 Wide Cutter - New
  • 55" Full-Auto Wide Format Cold Laminator with Heat Assisted - New

Technical Specifications

Print

  • Print speed: 387 ft²/hr – Draft (4-pass) in Banner ; 269 ft²/hr – Speed (6-pass) ; 215 ft²/hr- Standard (8-pass) ; 183 ft²/hr- Quality (12-pass) ; 118 ft²/hr- High Quality (16-pass)
  • Print resolution: Up to 1200 x 1200 dpi
  • Technology: HP Latex Printing Technologies
  • Ink types: Water-based HP Latex Inks
  • Ink cartridges: 8 (Cyan, Magenta, Yellow, Black, Light Cyan, Light Magenta, Optimizer, Overcoat) cartridges
  • Cartridge size: 3 L per cartridge
  • Printheads: 8 (7 HP Latex Printheads, 1 HP Latex Optimizer)


Media

  • Applications: Banners; Displays; Exhibition and event graphics; Exterior signage; Indoor posters; Interior decoration; Light boxes - film; Light boxes - paper; Murals; POP/POS; Posters; Textile; Vehicle graphics; Window graphics; Stickers
  • Handling: Roll feed, take-up reel, wiper roller, media saver, automatic horizontal cutter(for vinyl, banner, canvas, paper-based media, and film)
  • Maximum media width: 64 in
  • Media Rolls: 1
  • Roll size: 16.5 to 64-in rolls (23 to 64-in rolls with full support)
  • Maximum roll weight: 121 lb
  • Maximum roll diameter: 9.8 in
  • Standard media sizes: 24", 36", 42", 54", 60", 64"
  • Supported thickness: 19.7 mil
  • Media types: Banners, self-adhesive vinyls, films, fabrics, papers, wall coverings, canvas, synthetics, mesh, textiles


Connectivity

  • Interfaces: Gigabit Ethernet (1000Base-T)


Dimensions

  • Product (W x D x H): 101.7 x 33.6 x 55.2 in
  • Shipping: 108.4 x 43.3 x 65.6 in
  • Operating area: 110 x 82.7 i


Weight

  • Product: 644 lb
  • Shipping: 960 lb


Environmental Ranges

  • Operating temperature: 59 to 86°F
  • Operating humidity: 20 to 80% RH (non-condensing)


Acoustics

  • Sound pressure: Printing: 60 dB(A), Idle: 38 dB(A), Sleep: <20 dB(A)
  • Sound power: Printing: 7.8 B(A), Idle: 5.5 B(A), Sleep: <4.0 B(A)


Power

  • Consumption: 1.5–2.5 kW (5 kW peak during printing), 95 W (ready)
  • Requirements: Input voltage (auto-ranging) 200–240 V (±10%) two wires and PE; 50/60 Hz (±3 Hz); two power cords; 13 A max printer power cord; 9 A max curing power cord


Certification

  • Safety: IEC 60950-1+A1+A2, IEC 62368-1, CSA listed, CE compliant, EAC, CCC
  • Electromagnetic: Class A compliant – FCC, ICES, EMC Directive, RCM, VCCI, KCC, CCC
  • Environmental: ENERGY STAR®, RoHS, REACH, EPEAT, OSHA, CE, AgBB, French VOCA+, UL GREENGUARD Gold, UL ECOLOGO
