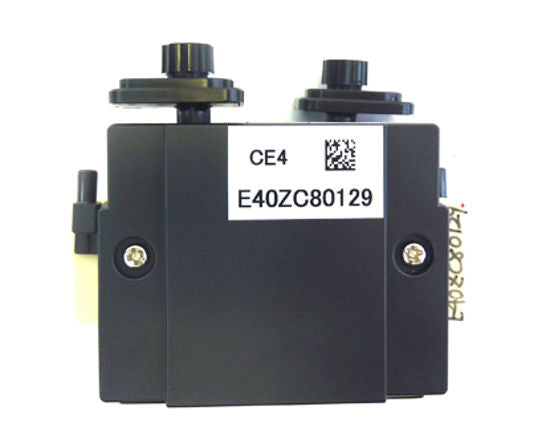

CE4 Printhead Assy for Mimaki JFX/UJF/UJV Series - KX-CE308644CS-CE4

This Printhead Assy is suitable for the Mimaki UJV / JFX / UJF-706 Printers. This is the original Mimaki part (number KX-CE308644CS-Gen4). This part does not include the metallic bracket that can be easily re-used from the previous head. If the metallic bracket also needs to be replaced, part number M008386 should be purchased instead.

We recommend to change the head cables when installing a new printhead.

Product Specifications

• Technology: Multi-drop grayscale micro-piezo
• Grayscale levels: 16
• Active nozzles: 318
• Print swathe width: 53.6 mm
• Nozzle pitch: 169 μm
• Native resolution: 150 dpi
• Printhead weight: 148 g
• Dimensions: 85 x 70 x 23 mm
• Drop volume: 6 - 90 pl
• Typical firing frequency: 2.8 - 28 kHz
• Ink Compatibility: oil-based pigment ink and UV curable pigment ink

Printer compatibility

• Mimaki JFX-1615

• Mimaki JFX-1615Plus

• Mimaki JFX-1631

• Mimaki JFX-1631Plus

• Mimaki UJF-706

• Mimaki UJV-110

• Mimaki UJV-160
