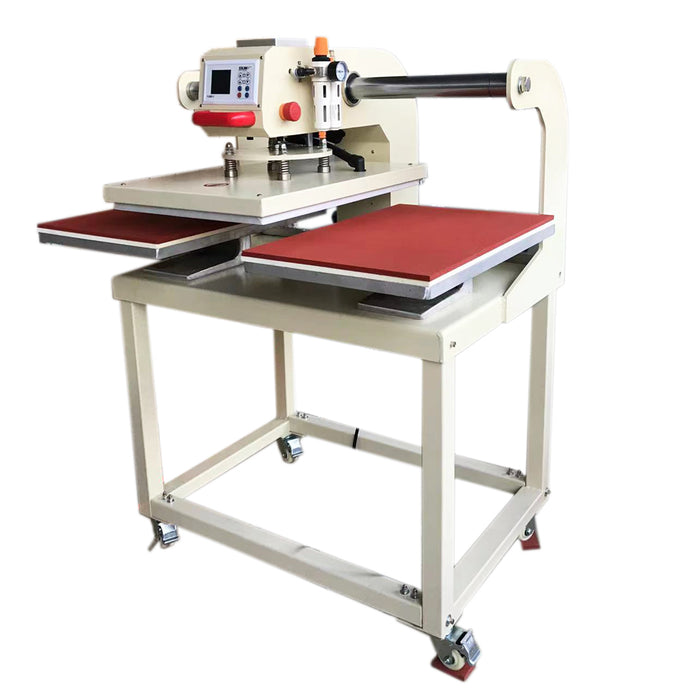

16in x 24in Semi-Automatic Pneumatic Up-Sliding Double Station Heat Press Machine with Laser Positioning System

16in x 24in Semi-Automatic Pneumatic Up-Sliding Double Station Heat Press Machine with Laser Positioning System

by Wide Image Solutions
$1,208.00 - $1,208.00
$1,208.00
$1,208.00 - $1,208.00
$1,208.00

Features:

1.This machine adopts modular control, the touch screen display is more intuitive, and the operation is simple and convenient;
2.Servo motor drive, running speed can be adjusted at will, waiting time setting;
3.It is equipped with infrared positioning device and front pallet, which is convenient and quick, and the U-shaped base can be
overprinted for garments;
4.This machine has multiple safety devices, photoelectric sensor protection, left and right double emergency stop, protective
fence, safe and reliable;
5. Failure prompt, more convenient after-sales.

Specification:

Machine Type:Semi-Automatic, Sliding,2 station
Platen Size:16in x 24in(40cm x 60cm)
Printable Articles: Up to 2in (5cm )Thickness
Air Compressor Required: Yes(13 gallon hold tank)
Voltage: 220V/110V
Power: 4KW
Time Range: 0-999 sec.
Maximum Temp: 482℉(250℃)
Temperature Accuracy: ±5℃
Packing Size:55in x 41.3in x 61in (140cm x 105cm x 155cm)
Gross Weight: 594lbs/270kg (Wooden Package)
