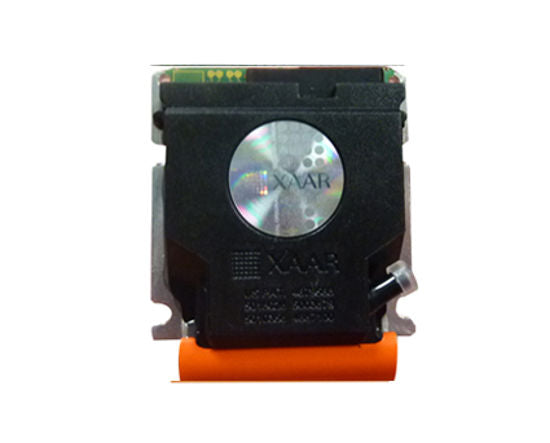

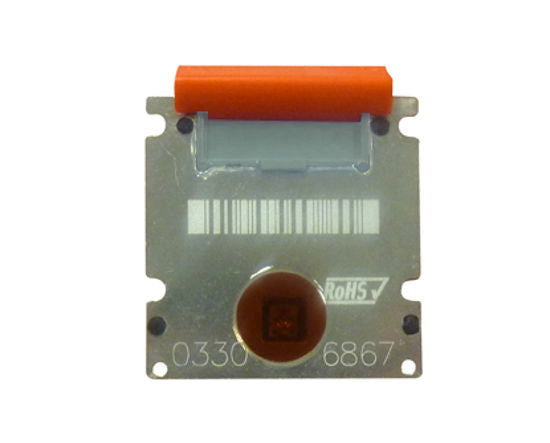

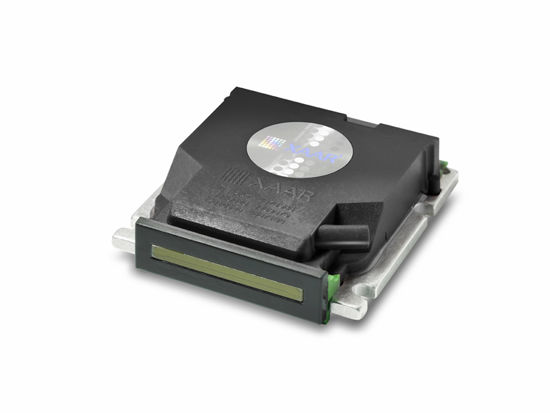

Xaar 128/40W Printhead - XP12800009
- Regular price
-
$424.03 - Regular price
-
- Sale price
-
$424.03
Shipping calculated at checkout.
Couldn't load pickup availability
Tech Specs
Description
inks, the Xaar 128 is extensively used across the coding & marking and wide-format graphics industries. It's a consistent and highly flexible inkjet solution for producing eye-catching marketing media. This is original xaar 128 360dpi 40pl print head. The ink connections on the Xaar 128 and Xaar Irix are 3.1 mm in diameter, therefore the recommendation for the tubing is for 3mm ID tubing. The exact choice of tubing would depend upon the inks you are using.
This Xaar 128/40W replaces Xaar 126/35 & Xaar 126/50 printheads that were discontinued by Xaar.
This Xaar 128/40W replaces Xaar 126/35 & Xaar 126/50 printheads that were discontinued by Xaar.
We recommend to change the head cables when installing a new printhead.
Product Specifications
- Tag: Light grey tag
- Active nozzles: 128
- Print swathe width: 17.4 mm
- Nozzle pitch: 137.1 μm
- Nozzle density: 185 npi
- Drop velocity: 6 m/s
- Printhead weight: 15.5 g
- Dimensions: 37.2 x 40.8 x 11.3 mm
- Drop volume: 40 pl
-
Typical firing frequency: 8.3 kHz
Printer compatibility
- Algotex Rainbow 250
- Algotex Rainbow 325
- Allsign HX3204S
- Allsign HX3208S
- Allsign HX3212S
- Allsign HX3216S
- Aprint 330 Speedy
- Aprint Vinylking 160
- Azon UV 1600 FR
- DGI XP-1804D
- DGI XP-3204T
- Gerber Solara UV2
- Graphtec SignJet JS501
- Graphtec Signjet Pro JS300
- Infiniti Fina160A
- Infiniti Fina180TX
- Infiniti Fina250A
- Infiniti Fina320B
- Infiniti Orasign W-Jet 160+
- Infiniti Orasign W-Jet 180+
- Infiniti Orasign W-Jet 320+
- Rodin 1802
- Rodin 1804
- Signjet 3312 Turbo XL
- Sun Innovations New Drakar
- Sun Innovations New Drakar Pro
- Teckwin TeckStar 18
- Teckwin TeckStar 25
- Yaselan Picasso YSL-D1600FBUV
- Yat Fung Digital Xplorer YF-1232 III
- Yat Fung Digital Xplorer YF-8180 III Plus
- Yat Fung Digital Xplorer YF-8250 III Plus
- Yat Fung Digital Xplorer YF-8320 III
