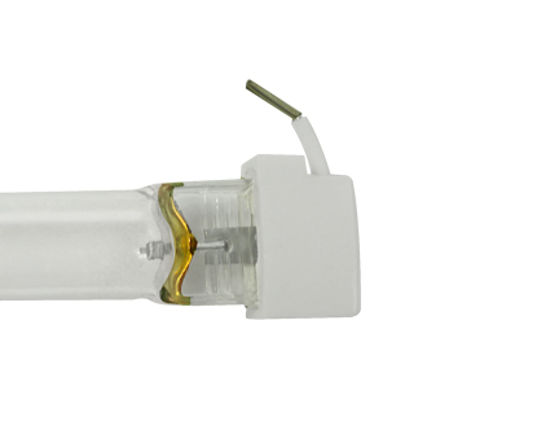

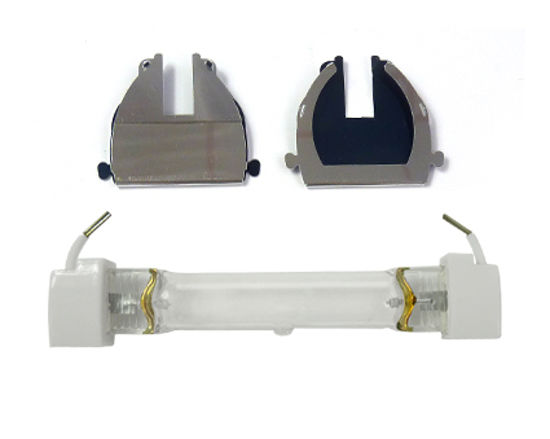

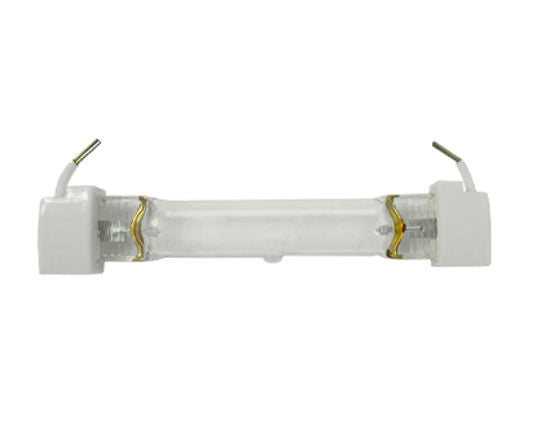

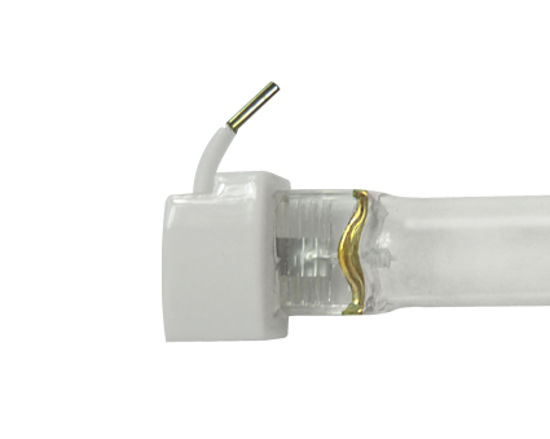

UV Bulb SubZero 085D kit for Dyss Printers

This original manufactured UV Bulb SubZero 085D kit is suitable for Dyss printers. This is the original Dyss bulb kit including the . This UV lamp is also available in a cassette for easy installation.

Designed specifically for inkjet curing applications, the world leading miniature SubZero UV curing system is specifically designed for moving head inkjet printers, the shutter allows the UV exposure to be closed off as the lamp unit moves the media, greatly reducing the risk of reflected UV light causing damage to the expensive printheads.

Detailed research and lengthy cycle testing has enabled a design which offers exceptional service life, eliminating unnecessary downtime and the replacement of worn components. With a total length of 135.73mm, an arc length of 85mm (3.4ins) and power of 100 W/cm2, the SubZero 085H system is ideally suited to medium sized printer applications using 20mm inkjet head. This advanced lamp system represents the most effective, lightweight, high output, miniature UV emitter on the market today.

SubZero Standard Features
• Ultra compact “footprint”
• Ultra light weight
• High intensity reflector system
• Quartz Filter
• Quick change Cassette
• Rapid Warm up and Cool down
• Integrated air-cooling
• High Flex cable up to 15m
• 500 hours Warranty
• 6 months shelf life

SubZero 055 / 085 Compliances
CE/UL 60950-1
ISO CE CB EN60950-1
CE EN 60204
EMC EN 55015
EMC EN 61000

Switch-mode Electronic Power Supply
SubZero 085 204 – 230V 50 / 60Hz
