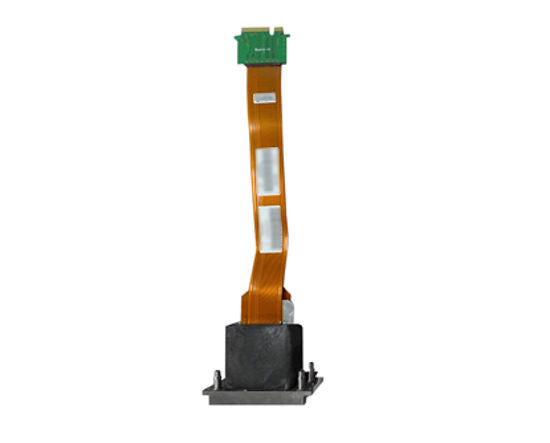

Head 1 Assy for Mimaki TX400-1800D - M011941

$5,327.48
$5,327.48
Shipping calculated at checkout.
    Head 1 Assy for Mimaki TX400-1800D - M011941

    Tech Specs

    Description

    This Head 1 Assy is suitable for Mimaki TX400-1800

    Product Specifications

    • Size: 63 x 63 x 16,2 mm (excluding cables)
    • Head Materials: SST, Ni and Epoxy Adhesive
    • Nozzle Plate Surface: Non-coated SST
    • Number of Nozzles: 2 x 192 nozzles
    • Nozzle Spacing: 0,1693 mm
    • Piezo Type: D33 Stacked PZT
    • Temperature Control: Integrated Heater and Thermistor
    • Operator Temperature range: Up to 60° C
    • Native Drop Volume: 7 pl
    • Drop Volume Range: 5-25 pl with greyscale
    • Jetting Frequency: Up to 30 kHZ
    • Life: 100 billion actuations per nozzle

    Printer compatibility

    • Mimaki TX400-1800B
    • Mimaki TX400-1800D
